Description

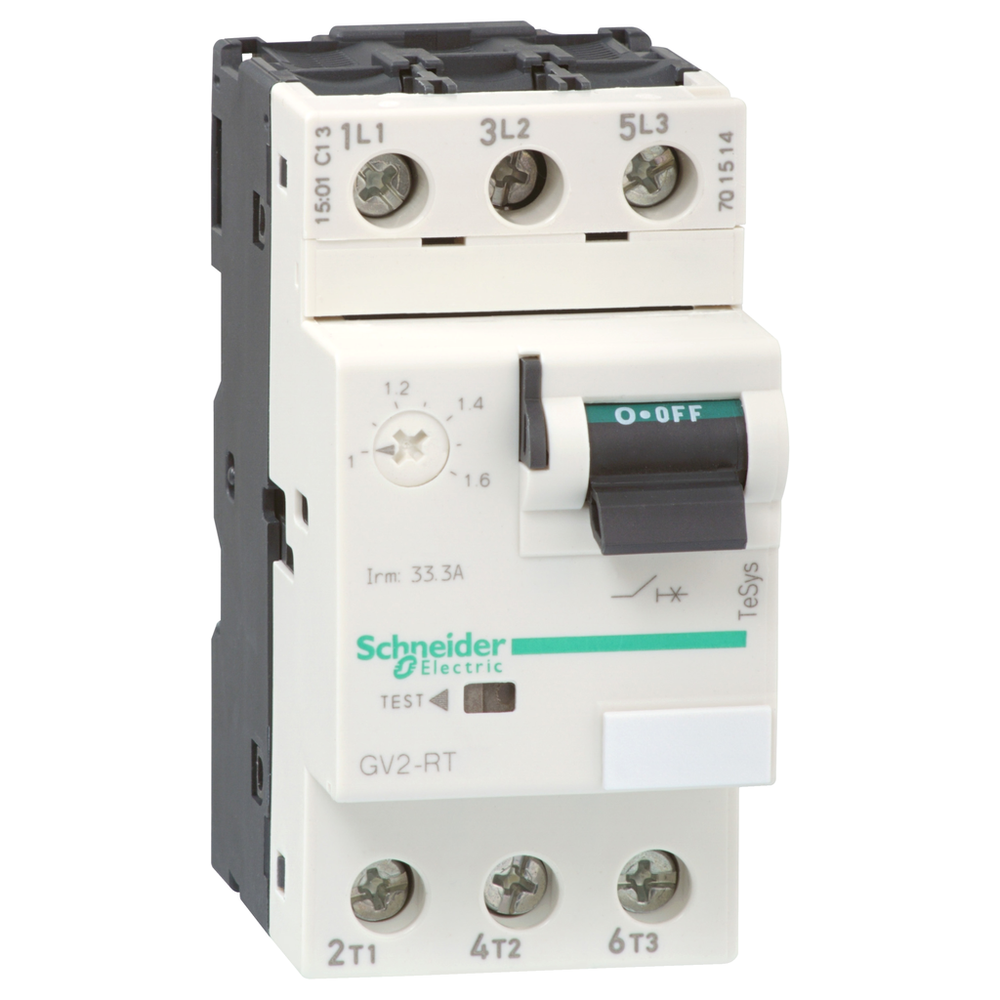

TeSys GV motor circuit breaker, 3 poles (3P), 0.4A/690V, for high starting current peak motor applications 0.06-0.09kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.25-0.40A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).TeSys GV2 Manual Starter and Protector, thermal magnetic circuit protector, toggle switch, 0.25…0.40 A, screw clamp terminals
Schneider Electric GV2RT03 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Control Type
- toggle
- Depth
- 78.5 mm
- Electrical Durability
- 100000 cycles AC-3 415 V In
- Fixing Mode
- 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
- Height
- 89 mm
- [Ith] Conventional Free Air Thermal Current
- 0.4 A IEC 60947-4-1
- Line Rated Current
- 0.4 A
- Magnetic Tripping Current
- 8-8 A
- Mechanical Durability
- 100000 cycles
- Motor Power Kw
- 0.06-0.06 kW 220/230 V AC 50/60 Hz motor protection high peak current || 0.09-0.09 kW 400/415 V AC 50/60 Hz motor protection high peak current || 0.09-0.09 kW 440 V AC 50/60 Hz motor protection high peak current || 0.12-0.12 kW 440 V AC 50/60 Hz motor protection high peak current
- Network Frequency
- 50/60 Hz IEC 60947-4-1
- Network Type
- AC
- Poles Description
- 3P
- Power Dissipation Per Pole
- 2.5 W
- Rated Duty
- continuous IEC 60947-4-1
- Suitability For Isolation
- yes IEC 60947-1 § 7-1-6
- Thermal Protection Adjustment Range
- 0.25-0.4 A IEC 60947-4-1
- Tightening Torque
- 1.7 N.m screw clamp terminal
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Utilisation Category
- category A IEC 60947-2 || AC-3 IEC 60947-4-1
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Climatic Withstand
- IACS E10
- Fire Resistance
- 960 °C IEC 60695-2-11
- Ik Degree Of Protection
- IK04
- Ip Degree Of Protection
- IP20 IEC 60529
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || UKCA
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI121004
- Environmental Disclosure
- ENVPEP121004
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- motor protection || transformer
- Device Short Name
- GV2RT
- Product Name
- TeSys GV2 || TeSys Deca
- Product Or Component Type
- motor circuit breaker
- Range
- TeSys Deca
- Trip Unit Technology
- thermal-magnetic
