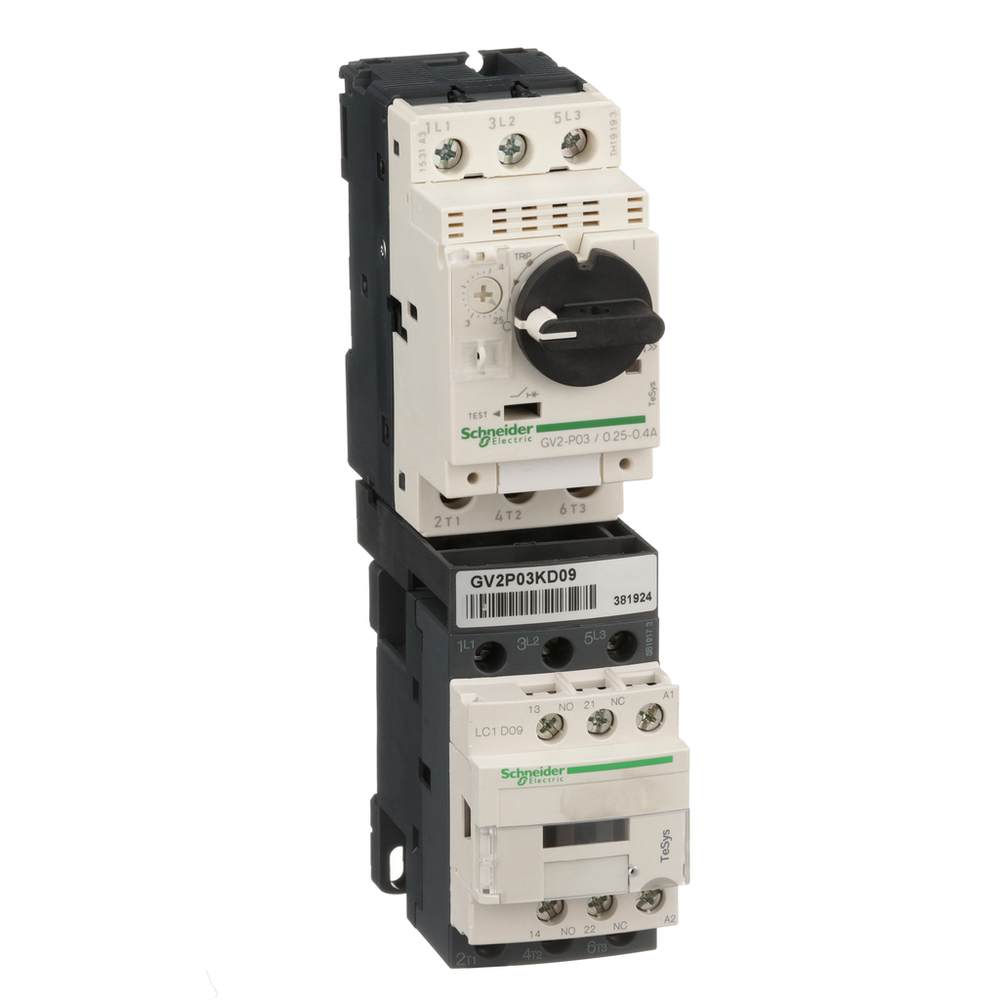

Schneider Electric GV2P03KD09BL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P03 motor starter protector and a LC1D09BL IEC contactor assembled together into one device. The GV2P03 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P03 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 0.25 to 0.40 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.Motor Starter Kit, TeSys, LC1D09BL contactor, GV2P03 motor starter protector, 24 VDC coil, 0.25 to 0.40A trip
Schneider Electric GV2P03KD09BL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Breaking Capacity
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Connections - Terminals
- screw clamp terminals 2 1-6 mm² solid || screw clamp terminals 2 1.5-6 mm² flexible without cable end || screw clamp terminals 2 1-4 mm² flexible with cable end
- Contact Compatibility
- M5
- Contactor Coil Voltage
- 24 V DC low consumption
- Control Circuit Voltage Limits
- drop-out 0.1...0.3 Uc DC 60 °C) || operational 0.8...1.25 Uc DC 60 °C)
- Control Type
- rotary knob
- Direct Connector
- without
- Electrical Durability
- 100000 cycles AC-3 440 V
- Fixing Mode
- 35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
- Hold-In Power Consumption In W
- 2.4-2.4 W 20 °C
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 100 % 690 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2
- Inrush Power In W
- 2.4-2.4 W 20 °C)
- Insulation Resistance
- > 10 MOhm signalling circuit
- [Ith] Conventional Free Air Thermal Current
- 0.4 A IEC 60947-4-1
- Line Rated Current
- 0.4 A
- Magnetic Tripping Current
- 5-5 A
- Maximum Operating Rate
- 25 cyc/h
- Mechanical Durability
- 100000 cycles
- Minimum Switching Current
- 5 mA signalling circuit
- Minimum Switching Voltage
- 17 V signalling circuit
- Motor Power Kw
- 0.09-0.09 kW 400/415 V AC 50/60 Hz
- Motor Starter Type
- direct on-line contactor
- Network Frequency
- 50/60 Hz IEC 60947-4-1
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Operating Position
- any position
- Power Dissipation Per Pole
- 2.5 W
- Power Range
- 1.1-2 kW 200-240 V 3 phase || 2.2-3 kW 380-440 V 3 phase || 4-6 kW 380-440 V 3 phase || 4-6 kW 480-500 V 3 phase
- Rated Duty
- continuous IEC 60947-4-1
- Signalling Circuit Frequency
- 25...400 Hz
- Tightening Torque
- 1.7 N.m screw clamp terminals
- Time Constant
- 40 ms
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Utilisation Category
- AC-3 IEC 60947-4-1 || category A IEC 60947-2
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- -60-80 °C
- Climatic Withstand
- IACS E10
- Depth
- 95 mm
- 97 mm
- Fire Resistance
- 850 °C IEC 60695-2-1
- Flame Retardance
- V1 conforming to UL 94
- Height
- 77 mm
- 89 mm
- Ik Degree Of Protection
- IK04
- Ip Degree Of Protection
- IP20 IEC 60529
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Net Weight
- 0.48 kg
- Operating Altitude
- 6561.68 ft (2000 m)
- 9842.52 ft (3000 m) without derating
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
- Pollution Degree
- 3
- Product Certifications
- EZU || ATEX || EAC || UL || TSE || CCC || RINA || LROS (Lloyds register of shipping) || BV || GL || CSA || UL 508 type E || DNV
- Protective Treatment
- TH
- Standards
- NF C 63-120 || IEC 60947-4-1 || NF C 79-130 || IEC 60947-2 || NF C 63-650 || CSA C22.2 || VDE 0113 || VDE 0660 || EN 60204 || IEC 60947-1 || UL 508
- Width
- 45 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Associated Fuse Rating
- 10 A gG signalling circuit IEC 60947-5-1 || 25 A gG <= 690 V type 1 power circuit || 20 A gG <= 690 V type 2 power circuit
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Average Impedance
- 2.5 mOhm - Ith 25 A 50 Hz power circuit
- Connections - Terminals
- power circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || power circuit screw clamp terminals 1 1-4 mm²solid without cable end || power circuit screw clamp terminals 2 1-4 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end
- Contactor Application
- resistive load || motor control
- Control Circuit Type
- DC low consumption
- Electrical Durability
- 0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V
- [Icw] Rated Short-Time Withstand Current
- 105 A 40 °C - 10 s power circuit || 210 A 40 °C - 1 s power circuit || 30 A 40 °C - 10 min power circuit || 61 A 40 °C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
- [Ie] Rated Operational Current
- 9 A 60 °C) <= 440 V AC AC-3 power circuit || 25 A 60 °C) <= 440 V AC AC-1 power circuit
- Irms Rated Making Capacity
- 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 25 A 60 °C power circuit || 10 A 60 °C signalling circuit
- Maximum Horse Power Rating
- 1 hp 230/240 V at AC 50/60 Hz for 1 phase || 2 hp 200/208 V at AC 50/60 Hz for 3 phase || 2 hp 230/240 V at AC 50/60 Hz for 3 phase || 5 hp 460/480 V at AC 50/60 Hz for 3 phase || 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase || 0.33 hp 115 V at AC 50/60 Hz for 1 phase
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 30 Mcycles
- Motor Power Kw
- 2.2 kW 220...230 V AC 50/60 Hz AC-3) || 4 kW 380...400 V AC 50/60 Hz AC-3) || 4 kW 415...440 V AC 50/60 Hz AC-3) || 5.5 kW 500 V AC 50/60 Hz AC-3) || 5.5 kW 660...690 V AC 50/60 Hz AC-3) || 2.2 kW 400 V AC 50/60 Hz AC-4)
- Mounting Support
- plate || rail
- Operating Time
- 65.45...88.55 ms closing || 20...30 ms opening
- Overvoltage Category
- III
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Pole Contact Composition
- 3 NO
- Poles Description
- 3P
- Power Dissipation Per Pole
- 1.56 W AC-1 || 0.2 W AC-3
- Product Certifications
- GL || UL || LROS (Lloyds register of shipping) || CCC || RINA || BV || GOST || DNV || CSA
- Product Or Component Type
- motor starter
- Protective Cover
- with
- Range
- TeSys
- Rated Breaking Capacity
- 250 A 440 V power circuit IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
- Suitability For Isolation
- yes IEC 60947-1
- Tightening Torque
- power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2
- Trip Unit Rating
- 0.25-0.4 A
- Trip Unit Technology
- thermal-magnetic
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
- Utilisation Category
- AC-3 || AC-1 || AC-4
