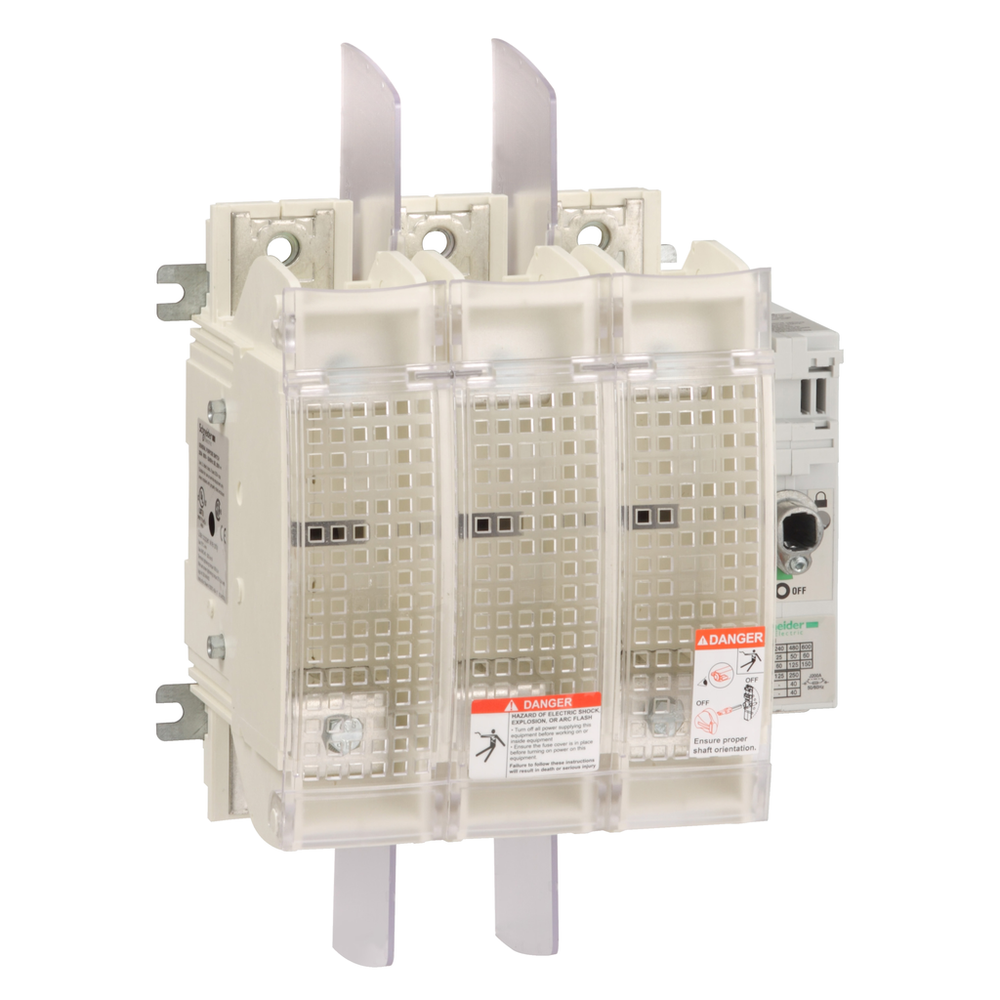

Schneider Electric GS2MU3N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with class J fuse links up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).Switch disconnector fuse, TeSys GS, 3P, 200A, fuse type UL, size J
Schneider Electric GS2MU3N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 1600 A 400 V
- Connections - Terminals
- power circuit lugs-ring terminals 16-152 mm²
- Electrical Durability
- 6000 cycles
- [Icm] Rated Short-Circuit Making Capacity
- 2 kA 400 V
- Mechanical Durability
- 10000 cycles
- Mounting Support
- plate
- Rated Operational Power In W
- 100 kW 400 V || 140 kW 500 V || 185 kW 690 V
- Short-Circuit Withstand
- 200 kA
- Tightening Torque
- power circuit 8.5-8.5 N.m
- Type Of Operating Handle
- external frontal
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 750 V
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Depth
- 130 mm
- Fire Resistance
- 960 °C body
- Height
- 195 mm
- Ip Degree Of Protection
- IP20 IEC 60529 with terminal cover)
- Standards
- UL98 || CSA C22.2 No 4
- Width
- 196.2 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2003007EN
- Environmental Disclosure
- ENVPEP2003007EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Contacts Type And Composition
- 3 NO
- Device Application
- protection
- Device Short Name
- GS2MU
- Fuse Size
- J
- Fuse Type
- UL
- [Ie] Rated Operational Current
- 200 A
- [Ith] Conventional Free Air Thermal Current
- 200 A 40 °C
- Network Frequency
- 50/60 Hz
- Network Type
- DC || AC
- Poles Description
- 3P
- Product Name
- TeSys GS
- Product Or Component Type
- switch-disconnector-fuse
- Protected Poles Description
- 3t
- Range
- TeSys
