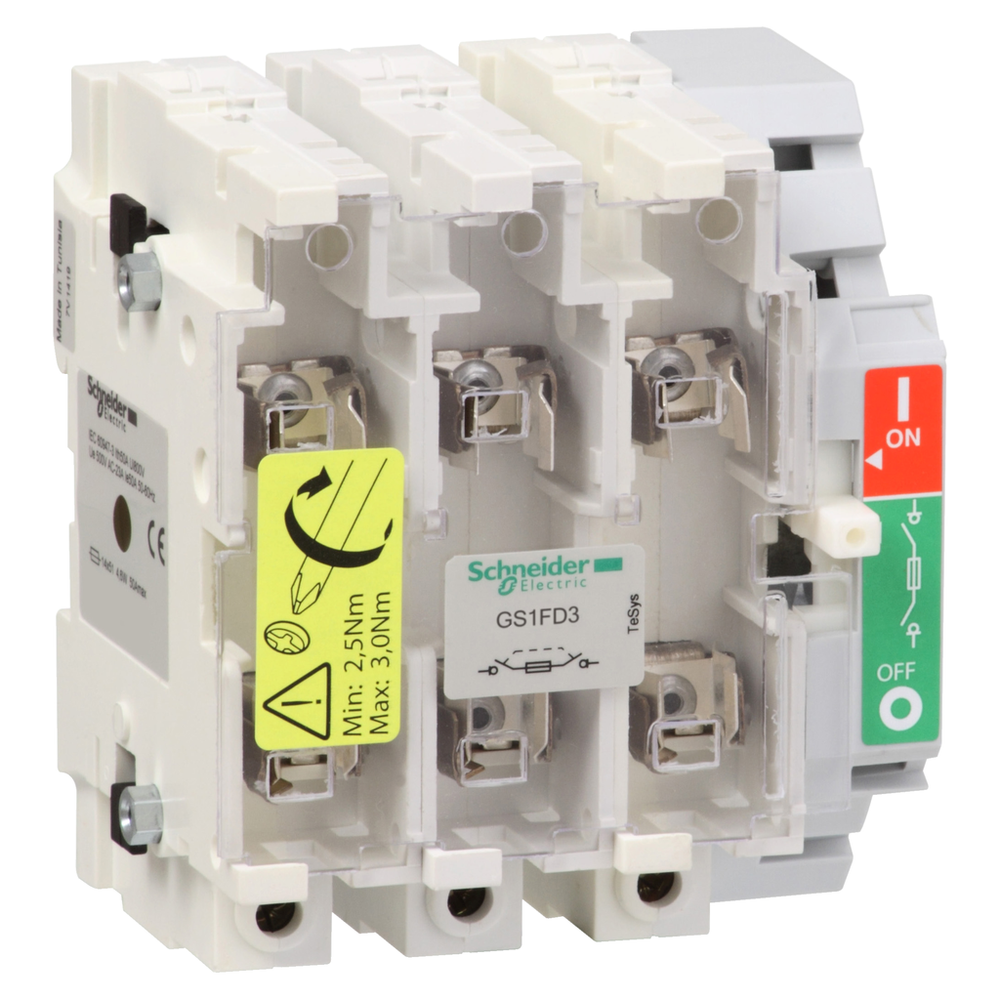

Schneider Electric GS1FD3
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 50A/750V, to be used with NFC cylindrical fuse links size 14x51mm up to 50A, for motor applications up to 25kW@400V AC-23. To be equipped with a direct operating handle GS1AH01 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2F. It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 14x51mm cylindrical fuse links without strickers DF2EA, DF2EN and with strickers DF3EA, DF3EN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).Switch disconnector fuse, TeSys GS, 3P, 3NO, 50A, 4.6W, fuse type NFC, size 14x51mm
Schneider Electric GS1FD3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 4.6 W
- 400 A 400 V AC-23B)
- Connections - Terminals
- power circuit lugs-ring terminals 6-25 mm² flexible
- Electrical Durability
- 1500 cycles AC-23A || 1500 cycles AC-23B || 300 cycles DC-23A || 300 cycles DC-23B
- [Icm] Rated Short-Circuit Making Capacity
- 100 kA 400 V with protection by gG fuses
- Making Capacity
- 500 A 400 V AC-23B
- Mechanical Durability
- 10000 cycles
- Mounting Support
- plate
- Rated Operational Power In W
- 25 kW 400 V || 33 kW 500 V || 45 kW 690 V
- Short-Circuit Withstand
- 7.6 kA
- Tightening Torque
- power circuit 3.2-3.2 N.m lugs-ring terminals
- Type Of Operating Handle
- direct right side
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 750 V AC 50/60 Hz
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Depth
- 87 mm
- Fire Resistance
- 850 °C fuse cover IEC 60695-2-1 || 960 °C body IEC 60695-2-1
- Height
- 118 mm
- Ip Degree Of Protection
- IP20 IEC 60529 with terminal cover)
- Net Weight
- 0.8 kg
- Product Certifications
- CE
- Protective Treatment
- TH
- Standards
- IEC 60947-3
- Width
- 118 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2003007EN
- Environmental Disclosure
- ENVPEP2003007EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 3 NO
- Device Application
- protection
- Device Short Name
- GS1 F
- Fuse Size
- 14 x 51 mm
- Fuse Type
- NFC
- [Ie] Rated Operational Current
- 40 A 440 V 2 poles in series per phase DC-23A || 40 A 440 V 2 poles in series per phase DC-23B || 50 A 400 V AC-23A || 50 A 400 V AC-23B || 50 A 500 V AC-23A || 50 A 500 V AC-23B || 50 A 690 V AC-23A || 50 A 690 V AC-23B
- [Ith] Conventional Free Air Thermal Current
- 50 A 40 °C
- Network Frequency
- 50/60 Hz
- Network Type
- DC || AC
- Poles Description
- 3P
- Product Name
- TeSys GS
- Product Or Component Type
- switch-disconnector-fuse
- Protected Poles Description
- 3t
- Range
- TeSys
