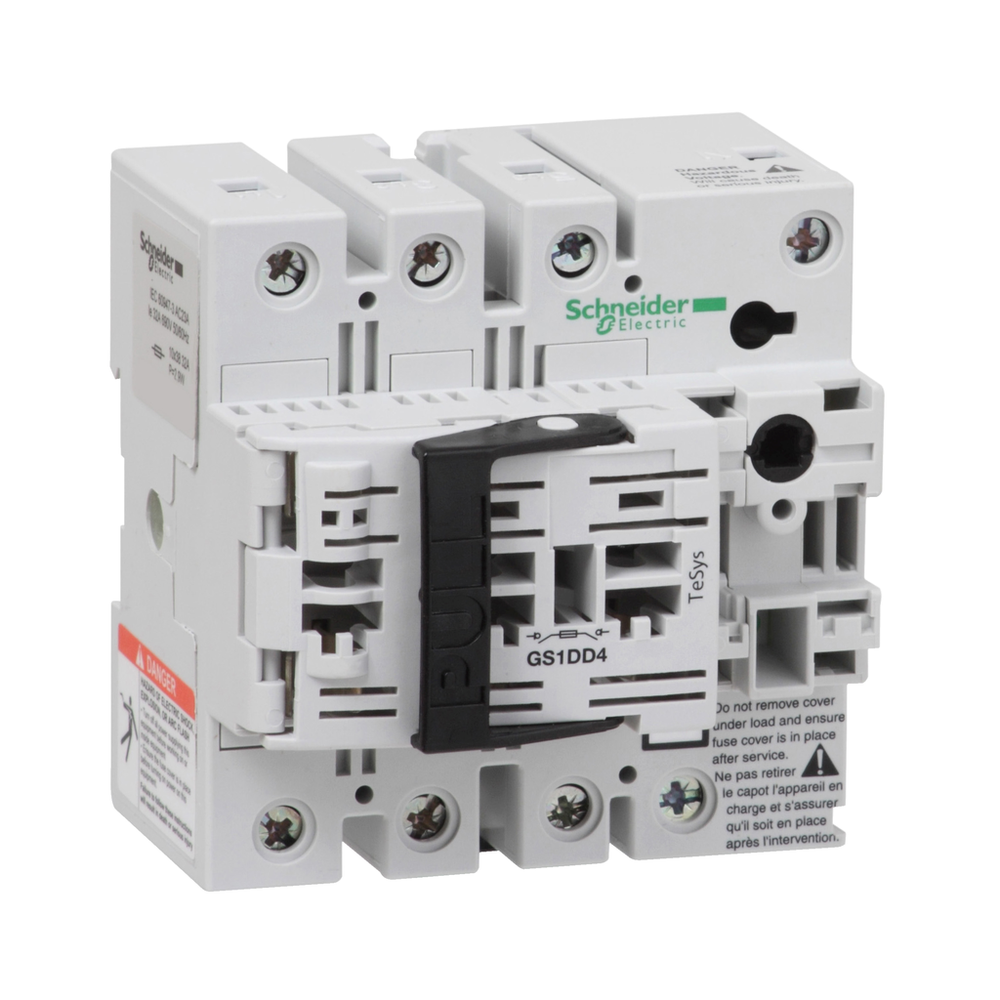

Schneider Electric GS1DD4
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GS fuse switch-disconnector, 4 poles (3P+N), 32A/800V, to be used with NFC cylindrical fuse links size 10x38mm up to 32A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH103 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Type aM and gG 10x38mm cylindrical fuse links without strickers DF2CA, DF2CN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).Switch disconnector fuse, TeSys GS, 3P + N, 4NO, 32A, fuse type NFC, size 10x38mm
Schneider Electric GS1DD4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 256 A 400 V AC-23B)
- Connections - Terminals
- power circuit screw-clamp terminals 2.5-16 mm² flexible
- Electrical Durability
- 1500 cycles AC-23A || 1500 cycles AC-23B || 300 cycles DC-23A || 300 cycles DC-23B
- [Icm] Rated Short-Circuit Making Capacity
- 100 kA 400 V with protection by gG fuses
- Making Capacity
- 320 A 400 V AC-23B
- Mechanical Durability
- 20000 cycles
- Mounting Support
- plate || rail
- Rated Operational Power In W
- 15 kW 400 V || 18.5 kW 500 V || 25 kW 690 V
- Short-Circuit Withstand
- 5.5 kA
- Tightening Torque
- power circuit 3-3 N.m screw-clamp terminals
- Type Of Operating Handle
- external frontal || external left side || direct frontal || external right side
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 800 V AC 50/60 Hz
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Depth
- 112 mm
- Fire Resistance
- 960 °C body IEC 60695-2-1
- Height
- 98 mm
- Ip Degree Of Protection
- IP20 IEC 60529 with terminal cover)
- Net Weight
- 0.5 kg
- Product Certifications
- CE
- Protective Treatment
- TH
- Standards
- IEC 60947-3
- Width
- 96 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2003008EN
- Environmental Disclosure
- ENVPEP2003008EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 4 NO
- Device Application
- protection
- Device Short Name
- GS1 DD
- Fuse Size
- 10 x 38 mm
- Fuse Type
- NFC
- [Ie] Rated Operational Current
- 20 A 440 V 2 poles in series per phase DC-23A || 20 A 440 V 2 poles in series per phase DC-23B || 32 A 400 V AC-23A || 32 A 400 V AC-23B || 32 A 500 V AC-23A || 32 A 500 V AC-23B || 32 A 690 V AC-23A || 32 A 690 V AC-23B
- [Ith] Conventional Free Air Thermal Current
- 32 A 40 °C
- Network Frequency
- 50/60 Hz
- Network Type
- DC || AC
- Poles Description
- 3P + Nc
- Product Name
- TeSys GS
- Product Or Component Type
- switch-disconnector-fuse
- Protected Poles Description
- 3t
- Range
- TeSys
