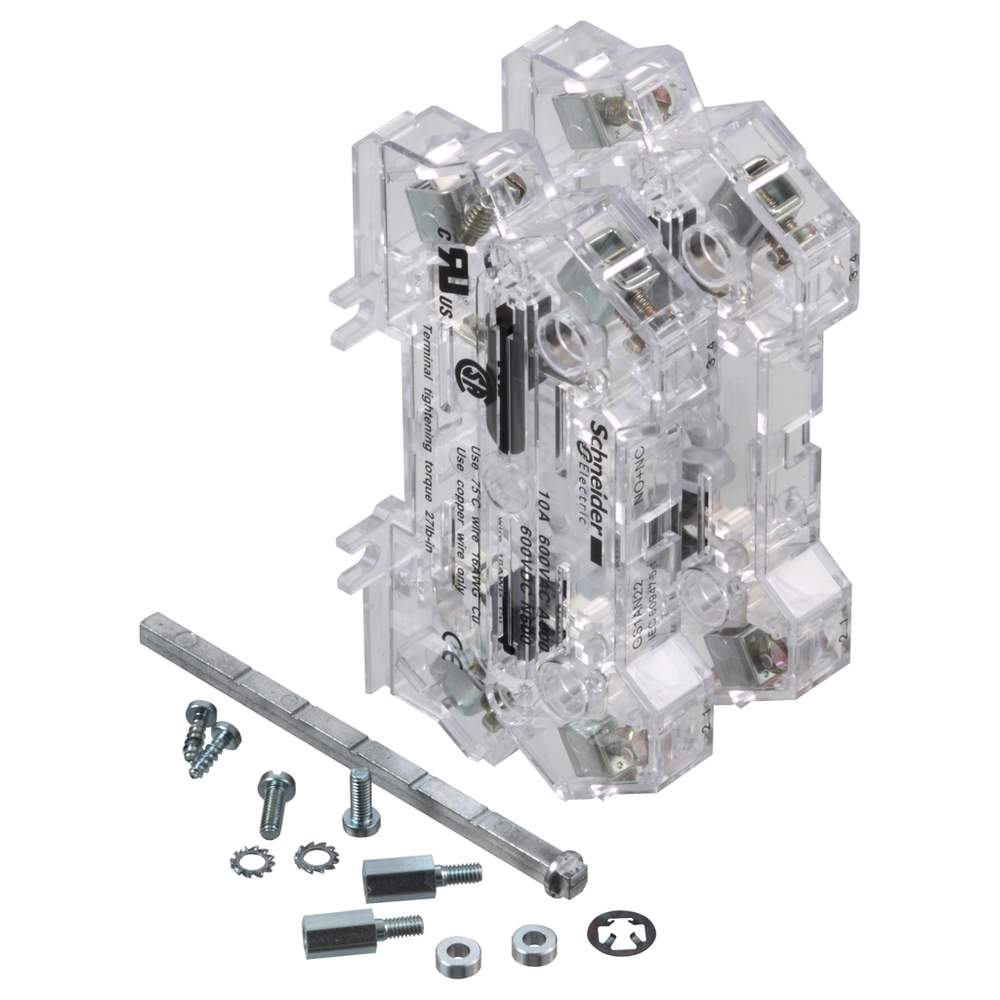

Schneider Electric GS1AN22
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
Schneider Electric GS1AN22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Durability
- 30000 cycles AC-15
- Fuse Type
- DIN || NFC || BS
- Line Rated Current
- 200 A || 60 A || 600 A || 630 A || 315 A || 400 A || 800 A || 250 A || 125 A || 1250 A || 160 A || 50 A || 63 A || 100 A
- Mechanical Durability
- 30000 cycles
- Net Weight
- 0.238 kg
- Range Compatibility
- TeSys (TeSys GS) fuse-switch disconnector
- Type Of Operating Handle
- direct frontal || external frontal || direct right side || external right side
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2003007EN
- Environmental Disclosure
- ENVPEP2003007EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Contact Application
- O and I position signalling
- Contact Operation
- instantaneous
- Contacts Type And Composition
- 2 NO + 2 NC
- Device Short Name
- GS1AN
- [Ie] Rated Operational Current
- 1 A 220 V DC-13 || 10 A 230 V AC-15 || 12 A 127 V AC-15 || 4 A 48 V DC-13 || 6 A 440 V AC-15 || 8 A 400/415 V AC-15 || 1.2 A 110 V DC-13
- [Ith] Conventional Free Air Thermal Current
- 20 A 40 °C
- Product Or Component Type
- auxiliary contact
- Range Of Product
- TeSys
