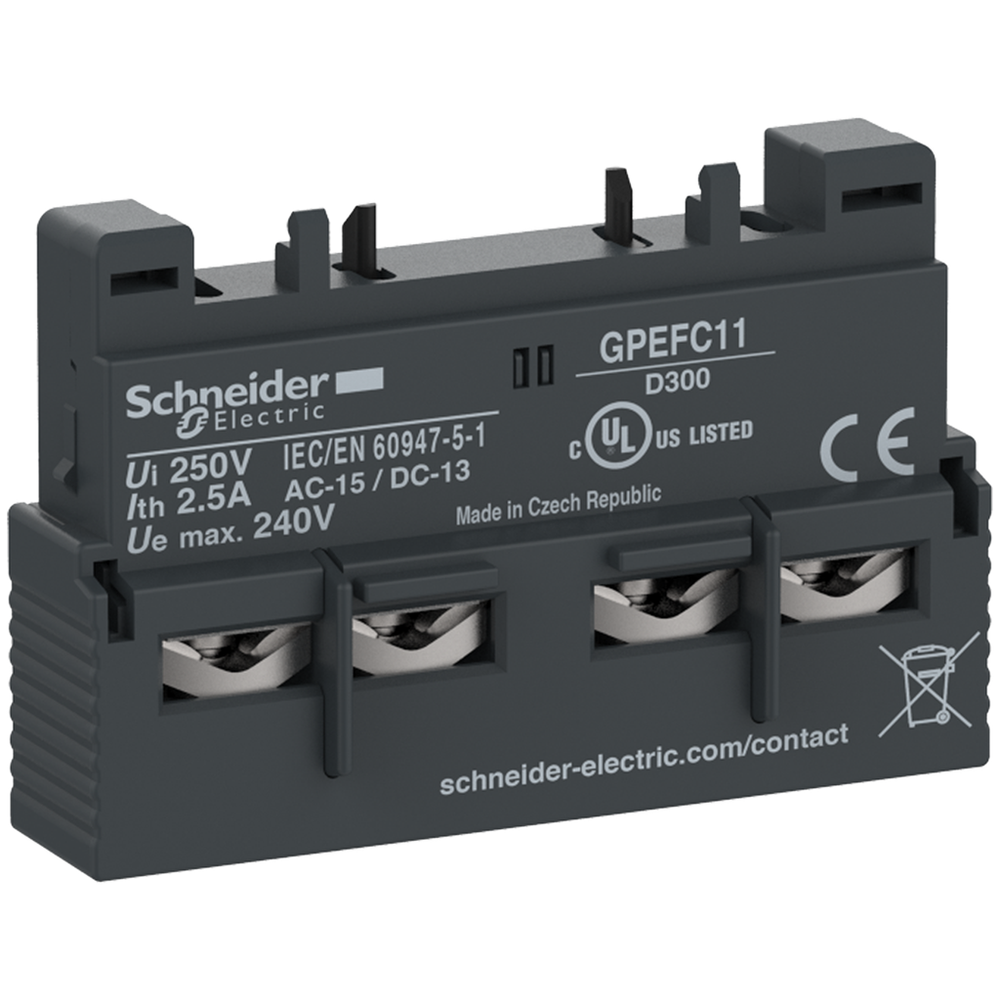

Schneider Electric GPEFC11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Easy TeSys GP2E auxiliary contact. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (CSA, UL), Green Premium compliant (RoHS/REACh).Auxiliary contact block,Easy TeSys GP2E,1NO+1NC
Schneider Electric GPEFC11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 29 mm
- Height
- 11 mm
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- Mechanical Durability
- 100000 cycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Net Weight
- 0.02 kg
- Protection Type
- gG fuse 10 A || GB2CB06 circuit breaker 10 A
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles || 120 VA 230-240 V AC-15 100000 cycles || 48 VA 24-24 V AC-15 100000 cycles || 60 VA 48-48 V AC-15 100000 cycles
- Rated Operational Power In W
- 15 W 48 V DC-13 100000 cycles || 24 W 24 V DC-13 100000 cycles || 9 W 60 V DC-13 100000 cycles
- Tightening Torque
- 1.4 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 24...240 V AC || 24...60 V DC
- [Ui] Rated Insulation Voltage
- 300 V UL 60947-4-1 || 300 V cUL || 250 V IEC 60947-1
- Width
- 45 mm
Environment
- Environmental Characteristic
- normal environment
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2207006
- Environmental Disclosure
- ENVPEP2207006
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Connections - Terminals
- screw clamp terminals1 1-2.5 mm² - solid || screw clamp terminals2 1-2.5 mm² - solid || screw clamp terminals1 0.75-2.5 mm² - flexible without cable end || screw clamp terminals2 0.75-2.5 mm² - flexible without cable end || screw clamp terminals1 0.75-1.5 mm² - flexible with cable end
- Device Short Name
- GPEFC
- Mounting Location
- front side
- Pole Contact Composition
- 1 NO + 1 NC
- Product Or Component Type
- auxiliary contact block
- Quantity Per Set
- set of 10
- Range
- Easy TeSys
