Schneider Electric GP2E22
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

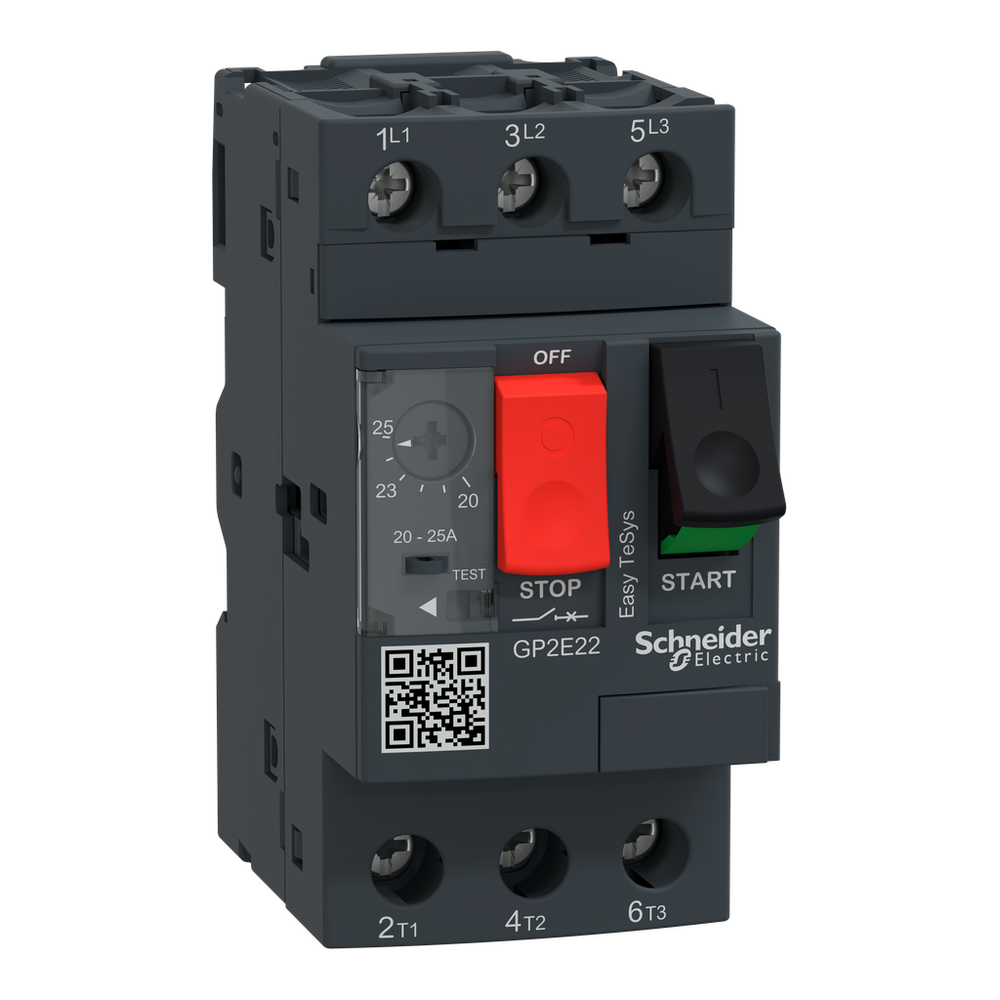

Easy TeSys manual motor controller, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL), Green Premium compliant (RoHS/REACh).Manual motor controller,Easy TeSys GP2E,3P,20-25A,thermal magnetic,screw clamp terminals
Schneider Electric GP2E22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Connections - Terminals
- screw clamp terminals 1-6 mm² - solid || screw clamp terminals 1.5-6 mm² - flexible without cable end || screw clamp terminals 1-4 mm² - flexible with cable end || screw clamp terminals AWG 18...AWG 8)
- Control Type
- push-button
- Depth
- 78.5 mm
- Electrical Durability
- 100000 cycles AC-3 440 V
- Fixing Mode
- 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
- Height
- 89 mm
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 40 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2
- [Ith] Conventional Free Air Thermal Current
- 25 A IEC 60947-4-1
- Line Rated Current
- 25 A
- Magnetic Tripping Current
- 327-327 A
- Maximum Operating Rate
- 25 cyc/h
- Mechanical Durability
- 100000 cycles
- Net Weight
- 0.26 kg
- Network Frequency
- 50/60 Hz IEC 60947-4-1
- Network Type
- AC
- Operating Position
- any position
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Poles Description
- 3P
- Power Dissipation Per Pole
- 2.5 W
- Rated Duty
- continuous IEC 60947-4-1
- Suitability For Isolation
- yes IEC 60947-1
- Tightening Torque
- 1.7 N.m screw clamp terminals
- Trip Unit Rating
- 20-25 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Utilisation Category
- AC-3 IEC 60947-4-1 || category A IEC 60947-2
- Width
- 45 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ik Degree Of Protection
- IK04
- Ip Degree Of Protection
- IP20 IEC 60529
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- cUL
- Protective Treatment
- TH
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || cUL
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI121004
- Environmental Disclosure
- ENVPEP121004
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- motor
- Device Short Name
- GP2E
- Product Name
- Easy TeSys GP2E
- Product Or Component Type
- motor controller
- Range
- Easy TeSys
- Trip Unit Technology
- thermal-magnetic
