Description

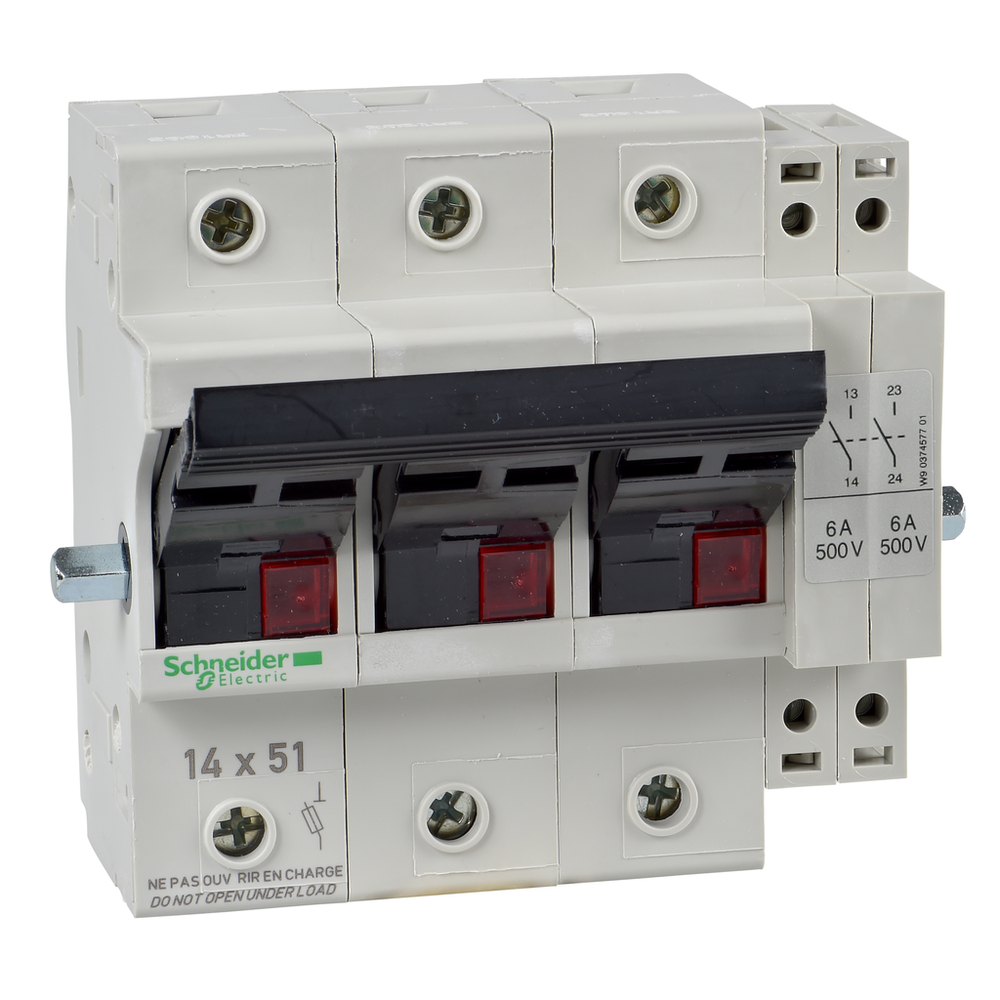

TeSys GK fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 50A/690V. To be used with 14x51mm fuse links up to 50A. It provides a front handle, 1NO early break auxiliary contact. It can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (tubular links for Neutral, side handle operators, padlocking devices) are available (to be ordered separately). Multi standards certified (IEC, EN, Marine), it conforms to RoHS/REACh regulation.Fuse disconnector, TeSys DF, 3P, 690VAC, 50A, fuse size 14 x 51mm, 1 NO early break, without single phase prot
Schneider Electric GK1EK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- power circuit connector 1 2.5-25 mm²solid || power circuit connector 1 2.5-25 mm²flexible without cable end || power circuit connector 1 2.5-16 mm²flexible with cable end
- Contacts Type And Composition
- 1 NO early-break
- Control Type
- toggle
- Fuse Size
- 14 x 51 mm
- Fuse Type
- gG || aM
- [Ie] Rated Operational Current
- 50 Apower circuit || 6 Asignalling circuit
- Mounting Position
- vertical +/- 23°)
- Mounting Support
- rail
- Tightening Torque
- 2 N.m power circuit connector
- [Ue] Rated Operational Voltage
- power circuit 690 V AC || signalling circuit 500 V AC || signalling circuit 440 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -50-70 °C
- Depth
- 89.5 mm
- Height
- 97 mm
- Ip Degree Of Protection
- IP20
- Net Weight
- 0.43 kg
- Protective Treatment
- TC
- Standards
- IEC 60947-3
- Width
- 88 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- GK1 E
- Poles Description
- 3P
- Product Name
- TeSys GK1
- Product Or Component Type
- fuse-disconnector
- Range
- TeSys
