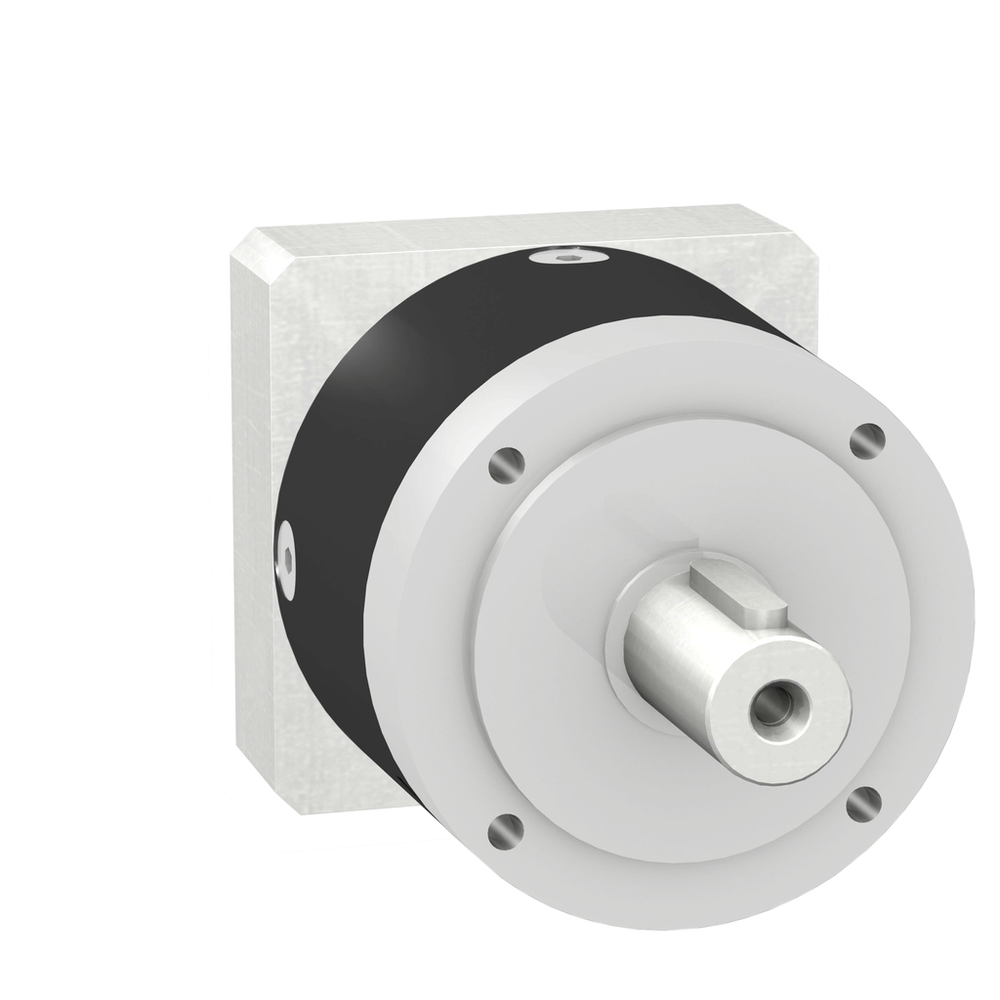

Schneider Electric GBX1600161403F
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
gearbox with straight teeth GBX- Ø 160 mm- reduction 16:1- < 10arcmin- 800 N.m
Schneider Electric GBX1600161403F is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Additional Information
- lubricated for life
- Continuous Output Torque
- 800 N.m 100 rpm 30 °C
- Efficiency
- 94 %
- Housing Colour
- black
- Housing Material
- black anodized aluminium
- Maximum Axial Force Fa
- 6000 N 100 rpm, during 30000 hour at 30°C || 8000 N 100 rpm, during 10000 hour at 30°C
- Maximum Output Torque
- 1280 N.m 100 rpm 30 °C
- Maximum Radial Force Fr
- 4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C || 6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C
- Maximum Torsional Backlash
- 10 arc.min
- Mounting Position
- any position
- Net Weight
- 22 kg
- Service Life In Hours
- 30000 h 100 rpm 30 °C
- Shaft Material
- C 45
- Shaft Moment Of Inertia
- 7.47 g.cm²
- Torsional Rigidity
- 41 N.m/arcmin
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-90 °C
- Ip Degree Of Protection
- shaft output IP54
- Noise Level
- 70 dB 1 m, no-load
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111245EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- GBX
- Gearbox External Diameter
- 160 mm
- Gear Box Type
- straight teeth
- Product Compatibility
- SH3 || MH3 || ILM
- Product Or Component Type
- planetary gearbox
- Range Compatibility
- Lexium 52 || Lexium 62 ILM || Lexium 32 || Lexium 62 || Lexium 15
- Reduction Ratio
- 16:1
