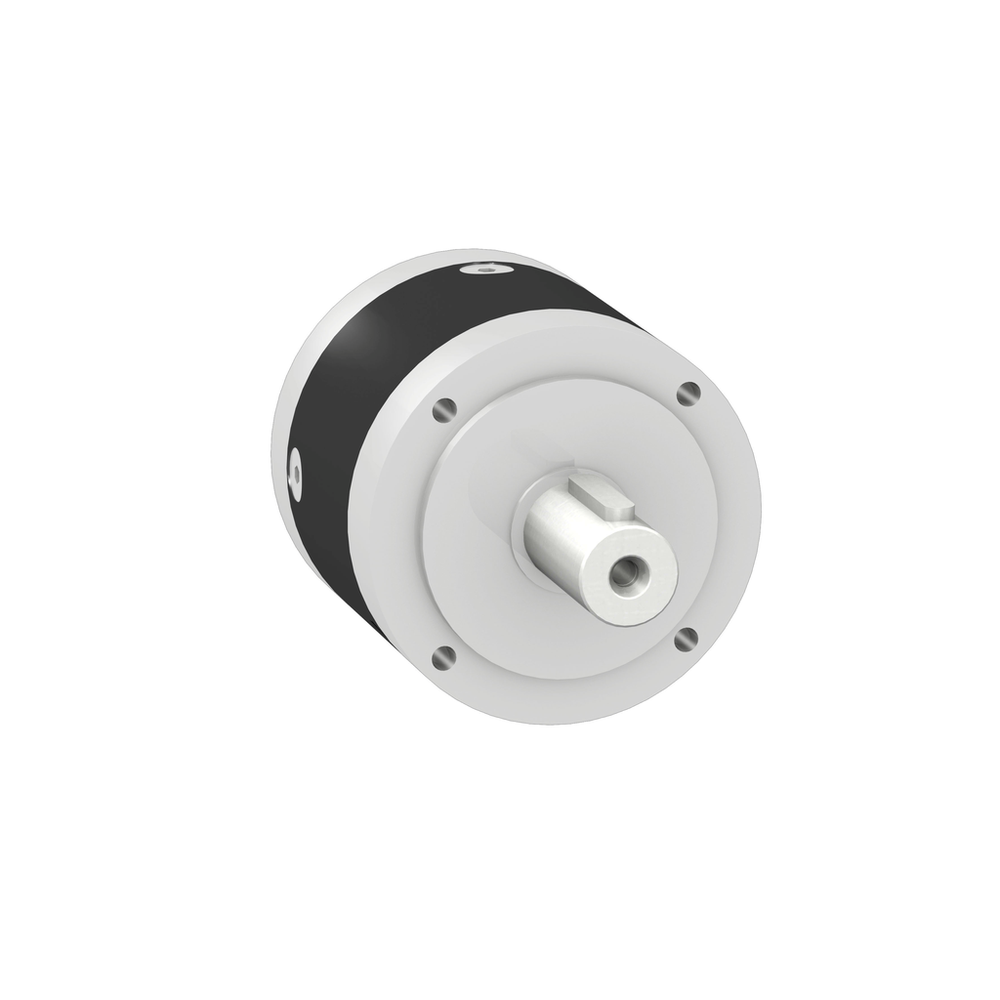

Schneider Electric GBX120010K

Complementary

• Additional Information
  • lubricated for life
• Continuous Output Torque
  • 95 N.m 100 rpm 30 °C
• Efficiency
  • 96 %
• Housing Colour
  • black
• Housing Material
  • black anodized aluminium
• Internal Diameter
  • 24.0 mm
• Maximum Axial Force Fa
  • 2100 N 100 rpm, during 30000 hour at 30°C
• Maximum Output Torque
  • 152 N.m 100 rpm 30 °C
• Maximum Radial Force Fr
  • 1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
• Maximum Torsional Backlash
  • 7 arc.min
• Mounting Position
  • any position
• Net Weight
  • 6 kg
• Service Life In Hours
  • 30000 h 100 rpm 30 °C
• Shaft Material
  • C 45
• Shaft Moment Of Inertia
  • 1.3 kg.cm²
• Torsional Rigidity
  • 12 N.m/arcmin

Environment

• Ambient Air Temperature For Operation
  • -25-90 °C
• Ip Degree Of Protection
  • shaft output IP54
• Noise Level
  • 65 dB 1 m, no-load

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes

Specifications

• Device Short Name
  • GBX
• Gearbox External Diameter
  • 120 mm
• Gear Box Type
  • straight teeth
• Product Compatibility
  • BMH 100 mm, 3 || BSH 100 mm, 1 || BSH 100 mm, 3 || BCH2 100 mm, 1 || BCH2 130 mm, 1 || SH3 || MH3 || ILM
• Product Or Component Type
  • planetary gearbox
• Range Compatibility
  • Lexium 32 || Lexium 62 || Lexium 28 || Lexium 62 ILM || Lexium 52
• Reduction Ratio
  • 10:1
