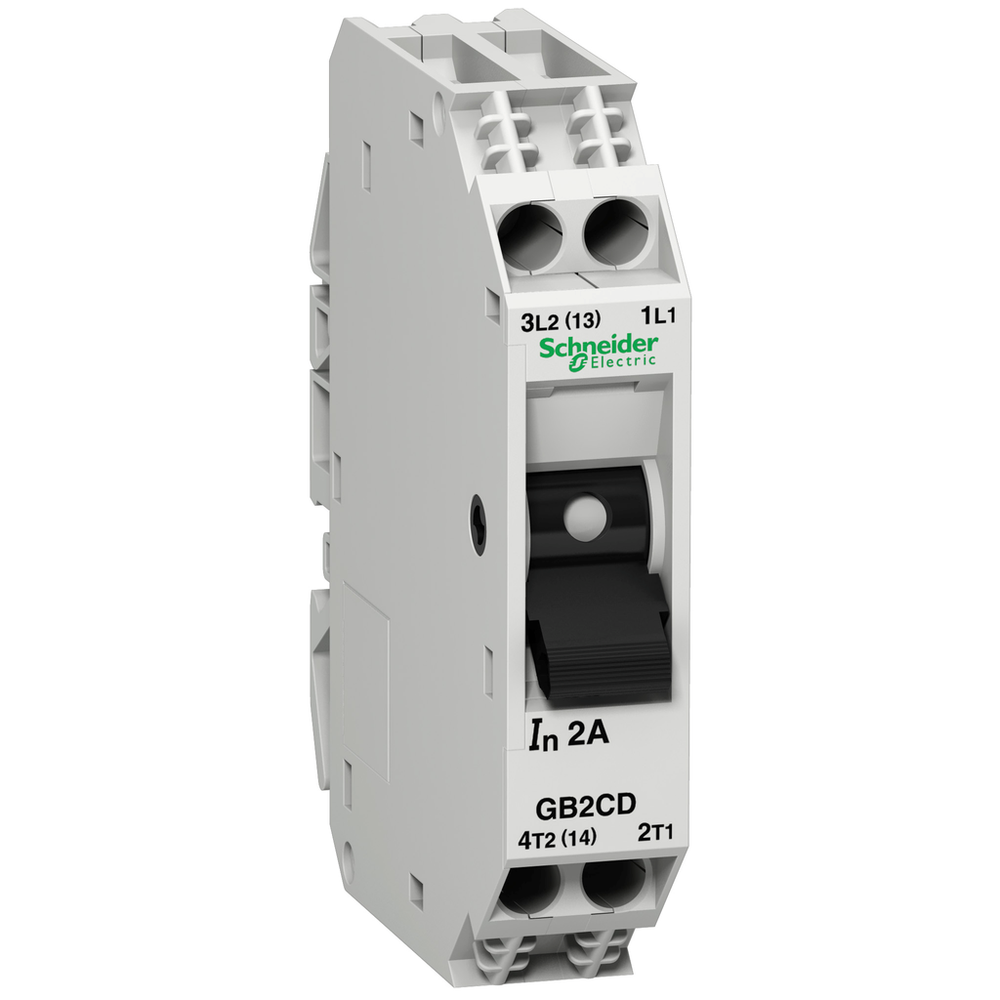

Schneider Electric GB2CD22
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GB circuit breaker, 2 poles (1P+N), 20A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 270A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 20A/24V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA), Green Premium product (RoHS/REACh).TeSys GB2 thermal magnetic circuit protector, 1 P + N, 20 A, Id = 270 A
Schneider Electric GB2CD22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 2
- Connections - Terminals
- connector 1 0.75-6 mm²solid without cable end || connector 2 0.75-4 mm²solid without cable end || connector 1 0.75-4 mm²flexible with cable end || connector 2 0.75-2.5 mm²flexible with cable end
- Control Type
- toggle
- Depth
- 67 mm
- Electrical Durability
- 8000 cycles
- Height
- 74 mm
- Line Rated Current
- 20 A
- Mechanical Durability
- 8000 cycles
- Mechanical Robustness
- shocks 22 Gn for 20 ms IEC 60068-2-27 || vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
- Mounting Mode
- by clips
- Mounting Position
- vertical || horizontal
- Mounting Support
- plate || rail
- Net Weight
- 0.07 kg
- Power Dissipation Per Pole
- 2 W
- Quantity Per Set
- set of 6
- Tightening Torque
- 1.2 N.m connector
- [Ue] Rated Operational Voltage
- 250 V AC 50/60 Hz IEC 60947-2 || 277 V AC 60 Hz CSA C22.2 No 235 || 277 V AC 60 Hz UL 1077 || 48 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-2
- Width
- 15 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20 IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m)
- Product Certifications
- UL || CSA
- Protective Treatment
- TC
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-2 || CSA C22.2 No 235 || UL 1077
Offer Sustainability
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2306023
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Breaking Capacity
- 2 kA Icu 110 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 24 V DC IEC 60947-2
- Device Application
- control
- Device Short Name
- GB2
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 75 % 110 V AC 50/60 Hz IEC 60947-2 || 75 % 230/240 V AC 50/60 Hz IEC 60947-2
- Magnetic Tripping Current
- 270-270 A
- Network Frequency
- 50/60 Hz IEC 60947-2
- Network Type
- AC/DC
- Poles Description
- 1P + N
- Product Name
- TeSys GB2
- Product Or Component Type
- circuit breaker
- Range
- TeSys
- Trip Unit Technology
- thermal-magnetic
- Utilisation Category
- category A IEC 60947-2 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
