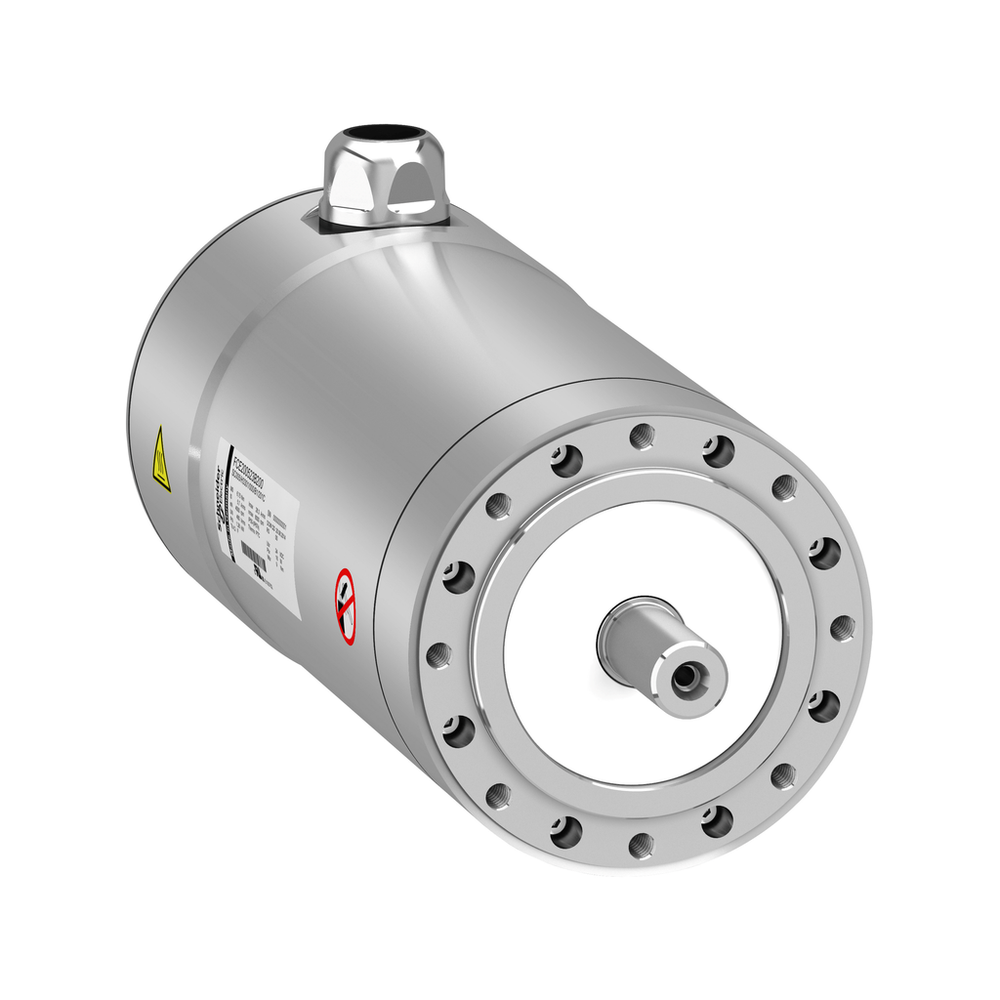

Schneider Electric FCE200524B200

Complementary

• Back Emf Constant
  • 2.1 V/krpm 20 °C
• Centring Collar Depth
  • 2.5 mm
• Centring Collar Diameter
  • 60 mm
• Circle Diameter Of The Mounting Holes
  • 71 mm
• Continuous Power
  • 970 W
• Continuous Stall Current
  • 3.6 A
• Continuous Stall Torque
  • 2.5 N.m LXM62 || 2.5 N.m LXM52
• Electrical Connection
  • cable with stripped end
• Holding Brake
  • with
• Holding Torque
  • 4.65 N.m
• Key Width
  • 6 mm
• Length
  • 270.7 mm
• Maximum Axial Force Fa
  • 80 N
• Maximum Current Irms
  • 15.2 A LXM62 || 15.2 A LXM52
• Maximum Mechanical Speed
  • 6000 rpm
• Maximum Permanent Current
  • 2.35 A
• Maximum Radial Force Fr
  • 400 N 6000 rpm
• Motor Flange Size
  • 100 mm
• Mounting Holes Diameter
  • 6 mm
• Mounting Support
  • flange
• Net Weight
  • 7.1 kg
• Nominal Output Power
  • 970 W LXM62 || 970 W LXM52
• Nominal Speed
  • 6000 rpm LXM62 || 6000 rpm LXM52
• Nominal Torque
  • 1.55 N.m LXM62 || 1.55 N.m LXM52
• Number Of Motor Poles
  • 146
• Number Of Mounting Holes
  • 4
• Phase
  • three phase
• Product Compatibility
  • LXM62 400 V, three phase || LXM52 400 V, three phase
• Rotor Inertia
  • 0.58 kg.cm²
• Shaft Diameter
  • 14 mm
• Shaft End
  • smooth shaft
• Shaft Length
  • 40 mm
• Speed Feedback Resolution
  • 128 periods
• Stator Inductance
  • 13 mH
• Stator Resistance
  • 2.7 Ohm
• Switching Frequency
  • 8 kHz
• Type Of Cooling
  • natural convection
• [Us] Rated Supply Voltage
  • 400 V

Environment

• Ip Degree Of Protection
  • motor IP69K EN/IEC 60034-5 || motor IP67 EN/IEC 60034-5

Specifications

• Device Short Name
  • SHS
• Encoder Type
  • absolute multiturn SinCos Hiperface
• Product Or Component Type
  • servo motor
• Range Compatibility
  • PacDrive 3
