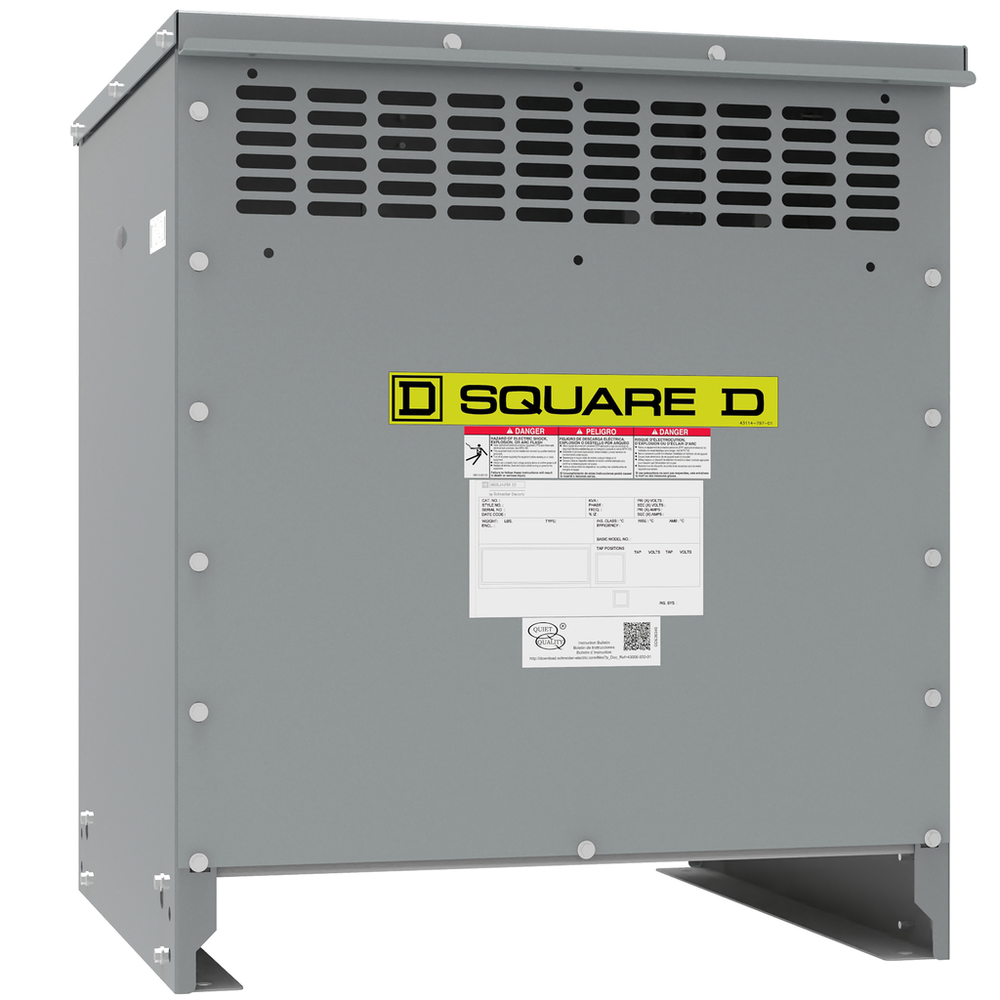

Schneider Electric EXN45T1814H
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 45kVA, 480V primary (three wire), 480Y/277V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 98.40% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of 1/2 inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 480Y/277V secondary, 19M, 150C rise
Schneider Electric EXN45T1814H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Box Number
- 19M
- Continuous Thermal Current Rating Factor
- 513 16.6 % || 676 25 % || 1559 50 % || 3031 75 % || 5091 100 %
- Degree Of Protection
- UL type 2 || UL type 3R, with 7400WS18M19M20M
- Depth
- 659 mm
- Efficiency
- 98.44 % at 35 % load factor , 75.0 °C
- Electrical Connection
- 2 Hole Nema Pad secondary 11.1 mm || 4 Hole Nema Pad sec - XO 11.1 mm
- Height
- 745 mm
- Inrush Current
- 586 A
- [Ipk] Rated Peak Withstand Current
- 3.16 kA
- Material
- aluminium
- Mounting Support
- floor || floor, with 7400FMB || ceiling, with 7400CMB18M19M20M || wall, with 7400WMB18M19M20M
- Net Weight
- 169.19 kg
- Network Frequency
- 60 Hz
- Noise Level
- 6 dB NEMA ST-20 || 39 dB
- Number Of Mounting Holes
- 4 Ø: 13 mm
- Number Of Tap-Offs
- 2 2.5 % FCAN || 4 2.5 % FCBN
- Percentage Impedance Voltage
- 3.95 %
- Percentage Reactance
- 2.62 %
- Phase
- 3 phase
- Primary Operational Current
- 54.13-54.13 A 54.13 A 45 kVA
- Primary Voltage
- 480 V delta
- Rated Operational Power In Va
- 45 kVA
- Secondary Voltage
- 480Y/277 V
- Tap Loss
- 112 no load (core loss) || 1380 load loss (coil loss)
- Temperature Rise
- 150 °C || 220 °C insulated
- Type Of Cooling
- natural convection
- [Uimp] Rated Impulse Withstand Voltage
- 10 kV
- Width
- 648 mm
- X/R Ratio
- 0.93
Environment
- Ambient Air Temperature For Operation
- 40-40 °C
- Average Ambient Air Temperature For Operation
- 30 °C
- Standards
- UL 1561 || CSA C22.2 No 47 || NEMA ST-20
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP1604028EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Application
- low voltage electrical distribution
- Device Short Name
- DOE 2016
- Product Or Component Type
- transformer
- Range Of Product
- Square D
- Transformer Type
- energy efficient
