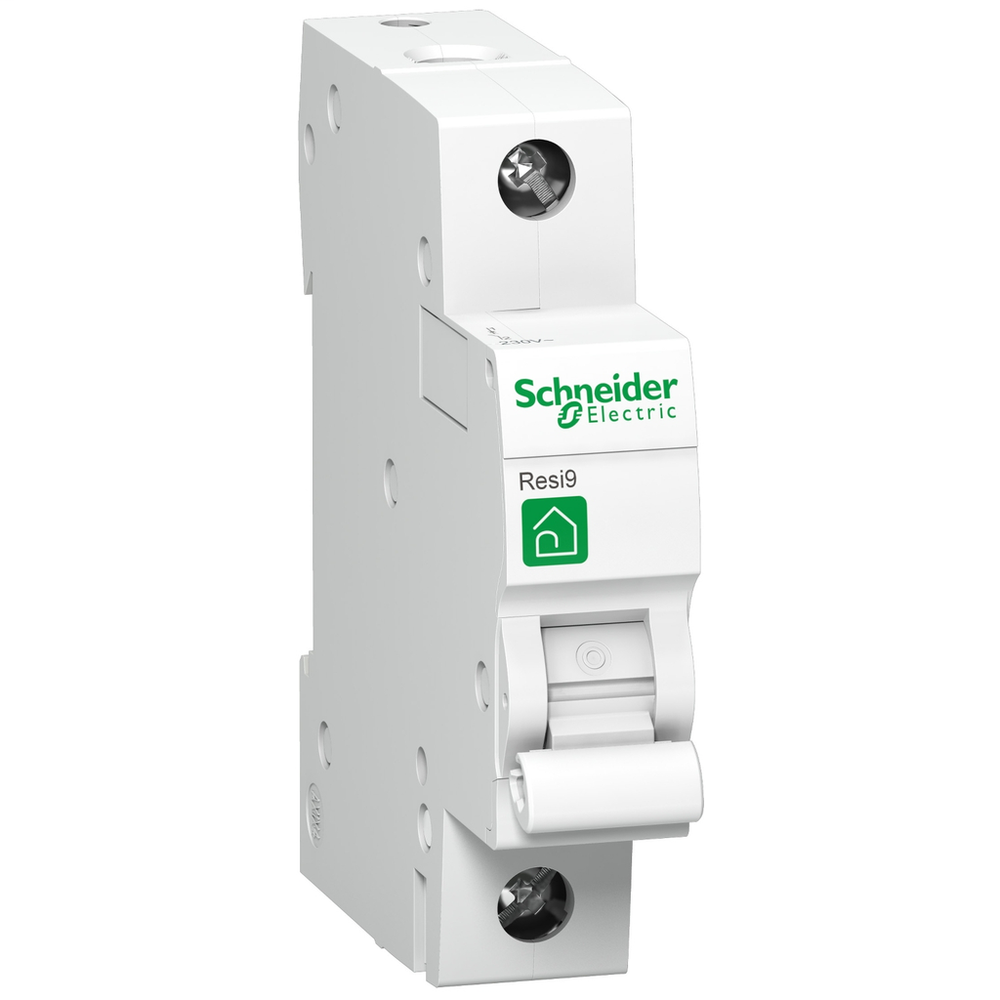

Schneider Electric EPH5800321
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RESI9 circuit breaker, 1P, C, 10A
Schneider Electric EPH5800321 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 mm Hole Distance
- 2
- Color
- White
- Comb Collector Rail Distribution Block Compatibility
- Bottom: Double connection
- Connection Type
- Tunnel type connectors, top or bottom rigid wire (s) || Tunnel type connectors, top or bottom flexible wire (s) || Tunnel type connectors, top or bottom flexible metal ring (s)
- Control Type
- Rod
- Depth
- 75 mm
- Description of Locking Options
- Padlock in OFF position
- Electric Life
- 4000 cycles AC 50/60 Hz complies with EN / IEC 60898-1
- Height
- 85 mm
- Leakage Current Protection
- No
- Local Indication
- ON / OFF indicator
- Magnetic Release Limit
- 5 ... 10 x In
- Mechanical Durability
- 10,000 cycles
- Mounting Bracket
- DIN rail
- Mounting Mode
- Clip-in
- Network Frequency
- 50/60 Hz
- Pulling Torque
- 2 Nm (top or bottom)
- Restriction Class
- 3 complies with EN / IEC 60898-1
- Ue Rated Operating Voltage
- 230 V AC 50/60 Hz
- Ui Rated Insulation Voltage
- 440 V AC 50/60 Hz
- Width
- 18 mm
- Wire Stripping Length
- 14 mm (top or bottom)
Environment
- Ambient Air Temperature for Operation
- -25 ... 60 ° C
- Ambient Air Temperature for Storage
- -40 ... 80 ° C
- Degree of Pollution
- 2 complies with EN / IEC 60898-1
- IP Protection Level
- For IP40, the modular cabinet complies with IEC 60529 || IP20 compliant with IEC 60529
Main
- Curve Code
- C
- Device Application
- Distribution
- Interrupt Capacity
- Icn 4500 A -230 V AC 50/60 Hz complies with EN / IEC 60898-1
- Name of Poles
- 1P
- Name of Product
- Resi9 MCB
- Network Type
- AC
- Number of Protected Poles
- 1
- Product Certificates
- VDE || EAC
- Product Family
- Resi9
- Product or Component Type
- Circuit breaker
- Rated Current
- 10 ° -30 ° C
- Standards
- EN / IEC 60898-1
- Trip Unit Technology
- Thermal-magnetic
Offer Sustainability
- Product Withdrawal Tasks
- No special recycling is needed
- Sustainable Offer
- Green Premium Product
