Schneider Electric EMS59573
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

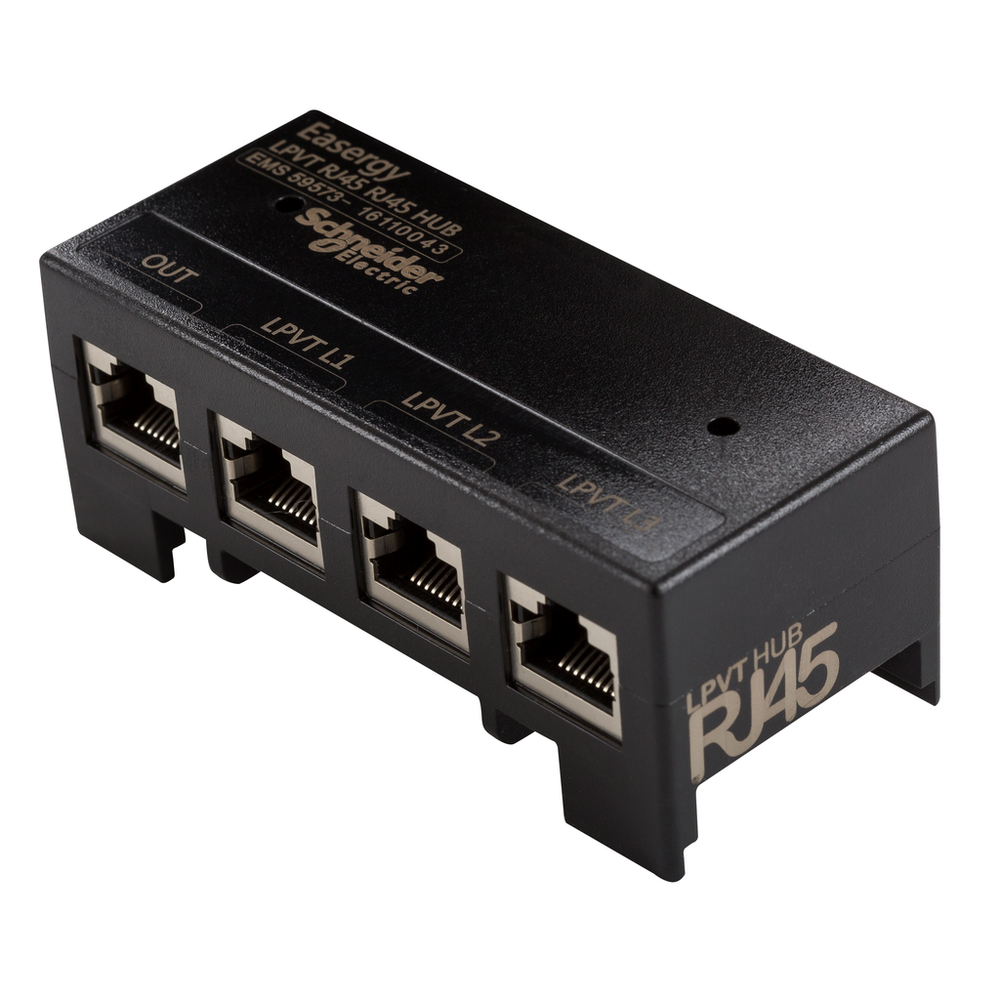

This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. It include 3 RJ45 inputs, and RJ45 communication port for output. Complient to standards IEC 60044-7, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 40 mm in height, 40 mm in width and 95 mm in length.PowerLogic LPVT voltage adapter, RJ45 input, RJ45 output for SC150
Schneider Electric EMS59573 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Connection
- output: connector RJ45 || input: 3 connector RJ45
- Input Voltage
- < 10 V
- Input Voltage Limits
- < 30 V
- Network Frequency
- 50/60 Hz
- Rated Voltage
- 11-36 kV
Environment
- Ambient Air Temperature For Operation
- -40-85 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Characteristic
- salt mist 200 h IEC 60068-2-11
- Fire Resistance
- 850 °C IEC 60695-2-11
- Height
- 40 mm
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- IP30 conforming to IEC 60529
- Length
- 95 mm
- Mounting Support
- DIN rail
- Net Weight
- 0.25 kg
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Product Certifications
- CE
- Relative Humidity
- 95-95 % IEC 60068-2-30
- Standards
- IEC 60044-7
- Width
- 40 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1411007
- Environmental Disclosure
- ENVPEP1411007
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- hub connector
- Range Of Product
- PowerLogic T300
