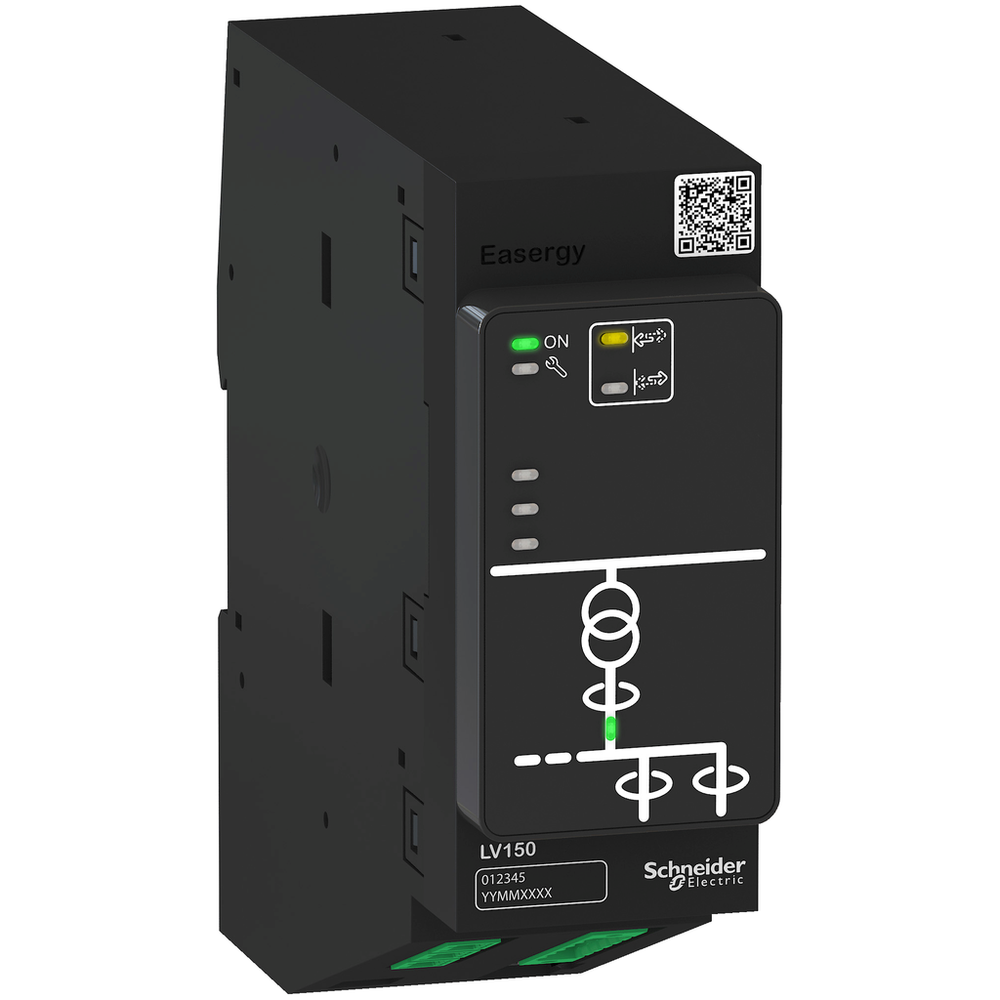

Schneider Electric EMS59300
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Easergy LV150 is an unmatched low voltage monitoring module designed for the public MV/LV substation. The main functions of LV150 are: transformer temperature monitoring, LV incomer power and quality monitoring, LV network voltage fault detection. It offers class 0.5 current and voltage, and class 1 energy system accuracy. The degree of protection is IP2x body and IP4x in the front. The degree of protection is IK07. It complies with CE certificat. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C. It include 8 gigital inputs, and communication port ethernet 2 RJ45. The device dimensions are 45mm in width, 140mm in height, 140 in depth, and weight 0.46 kilograms.PowerLogic LV150: low voltage power monitoring and transformer thermal monitoring
Schneider Electric EMS59300 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- current 0.01...35 A (impedance 0.001 Ohm)4 x
- Communication Port Protocol
- IEC 60870-5-104
- Communication Port Support
- 2 ETHERNET RJ45
- Control Type
- illuminated push-button status:
- Data Recording
- sequence of event recording || sag and swell logs || counter || harmonics logs || event logs || demand values || min/max of instantaneous values || current value before fault
- Measurement Current
- 5-5 A || 1-1 A
- Measurement Voltage
- : 0-30 V AC at 50/60 Hz (single or three phases)
- Memory Capacity
- 4 MB
- Number Of Inputs
- 8 digital IEC 61131-2 type 3
- Power Consumption In Va
- 2 VA
- Power Quality Analysis
- voltage sag and swell detection || voltage unbalance || individual harmonics || harmonic distortion || voltage magnitude
- Product Or Component Type
- low voltage and transformer monitoring
- Protection Type
- ANSI 47 : negative sequence overvoltage || ANSI 27 : undervoltage || ANSI 59 : overvoltage || ANSI 59N : neutral voltage displacement || ANSI 37 : phase undercurrent
- Software Function
- assistance in commissioning and operating the installation || alarm || reports and diagrams || security/authority verification || Operating/Status report || event log
- Synchronisation Time Between Inputs
- 1 ms
- Type Of Measurement
- current class 0.5 || voltage class 0.5 || energy class 1 IEC 61557-12
- active and reactive energy || power factor || current || voltage || frequency || active and reactive power || apparent energy || apparent power
- [Us] Rated Supply Voltage
- 12...48 V DC +/- 20 %
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Depth
- 140 mm
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4 || conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6 || conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16 || 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12 || radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3 || immunity to voltage dips criteria A conforming to IEC 61000-4-29 || electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2 || surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5 || magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8 || conducted and radiated emissions class A conforming to EN 55022
- Fixing Mode
- clip-in DIN rail)
- Height
- 140 mm
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- body IP2X IEC 60529 || front IP4X IEC 60529
- Mechanical Robustness
- vibrations 10-2000 Hz 1 gn 10 cycles IEC 60068-2-6 || bumps 10 gn 16 ms 1000 bumps non energized IEC 60068-2-29 || shocks 10 gn 11 ms 3 pulses in operation IEC 60068-2-27
- Net Weight
- 0.46 kg
- Operating Altitude
- 9842.52 ft (3000 m)
- Product Certifications
- CE
- Relative Humidity
- 5-95 % IEC 60068-2-30
- Standards
- IEC 60255-27 || IEC 61557-12 || IEC 62586-1 || IEC 61000-4-30:class S || IEC 61850
- Type Of Installation
- indoor || outdoor in cabinet
- Width
- 45 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1605007_V3
- Environmental Disclosure
- ENVPEP1605007_V2
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LV150
- Range Of Product
- PowerLogic T300
