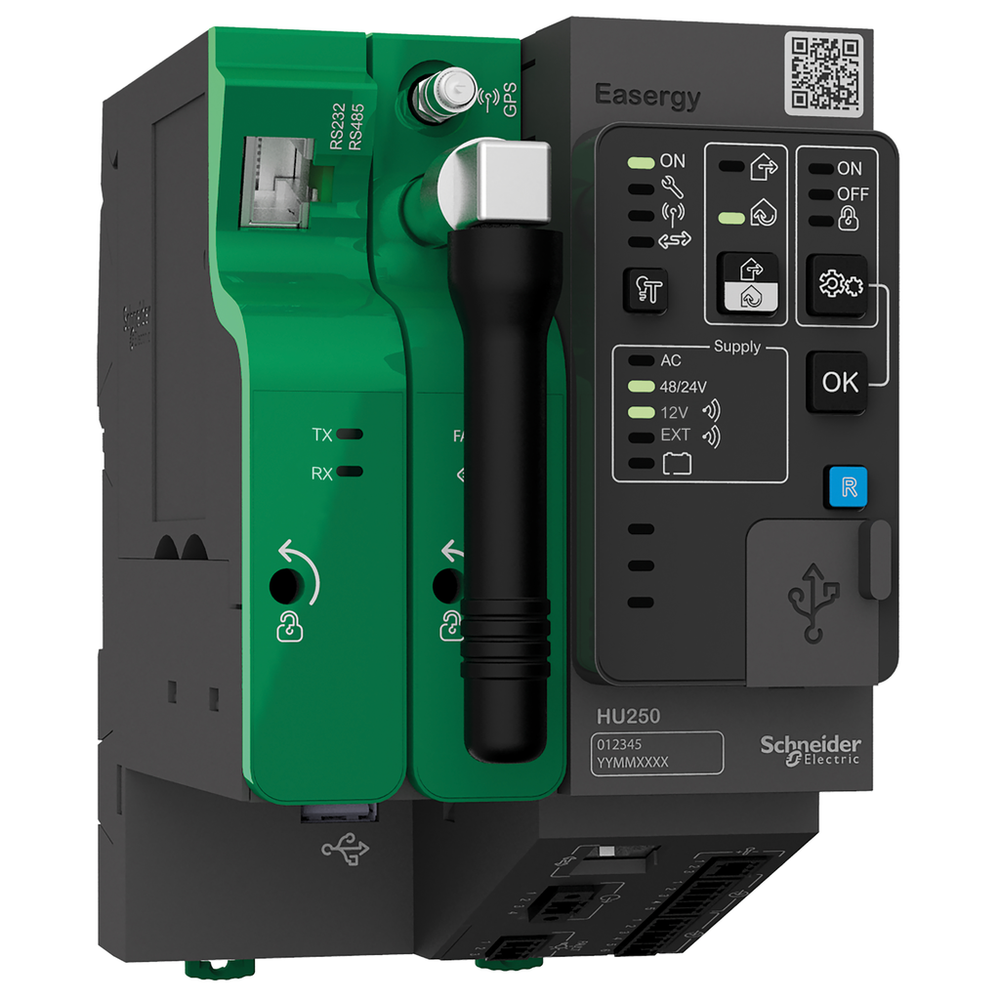

Schneider Electric EMS59000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Head unit communication gateway with cyber security management. It include for communication port: 5 RJ45 for Ethernet, 1 RJ45 for modbus, 1 RJ45 for USB, 1 RJ45 for RS and RS232, and 1 SMA for 3G and 4G. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificat. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.PowerLogic HU250: Head Unit communication gateway with cyber security management
Schneider Electric EMS59000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- DNP3 serial and TCP master station/outstation || Modbus serial and TCP client/server || IEC 61850-8-1 controlling/controlled station || IEC 60870-5-104 controlling/controlled station || IEC 60870-5-101 controlled station
- Communication Port Support
- 4 ETHERNET RJ45 || 1 RS232/485 Modbus/ASCII RJ45 || 1 RS485/RS232 RJ45 || 1 3G/4G SMA
- Communication Service
- WiFi local web server || Ethernet local web server || WAN remote web server
- Control Type
- illuminated push-button status:
- Data Recording
- event logs || 4 data logs || 1 ms time stamps || 500000 events || sequence of event recording
- Memory Capacity
- 16 MB
- Number Of Inputs
- 6 digital multi-purpose IEC 61131-2 type 3 || 2 digital remote control || 2 analog measure temperature
- Number Of Outputs
- 2 digital (relay) multi-purpose:
- Power Consumption In Va
- 3 VA
- Product Or Component Type
- communication gateway
- Programming Language
- calculation formula || ST (structured text) || IL (instruction list) || LD (ladder) || FBD (function block diagram) || SFC (sequential function chart)
- Software Function
- event log || alarm || Operating/Status report || assistance in commissioning and operating the installation || security/authority verification || reports and diagrams
- Synchronisation Time Between Inputs
- 1 ms
- Time Synchronisation Protocol
- NTP || SNTP || GPS
- [Us] Rated Supply Voltage
- 12...48 V DC +/- 20 %
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Depth
- 140 mm
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4 || conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6 || conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16 || 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12 || radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3 || immunity to voltage dips criteria A conforming to IEC 61000-4-29 || electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2 || surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5 || magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8 || conducted and radiated emissions class A conforming to EN 55022
- Fixing Mode
- clip-in DIN rail)
- Height
- 140 mm
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- body IP2X IEC 60529 || front IP4X IEC 60529
- Mechanical Robustness
- vibrations 10-2000 Hz 1 gn 10 cycles IEC 60068-2-6 || bumps 10 gn 16 ms 1000 bumps non energized IEC 60068-2-29 || shocks 11 ms 3 pulses in operation IEC 60068-2-27
- Net Weight
- 0.55 kg
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- CE
- Relative Humidity
- 5-95 % IEC 60068-2-30
- Standards
- IEC 60255-27
- Type Of Installation
- indoor || outdoor in cabinet
- User Language
- multi-language
- Width
- 90 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1605007_V3
- Environmental Disclosure
- ENVPEP1605007_V2
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- HU250
- Product Name
- PowerLogic T300
- Range
- PowerLogic
- Range Of Product
- PowerLogic T300
