Description

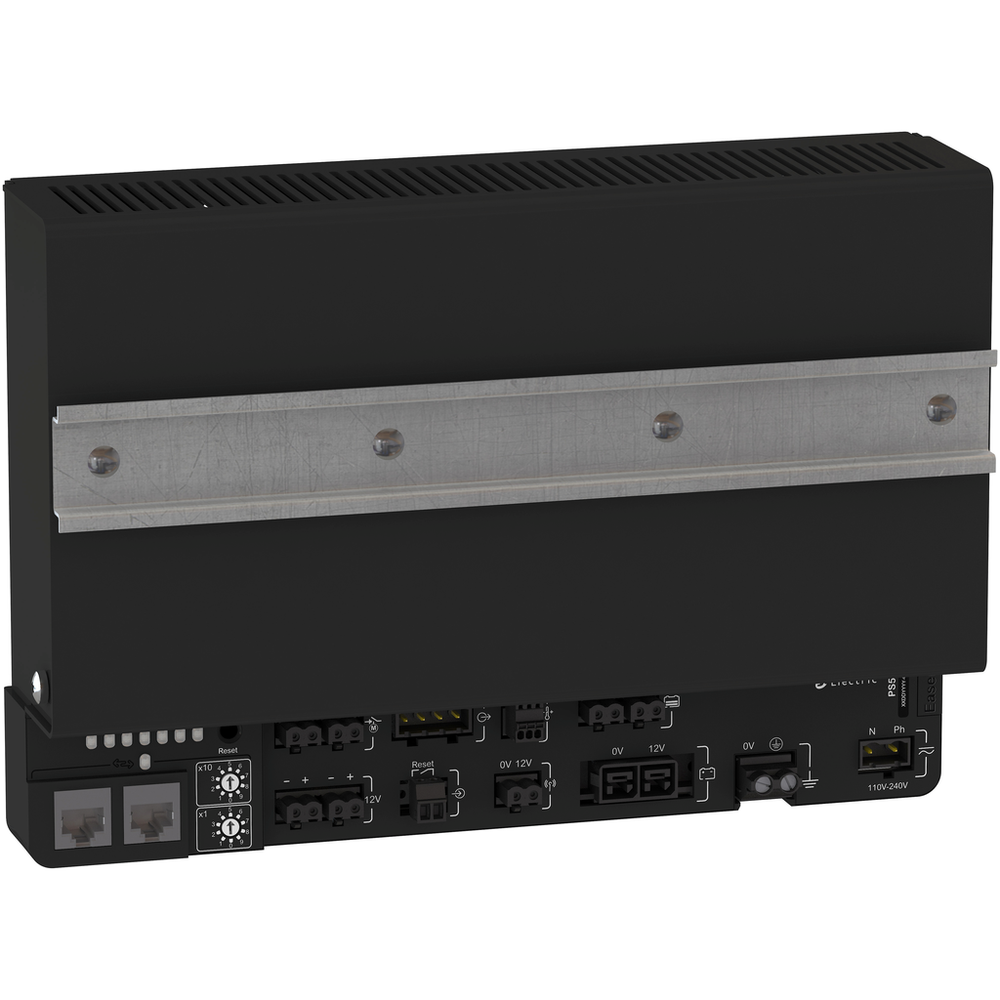

The Easergy T300 backup power supplies are designed for long power supply interruption and to maintain control and monitoring of the entire MV substation during outages. Designed for 50Hz or 60Hz networks, supply voltage can range from 110 to 220VDAC or 90 to 264VAC. This product can be installed on DIN rail. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 70°C. This device has 1 digital relay output for battery fault signalling, and 1 digital relay output for main presence. Complient to standards IEC 60255-27, CE certification. Communication enabled with a RS485 serial port and the Modbus port protocol. Mechanical dimensions are 190 mm in height, 270 mm in width and 71 mm in depth.Easergy PS50-48V: Power supply and battery charger 12V and 48V outputs
Schneider Electric EMS58588 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Autonomy
- 16 h
- Battery Capacity
- 24 Ah 12 V, Lead-Acid battery || 38 Ah 12 V, Lead-Acid battery
- Charging Time
- 24 h
- Communication Port Protocol
- Modbus
- Communication Port Support
- RS485
- Input Voltage Limits
- 440 V AC/DC L-N)
- Number Of Outputs
- battery fault (BAT) 1 digital (relay) || main presence 1 digital (relay)
- Output Voltage
- 12 V DC || 48 V DC
- Product Compatibility
- BAT24AH || BAT38AH
- Product Or Component Type
- power supply
- Protection Type
- against short-circuits || integrated thermal protection
- Rated Short-Duration Power Frequency Withstand Voltage
- 10 kV 50 Hz 1 min
- Surge Withstand
- 20 kV 1.2/50 µs
- [Us] Rated Supply Voltage
- 110...240 V DC || 110...240 V AC 50/60 Hz
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Depth
- 71 mm
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4 || conducted and radiated emissions class A conforming to EN 55022 || conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6 || conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16 || 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12 || radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3 || immunity to voltage dips criteria A conforming to IEC 61000-4-29 || electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2 || surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5 || magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8
- Height
- 190 mm
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Mechanical Robustness
- vibrations 10-2000 Hz 1 gn 10 cycles IEC 60068-2-6 || bumps 10 gn 16 ms 1000 bumps non energized IEC 60068-2-29 || shocks 10 gn 11 ms 3 pulses in operation IEC 60068-2-27
- Mounting Support
- DIN rail
- Net Weight
- 2.75 kg
- Operating Altitude
- 6561.68 ft (2000 m)
- Operating Position
- vertical
- Overvoltage Category
- IV
- Product Certifications
- CE
- Relative Humidity
- 5-95 % IEC 60068-2-30
- Standards
- IEC 60255-27
- Width
- 270 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1605007_V3
- Environmental Disclosure
- ENVPEP1605007_V2
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- PS50
- Range Of Product
- Easergy T300
