Schneider Electric EMKA934553L004034X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

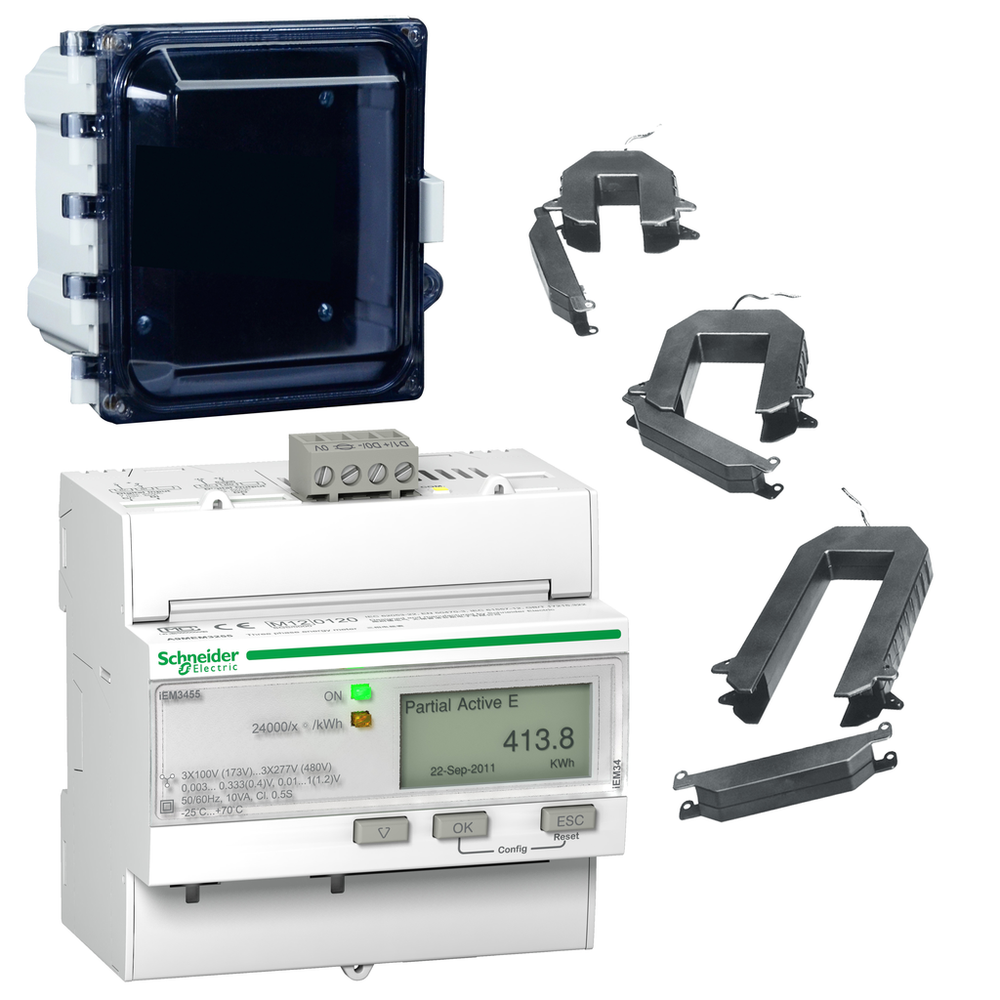

This bundle kit includes components required for a retrofit energy metering solution This kit includes : IEM3455 Meter (A9MEM3455), quantity 3 - 400A Size 3 Split Core LVCTs (LVCT00403S), and one NEMA Type 4X enclosure (EM3500ENC). The A9MEM3455 energy meters is a three-phase DIN rail-mounted energy meter with an LCD display. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Compatible with power management software to take advantage of the IoT digital power installation. The EM3500ENC enclosure offers a mounting option for Schneider Electric EM35xx Series energy meters that helps protect from tampering and the elements. The enclosure is equipped with DIN rail mounting hardware for easy installation and a NEMA 4X rating for durability.A9MEM3455 Meter, 3 Split Core 400A LVCTs, NEMA Type 4X Enclosure
Schneider Electric EMKA934553L004034X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
- Communication Port Support
- screw terminal block RS485
- Connections - Terminals
- current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm² || input/output circuit screw terminals 1.5-1.5 mm² || communication screw terminals 2.5-2.5 mm²
- Current Transformer Type
- split core balance
- Device Application
- sub billing || multi-tariff || partial meter
- Display Type
- LCD display
- Enclosure Mounting
- wall mounted
- Line Rated Current
- 400 A
- Local Signalling
- Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload || Yellow indicator light communications are active on the Modbus port (Modbus)
- Measurement Accuracy
- 1 % 10...100 %
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Network Frequency
- 60 Hz || 50 Hz
- Poles Description
- 3P + N || 1P + N || 3P
- Product Certifications
- ANSI || UL || CSA
- Provided Equipment
- 1 energy meter || 3 x 400 A current transformer || 1 enclosure
- Rated Voltage
- 100-277 V +/- 20 % || 173-480 V +/- 20 %
- Technology Type
- electronic
- Tightening Torque
- input/output circuit 0.5-0.5 N.m Philips || voltage circuit 0.5-0.5 N.m Philips || current circuit 0.8-0.8 N.m pozidriv || communication 0.5-0.5 N.m Philips
- Type Of Measurement
- active and reactive energy || active and reactive power || current || voltage
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Nema Degree Of Protection
- NEMA 4X
Specifications
- Product Or Component Type
- energy meter kit
