Schneider Electric EMKA934552L202024X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

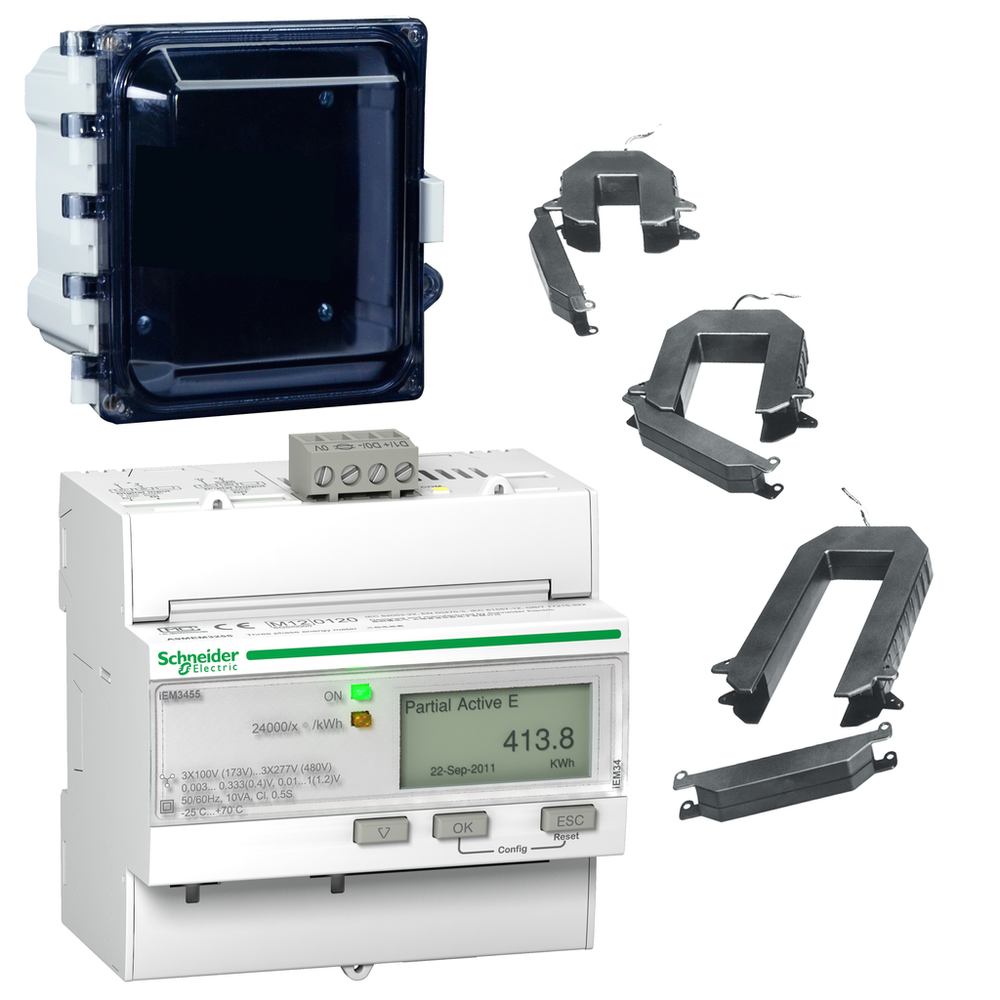

A9MEM3455 Meter, 2- 200A Size 2 Solid Core LVCTs, NEMA Type 4X Enclosure
Schneider Electric EMKA934552L202024X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
- Communication Port Support
- screw terminal block RS485
- Connections - Terminals
- current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm² || input/output circuit screw terminals 1.5-1.5 mm² || communication screw terminals 2.5-2.5 mm²
- Current Transformer Type
- solid core
- Device Application
- sub billing || multi-tariff || partial meter
- Display Type
- LCD display
- Enclosure Mounting
- wall mounted
- Line Rated Current
- 200 A
- Local Signalling
- Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload || Yellow indicator light communications are active on the Modbus port (Modbus)
- Measurement Accuracy
- +/- 0.5 % 5...120 %
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Network Frequency
- 60 Hz || 50 Hz
- Poles Description
- 3P + N || 1P + N || 3P
- Product Certifications
- ANSI || UL || CSA
- Provided Equipment
- 1 energy meter || 2 x 200 A current transformer || 1 enclosure
- Rated Voltage
- 100-277 V +/- 20 % || 173-480 V +/- 20 %
- Technology Type
- electronic
- Tightening Torque
- input/output circuit 0.5-0.5 N.m Philips || voltage circuit 0.5-0.5 N.m Philips || current circuit 0.8-0.8 N.m pozidriv || communication 0.5-0.5 N.m Philips
- Type Of Measurement
- active and reactive energy || active and reactive power || current || voltage
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Nema Degree Of Protection
- NEMA 4X
Specifications
- Product Or Component Type
- energy meter kit
