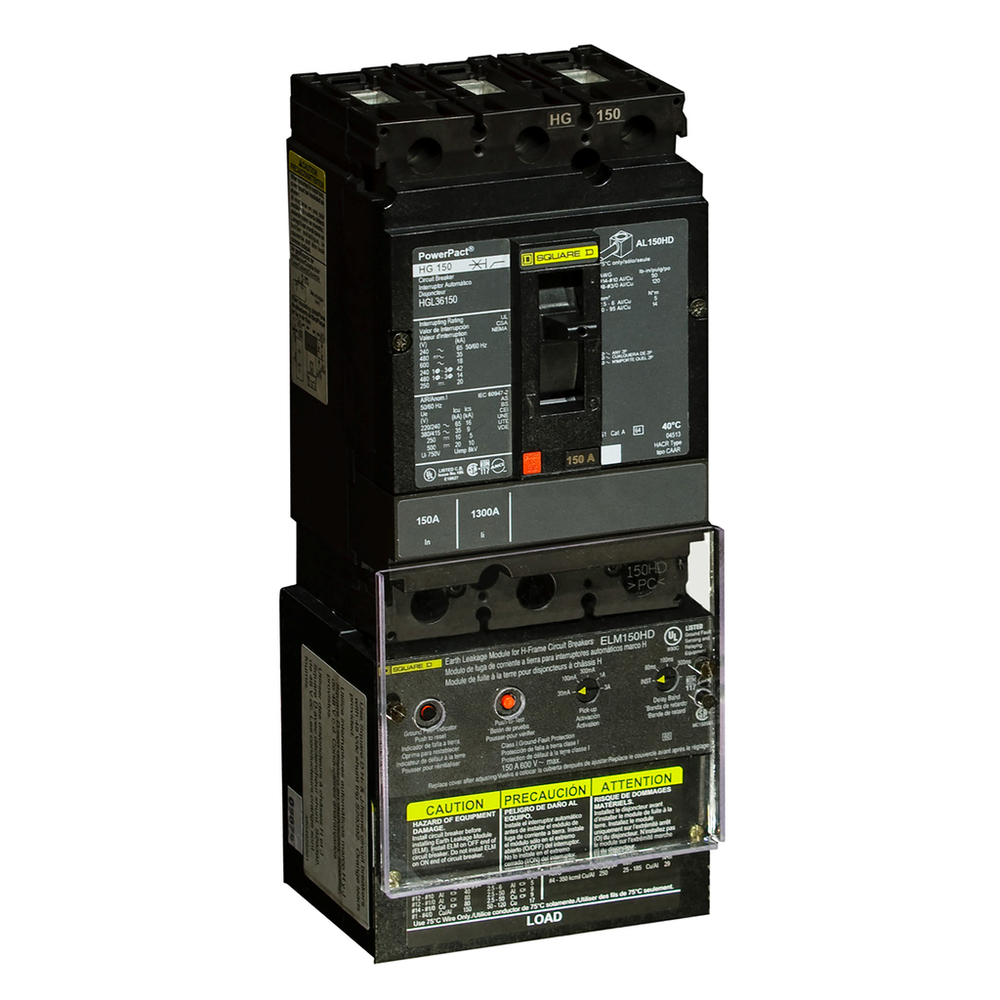

Schneider Electric ELM150HD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Earth Leakage Module (ELM) is an add on module which provides low level ground fault sensing and relay functions. The add on ELM module features adjustable ground fault pickup levels as low as 30mA and adjustable ground fault delays from instantaneous to 500ms. It has an integral ground fault push-to-test feature. All ELMs are supplied for I-Line mounting and are convertible to unit mount by removing the I-Line mounting feet. A 48VDC shunt trip is required in the circuit breaker, either field or factory installed. This module has a rated operational voltage of 240 to 600VAC and current of 15 to 150A. The module complies with UL and CSA standards.Circuit breaker accessory, PowerPacT H, earth leakage module, 15 to 150A
Schneider Electric ELM150HD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Earth-Leakage Protection Time Delay
- 500 ms || instantaneous
- Earth-Leakage Sensitivity
- 1000 mA || 30 mA || 3000 mA || 300 mA || 100 mA
- Electrical Connection To Mcb
- plug in
- Line Rated Current
- 15-150 A
- Local Signalling
- trip indicator
- Network Type
- AC
- Tightening Torque
- 9-9 N.m 2.5-50 mm² (AWG 14...AWG 1/0) || 4.5-4.5 N.m 2.5-50 mm² (AWG 12...AWG 10) || 17-17 N.m 50-120 mm² (AWG 4...AWG 1) || 9-9 N.m 2.5-50 mm² (AWG 12...AWG 1/0)
- [Ue] Rated Operational Voltage
- 240...600 V
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CSA || UL
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Specifications
- Circuit Breaker Type
- HJ || HG || HL || HD
- Product Or Component Type
- earth leakage add-on block
- Range Of Product
- PowerPact
