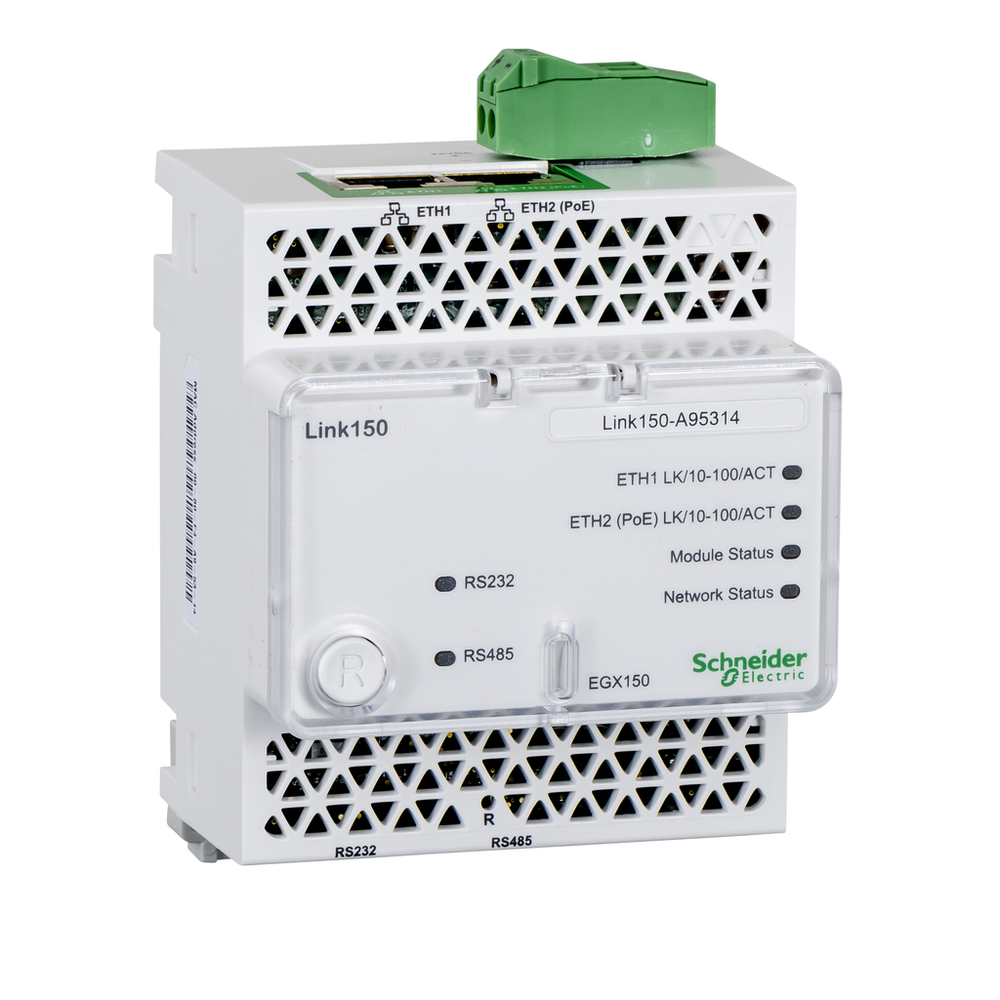

Schneider Electric EGX150

Complementary

• Communication Network Type
  • Ethernet, Ethernet Modbus TCP/IP daisy chain even/odd or none 10/100 Mbit/s || Ethernet, PoE 15W (Power over Ethernet) even/odd or none 10/100 Mbit/s || Ethernet, FTP even/odd or none 10/100 Mbit/s || Ethernet, HTTP even/odd or none 10/100 Mbit/s || Ethernet, SNMP even/odd or none 10/100 Mbit/s || Ethernet, Modbus TCP/IP even/odd or none 10/100 Mbit/s || RS232, Modbus RTU, JBUS, PowerLogic (SY/MAX) even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds || RS232, Modbus ASCII even/odd or none 2400, 4800, 9600, 19200, 38400, 56000 or 57600 bauds || RS232, Modbus Serial line slave even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds || RS485, Modbus RTU, JBUS, PowerLogic (SY/MAX) even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds || RS485, Modbus ASCII even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds || RS485, Modbus Serial line slave even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds
• Communication Port Protocol
  • Ethernet Modbus TCP/IP daisy chain 6 kV || Modbus TCP/IP 6 kV || Modbus RTU, JBUS, PowerLogic (SY/MAX), master - 2 or 4 wires 2.5 kV || Modbus ASCII, master - 2 or 4 wires 2.5 kV || Modbus RTU and ASCII, slave - 2 or 4 wires 2.5 kV
• Communication Port Support
  • RJ45 ETHERNET || RJ45 RS232 || RJ45 RS485
• Compatibility Code
  • EGX150
• Connections - Terminals
  • power supply screw terminal block top) 0.2-1.5 mm² rigid || power supply screw terminal block top) 0.2-1.5 mm² flexible with cable end || power supply screw terminal block top) 0.2-1.5 mm² flexible without cable end
• Current Consumption
  • 130 mA 24 V DC via external supply 20 °C) || 65 mA 48 V DC via PoE 20 °C)
• Depth
  • 72 mm
• Height
  • 105 mm
• Local Signalling
  • LED:Ethernet activity (ETH1) || LED:Ethernet activity (ETH2) || LED:module status || LED:network communication status (Net Status) || LED:communication RS232) || LED:communication RS485)
• Maximum Power Consumption In W
  • 15 W via PoE
• Mounting Mode
  • clip-on
• Mounting Support
  • 35 mm DIN rail
• Net Weight
  • 175 g
• Number Of Inputs
  • 0-0
• Number Of Outputs
  • 0
• Parity
  • even/odd or none
• Product Certifications
  • cULus || FCC Class A || CE || RCM || UL || cUL
• Standards
  • IEC 60950-1 || UL 61010-2-201 || UL 61010-1 || CSA C22.2 No 60950-1 || AS/NZS 60950-1 || UL 60950-1 || IEC 61000-6-2
• Tightening Torque
  • power supply 0.3-0.3 N.m flat 3 mm
• Web Services
  • web server
• Width
  • 71 mm
• Wire Stripping Length
  • power supply: 7 mm for top connector connection

Environment

• Ambient Air Temperature For Operation
  • -25-70 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Electromagnetic Compatibility
  • immunity for industrial environments conforming to EN 61000-6-2 || immunity for industrial environments conforming to CISPR 24 || conducted and radiated emissions conforming to FCC Part 15 class B || conducted and radiated emissions conforming to EN 55022 || conducted and radiated emissions conforming to CISPR 22 || electrostatic discharge - test level: 8 kV air, 6 kV contact B conforming to EN 61000-4-2 || radiated RF fields - test level: 10 V/m, 80 MHz...1 GHz A conforming to EN 61000-4-3 || radiated RF fields - test level: 3 V/m, 1 MHz...3 GHz A conforming to EN 61000-4-3 || fast transients immunity test level 4 conforming to EN 61000-4-4 || fast transient bursts class 3 conforming to EN 61000-4-12 || surges - test level: level 4 B (1.2/50 µs) conforming to EN 61000-4-5 || conducted RF disturbances - test level: 10 V conforming to EN 61000-4-6 || conducted RF disturbances conforming to CISPR 11 || magnetic field at power frequency - test level: 30 A/m class 5 conforming to EN 61000-4-8 || voltage dips and interruptions immunity test - test level: 100 %, 20 ms B conforming to EN 61000-4-11 || voltage dips and interruptions immunity test - test level: 60 %, 200 ms B conforming to EN 61000-4-11 || voltage dips and interruptions immunity test - test level: 30 %, 500 ms conforming to EN 61000-4-11
• Ip Degree Of Protection
  • IP40 front panel (in enclosure)) || IP30 casing) || IP20 terminal block)
• Mechanical Robustness
  • vibrations in operation1 Gn, 5 Hz...150 Hz IEC 60068-2-6 || vibrations de-energized1 Gn, 5 Hz...150 Hz IEC 60068-2-6 || shocks in operation10 Gn for 11 ms IEC 60068-2-27 || shocks de-energized15 Gn for 11 ms IEC 60068-2-27 || jolts de-energized100 jolts/axle, 15 Gn for 6 ms IEC 60068-2-29 || free fall resistance1.2 m
• Pollution Degree
  • 2
• Relative Humidity
  • 5-95 % 55-55 °C without condensation

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI100609EN
• Environmental Disclosure
  • ENVPEP090601EN_V0
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Communication Gateway
  • Ethernet/fieldbus
• Device Application
  • gateway
• Device Short Name
  • Link150
• Number Of Port
  • 2
• Product Name
  • Link
• Product Or Component Type
  • gateway
• Range
  • Enerlin'X
• Supply
  • power supply device PoE IEEE 802.3af
• [Us] Rated Supply Voltage
  • external supply 19.2...26.4 V DC, <500 mA
