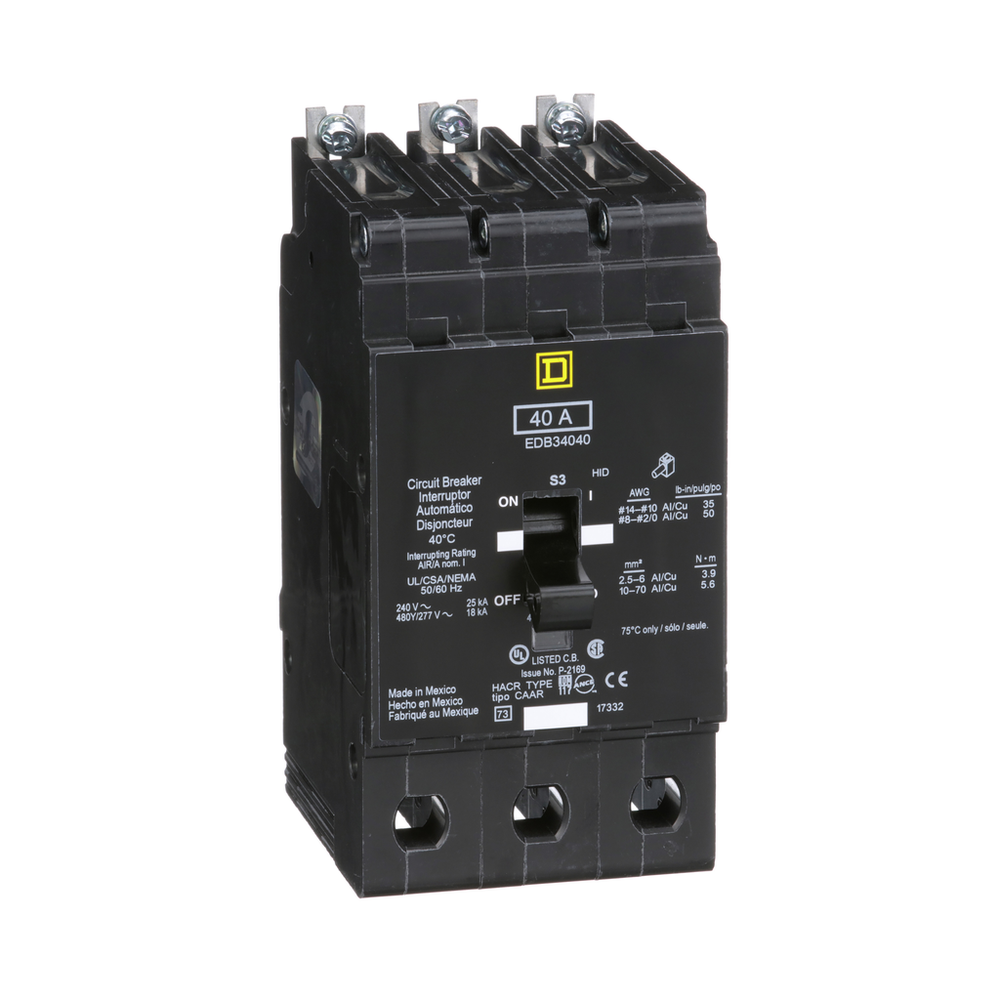

Schneider Electric EDB34040
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 3 pole bolt-on breaker that is rated at 40 A at a system voltage of 480Y/277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HID rated and HACR rated. The breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 2/0 (aluminium) and AWG 14...AWG 2/0 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but at two voltages the capacity is 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC. This device has a hold current of 630 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 2.94 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.Mini circuit breaker, E-Frame, 40A, 3 pole, 480Y/277 VAC, 25 kA max, bolt on
Schneider Electric EDB34040 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Breaking Capacity
- 18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
- Breaking Capacity Code
- D
- Circuit Breaker Application
- HACR rated || HID rated
- Depth
- 4.05 in
- Electrical Connection
- lugs aluminium
- Height
- 5.66 in
- Holding Current
- 630 A
- Line Rated Current
- 40 A
- Local Signalling
- trip indicator
- Mounting Mode
- bolt-on
- Net Weight
- 4 lb(US)
- Number Of Poles
- 3
- Number Of Spaces
- 3
- Number Of Spaces Required
- 3
- Product Destination
- NF panelboard
- Protection Type
- overload || short-circuit
- Tightening Torque
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 480Y/277 V AC
- Width
- 2.94 in
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 40 °C
- Product Certifications
- cULus
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Device Short Name
- EDB
- Module Type
- E-Frame
- Product Or Component Type
- miniature circuit-breaker
- Range Of Product
- 125 A Frame EDB-EGB-EJB
- Trip Unit Rating
- 1800-1800 A
