Description

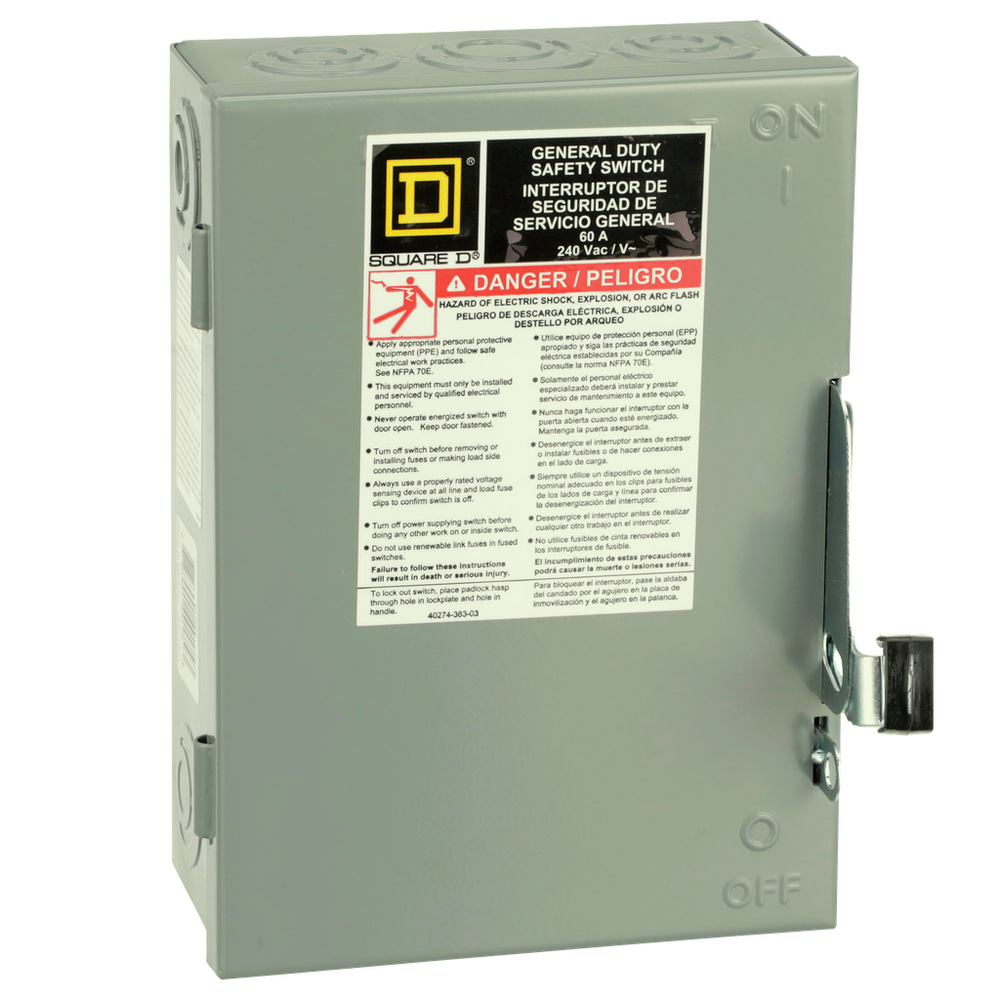

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 1 degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switches come with an 18 months warranty.Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
Schneider Electric DU322 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 12...AWG 3 aluminium || AWG 14...AWG 3 copper
- Depth
- 3.63 in
- Device Mounting
- surface
- Electrical Connection
- lugs
- Height
- 9.25 in
- Net Weight
- 9 kg
- Tightening Torque
- 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 35-35 lbf.in (AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
- Width
- 7.25 in
- Wiring Configuration
- 3-wire
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UL listed file E2875
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP1310005EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Application
- residential
- Device Composition
- none
- Disconnector Device Type
- non-fusible disconnect switch
- Line Rated Current
- 60 A
- Motor Power Hp
- 10 hp at 240 V AC 60 Hz for 1 phase motors || 15 hp at 240 V AC 60 Hz for 3 phase motors
- Nema Degree Of Protection
- NEMA 1
- Number Of Poles
- 3
- Phase
- 3 phase
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- general duty
- [Ue] Rated Operational Voltage
- 240 V AC
