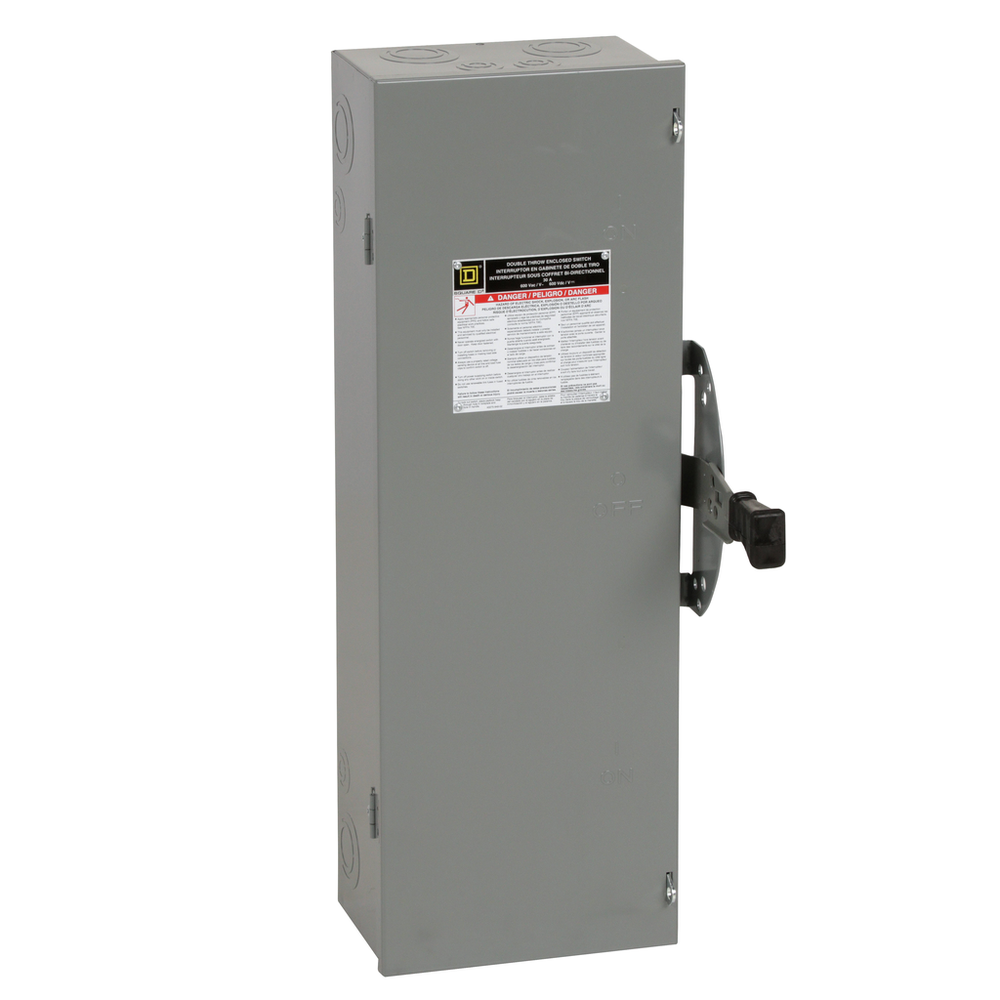

Schneider Electric DTU361
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and can be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 30A. This non-fusible disconnect switch is surface mounted and has a NEMA 1 protection rating. This Double Throw Safety Switch complies to UL listed certifications dimensions for this product are 11.96 in (H),29.94 in (W), 6.93 in (D). This product comes with an 18 month warranty.Safety switch, double throw, non fusible, 30A, 600V, 3 pole, 30hp, NEMA 1
Schneider Electric DTU361 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
- Depth
- 6.93 in
- Device Mounting
- surface
- Fuse Type
- H or K || R, J or T
- Height
- 29.94 in
- Net Weight
- 17.69 kg
- Short-Circuit Current
- 10 kA H or K || 200 kA R, J or T
- Tightening Torque
- 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 40-40 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 13.3-21.15 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-33.62 mm² (AWG 3...AWG 2)
- Width
- 11.96 in
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UL Listed
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP1307076EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Composition
- none
- Disconnector Device Type
- non-fusible disconnect switch
- Line Rated Current
- 30 A
- Nema Degree Of Protection
- NEMA 1
- Number Of Poles
- 3
- Product Or Component Type
- Double Throw Safety Switch
- Series Name
- heavy duty
- [Ue] Rated Operational Voltage
- 600 V AC || 600 V DC
