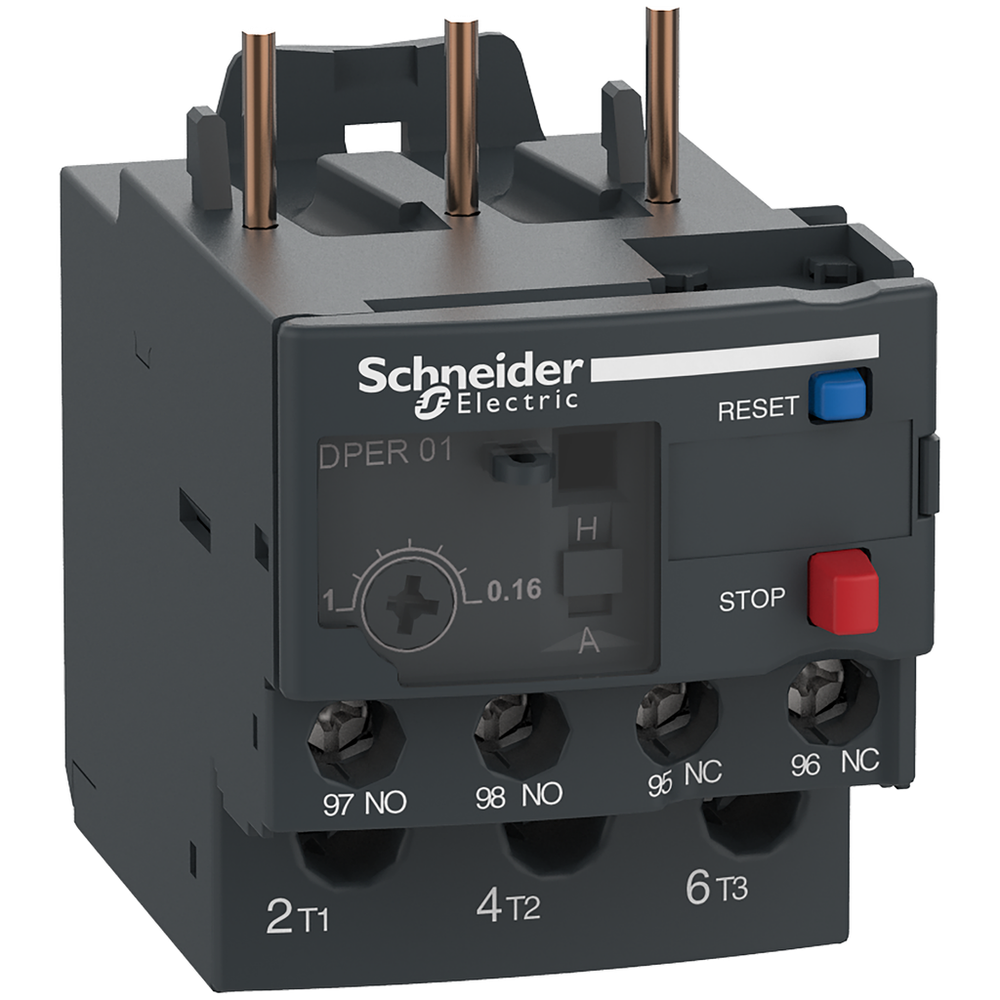

Schneider Electric DPER01
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Easy TeSys DPER thermal overload relay, 0.16A/690V, thermal setting range 0.1-0.16A, tripping class 10, for protection of 3-phase motors less than 0.06kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE09-D38. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (IEC, cUL), Green Premium compliant (RoHs/Reach).Thermal overload relay,Easy TeSys DPER,0.1-0.16A,class 10
Schneider Electric DPER01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
- Control Type
- Red push-button stop || Blue push-button reset
- Depth
- 70 mm
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Height
- 66 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Mounting Support
- separate, with specific accessories || under contactor
- Net Weight
- 0.124 kg
- Network Frequency
- 0...400 Hz
- Network Type
- DC || AC
- Permissible Current
- 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Protection Type
- BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit
- Surge Withstand
- 6 kV IEC 60801-5
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Width
- 45 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C without derating IEC 60947-4-1
- Ambient Air Temperature For Storage
- -60-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Product Certifications
- cUL
- Protective Treatment
- TH IEC 60068
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-7
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || cUL
- Temperature Compensation
- -20-60 °C
- Vibration Resistance
- 6 gn on plate IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI0802006
- Environmental Disclosure
- ENVPEP080206EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- DPER
- Product Compatibility
- contactor DPE09-38
- Product Name
- Easy TeSys DPER
- Product Or Component Type
- thermal overload relay
- Range
- Easy TeSys
- Relay Application
- overload protection
- Thermal Overload Class
- class 10 IEC 60947-4-1
- Thermal Protection Adjustment Range
- 0.1-0.16 A
- [Ui] Rated Insulation Voltage
- power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1
