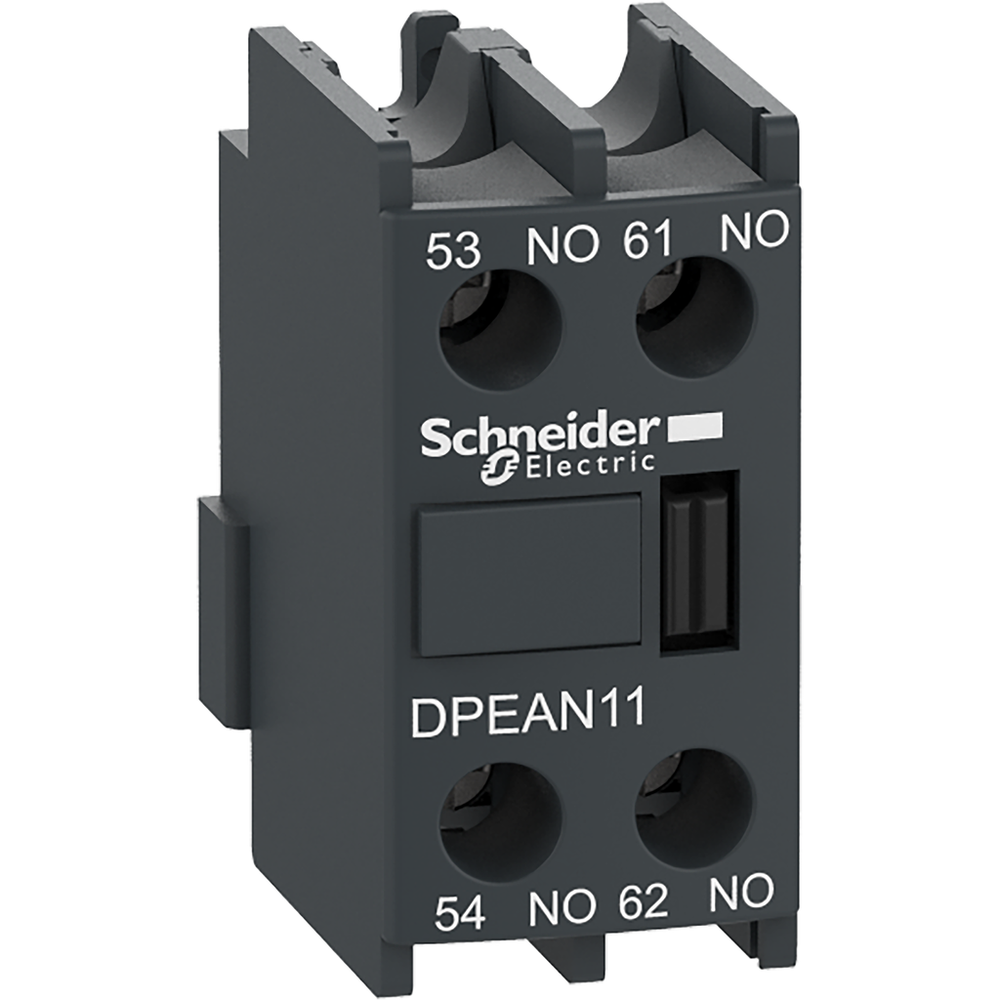

Schneider Electric DPEAN11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Easy TeSys DPE auxiliary contact block. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the overload relays , connection by screw clamp terminals. Multi standards certified (CSA, UL), Green Premium compliant (RoHS/REACh).Auxiliary contact block,Easy TeSys DPE,1NO+1NC
Schneider Electric DPEAN11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gG
- Connections - Terminals
- screw clamp terminals1 1-2.5 mm² - rigid || screw clamp terminals2 1-2.5 mm² - rigid || screw clamp terminals1 1-2.5 mm² - flexible with or without cable end || screw clamp terminals2 1-2.5 mm² - flexible with or without cable end || screw clamp terminals AWG 10...AWG 18)
- Insulation Resistance
- > 10 MOhm
- Mechanical Durability
- 30 Mcycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Mounting Location
- front
- Non-Overlap Time
- 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
- Tightening Torque
- 1.2 N.m Philips No 2 || 1.2 N.m flat Ø 6 mm
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Characteristic
- normal environment
- Ip Degree Of Protection
- IP20 conforming to VDE 0106
- Operating Altitude
- 9842.52 ft (3000 m)
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
- Product Certifications
- UL || CSA
- Protective Treatment
- TH IEC 60068
- Standards
- IEC 60947-5-1 || EN 60947-5-1 || UL 60947-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110807EN_V2
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Auxiliary Contacts Operation
- instantaneous
- Device Short Name
- DPEAN
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C
- Permissible Short-Time Rating
- 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
- Product Or Component Type
- auxiliary contact block
- Range
- Easy TeSys
- Range Compatibility
- Easy TeSys (Easy TeSys DPE) contactor
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
