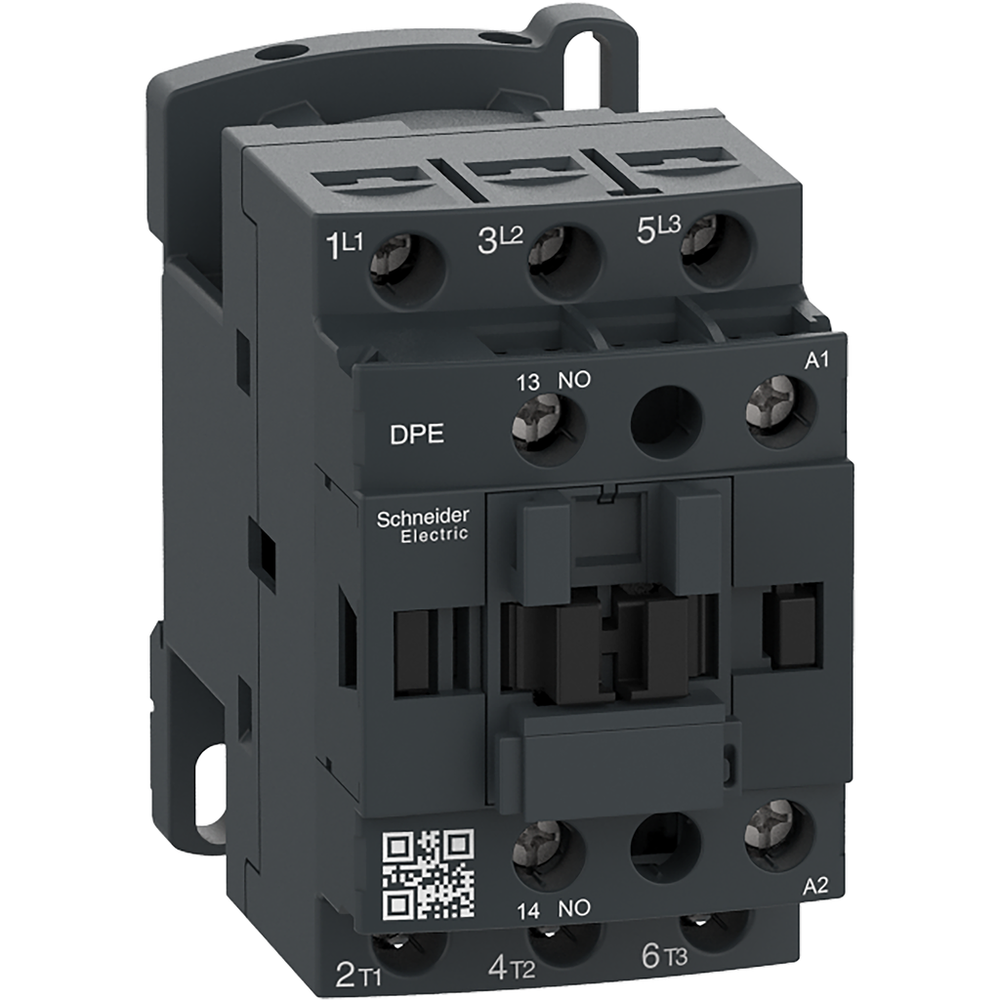

Schneider Electric DPE25U7

Complementary

• Associated Fuse Rating
  • 10 A gG signalling circuit IEC 60947-5-1 || 50 A gG <= 690 V type 1 power circuit || 35 A gG <= 690 V type 2 power circuit
• Auxiliary Contacts Type
  • mechanically linked 1 NO IEC 60947-5-1
• Average Impedance
  • 2.5 mOhm - Ith 32 A 50 Hz power circuit
• Coil Technology
  • without built-in suppressor module
• Connections - Terminals
  • power circuit screw clamp terminals 1 1-4 mm² flexible without cable end || power circuit screw clamp terminals 2 1-4 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit screw clamp terminals 1 1-4 mm² solid without cable end || power circuit screw clamp terminals 2 1-4 mm² solid without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 1 1-4 mm² solid without cable end || control circuit screw clamp terminals 2 1-4 mm² solid without cable end
• Control Circuit Type
  • AC 50/60 Hz
• Control Circuit Voltage Limits
  • drop-out 0.3...0.6 Uc 50/60 Hz 70 °C) || operational 0.8...1.1 Uc 50 Hz 60 °C) || operational 0.85...1.1 Uc 60 Hz 60 °C) || operational 1...1.1 Uc 50/60 Hz 70 °C)
• Depth
  • 86 mm
• Electrical Durability
  • 1 Mcycles 25 A AC-3 <= 440 V || 0.6 Mcycles 32 A AC-1 <= 440 V
• Heat Dissipation
  • 2-3 W 50/60 Hz
• Height
  • 77 mm
• Hold-In Power Consumption In Va
  • 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C)
• Inrush Power In Va
  • 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C)
• Insulation Resistance
  • > 10 MOhm signalling circuit
• Irms Rated Making Capacity
  • 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 300 A 440 V power circuit IEC 60947
• [Ith] Conventional Free Air Thermal Current
  • 10 A 60 °C signalling circuit || 32 A 60 °C power circuit
• Maximum Operating Rate
  • 3600 cyc/h 60 °C
• Mechanical Durability
  • 10 Mcycles
• Minimum Switching Current
  • 5 mA signalling circuit
• Minimum Switching Voltage
  • 17 V signalling circuit
• Mounting Support
  • rail || plate
• Net Weight
  • 0.33 kg
• Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Operating Time
  • 12...22 ms closing || 4...19 ms opening
• Power Dissipation Per Pole
  • 2.5 W AC-1 || 0.8 W AC-3
• Rated Breaking Capacity
  • 300 A 440 V power circuit IEC 60947
• Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Signalling Circuit Frequency
  • 25...400 Hz
• Tightening Torque
  • power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2
• [Ue] Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
• Width
  • 45 mm

Environment

• Ambient Air Temperature For Operation
  • -40-60 °C
• Ambient Air Temperature For Storage
  • -60-80 °C
• Fire Resistance
  • 850 °C IEC 60695-2-1
• Ip Degree Of Protection
  • IP20 front face IEC 60529
• Mechanical Robustness
  • vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Overvoltage Category
  • III
• Pollution Degree
  • 3
• Product Certifications
  • UL || CSA
• Standards
  • CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV IEC 60947
• [Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Pro-active China RoHS declaration (out of China RoHS legal scope)
• Circularity Profile
  • ENVEOLI1501004
• Environmental Disclosure
  • ENVPEP1501004
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Toxic Heavy Metal Free
  • Yes

Specifications

• Auxiliary Contact Composition
  • 1 NO
• Contactor Application
  • resistive load || motor control
• Device Short Name
  • DPE
• [Ie] Rated Operational Current
  • 25 A 60 °C) <= 440 V AC AC-3 power circuit || 32 A 60 °C) <= 440 V AC AC-1 power circuit
• Maximum Horse Power Rating
  • 1 hp 115 V at AC 50/60 Hz for 1 phase || 3 hp 230/240 V at AC 50/60 Hz for 1 phase || 5 hp 200/208 V at AC 50/60 Hz for 3 phase || 5 hp 230/240 V at AC 50/60 Hz for 3 phase || 10 hp 460/480 V at AC 50/60 Hz for 3 phase || 15 hp 575/600 V at AC 50/60 Hz for 3 phase
• Motor Power Kw
  • 5.5 kW 220...230 V AC 50/60 Hz || 11 kW 380...400 V AC 50/60 Hz || 11 kW 415 V AC 50/60 Hz || 11 kW 440 V AC 50/60 Hz || 15 kW 500 V AC 50/60 Hz || 15 kW 660...690 V AC 50/60 Hz
• Pole Contact Composition
  • 3 NO
• Poles Description
  • 3P
• Product Name
  • Easy TeSys DPE
• Product Or Component Type
  • contactor
• Range
  • Easy TeSys
• [Uc] Control Circuit Voltage
  • 240 V AC 50/60 Hz
• Utilisation Category
  • AC-4 || AC-1 || AC-3
