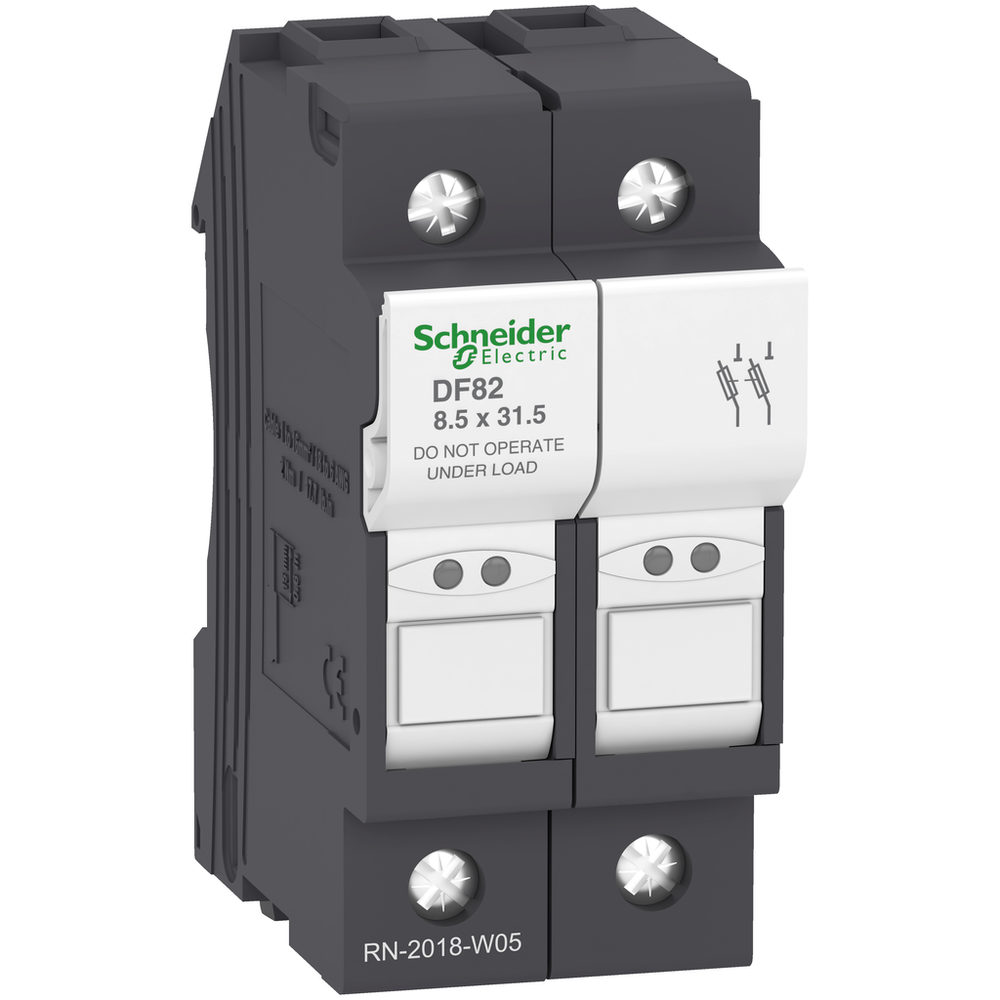

Schneider Electric DF82
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, EAC, Marine), Green Premium product (RoHS/REACh).Fuse carrier, TeSys DF, 2P, 25A, 400VAC, fuse size 8.5x31.5mm
Schneider Electric DF82 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamp terminals 1 1-16 mm²rigid || screw clamp terminals 2 1-6 mm²rigid || screw clamp terminals 1 1-16 mm²flexible with or without || screw clamp terminals 2 1-6 mm²flexible with or without
- Depth
- 61 mm
- Height
- 79.5 mm
- Mounting Position
- vertical +/- 23°)
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.085 kg
- Product Certifications
- IEC || EAC || DNV-GL
- Quantity Per Set
- set of 6
- Standards
- EN/IEC 60947-3 || EN/IEC 60269-2
- Tightening Torque
- 2.2 N.m PZ2 || 2.2 N.m flat Ø 5.5 mm
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C with derating above 20°C
- Ambient Air Temperature For Storage
- -40-70 °C
- Compatibility Code
- DF8
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating
- Pollution Degree
- 3
Offer Sustainability
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP2010021EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Type
- toggle padlockable
- Device Short Name
- DF8
- Fuse Size
- 8.3 x 31.5 mm
- Fuse Type
- , gG || , aM
- [Ie] Rated Operational Current
- 25 A 400 V AC
- [Ith] Conventional Free Air Thermal Current
- 25 A 20 °C
- Overvoltage Category
- III
- Poles Description
- 2P
- Power Dissipation In W
- 2.5 W maximum power dissipation by fuse
- Product Compatibility
- DF2BA fuse cartridge || DF2BN fuse cartridge
- Product Name
- TeSys DF
- Product Or Component Type
- fuse carrier
- Range
- TeSys
- Short-Circuit Withstand
- 20 kA 400 V IEC 60947-3
- [Ue] Rated Operational Voltage
- 400 V AC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- [Ui] Rated Insulation Voltage
- 500 V AC
- Utilisation Category
- AC-20B IEC 60947-3
