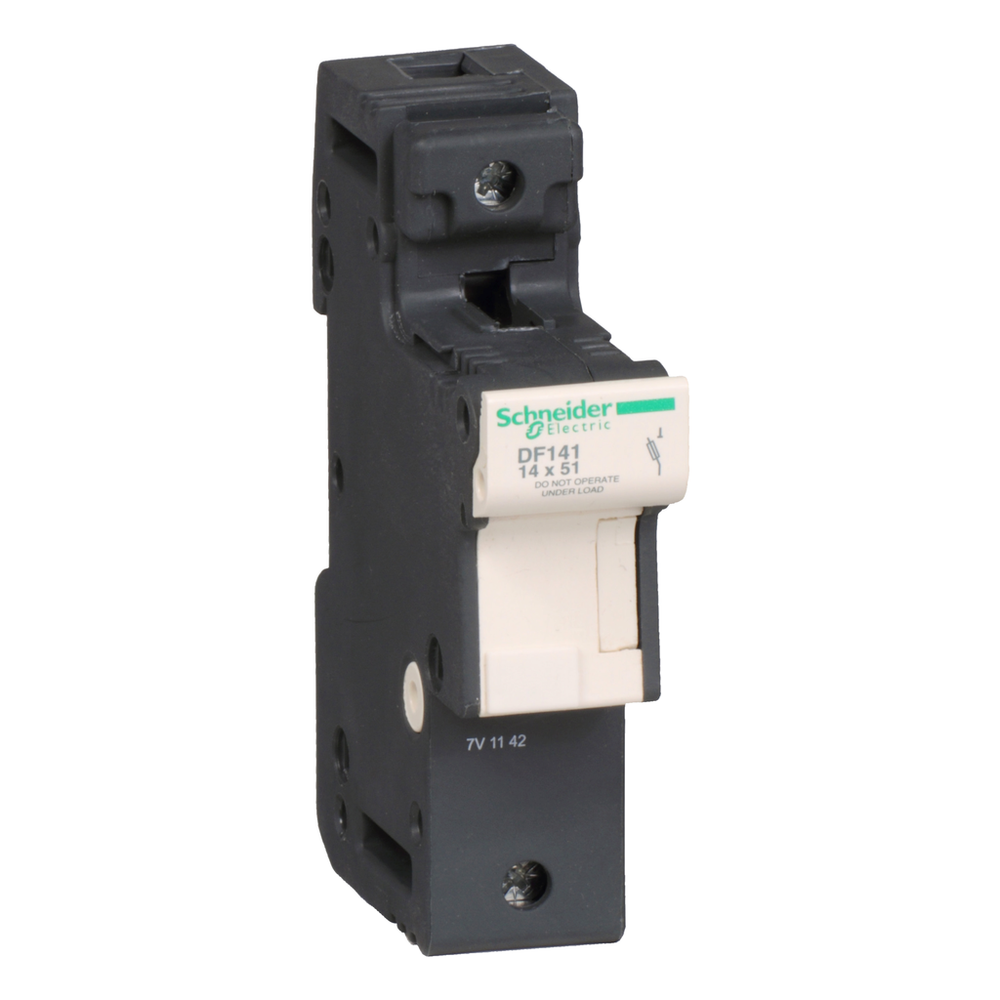

Schneider Electric DF141
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).Fuse carrier, TeSys DF, 1P, 50A, 690VAC, fuse size 14x51mm
Schneider Electric DF141 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamp terminals 1 2.5-25 mm²rigid || screw clamp terminals 2 2.5-10 mm²rigid || screw clamp terminals 1 2.5-25 mm²flexible with or without || screw clamp terminals 2 2.5-10 mm²flexible with or without
- Depth
- 76.5 mm
- Height
- 110.8 mm
- Mounting Position
- vertical +/- 23°)
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.140 kg
- Product Certifications
- IEC || UL Recognized || CSA || EAC
- Quantity Per Set
- set of 6
- Standards
- EN/IEC 60947-3 || EN/IEC 60269-2 || UL 4248-1 || CSA C22.2 No 4248-1
- Tightening Torque
- 3.5 N.m
- Width
- 26.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-60 °C with derating above 20°C
- Ambient Air Temperature For Storage
- -40-80 °C
- Compatibility Code
- DF14
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Protective Treatment
- TH
Offer Sustainability
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP2010021EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Type
- toggle
- Device Short Name
- DF14
- Fuse Size
- 14 x 51 mm
- Fuse Type
- , gG || , aM
- [Ie] Rated Operational Current
- 50 A
- [Ipk] Rated Peak Withstand Current
- 15 kA with tubular links IEC 60269-1
- Poles Description
- 1P
- Product Compatibility
- DF2EA fuse cartridge || DF2EN fuse cartridge
- Product Name
- TeSys DF
- Product Or Component Type
- fuse carrier
- Range
- TeSys
- Short-Circuit Withstand
- 120 kA 400 V IEC 60947-3 || 120 kA 500 V IEC 60947-3 || 80 kA 690 V IEC 60947-3
- [Ue] Rated Operational Voltage
- 690 V AC || 690 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 690 V AC
