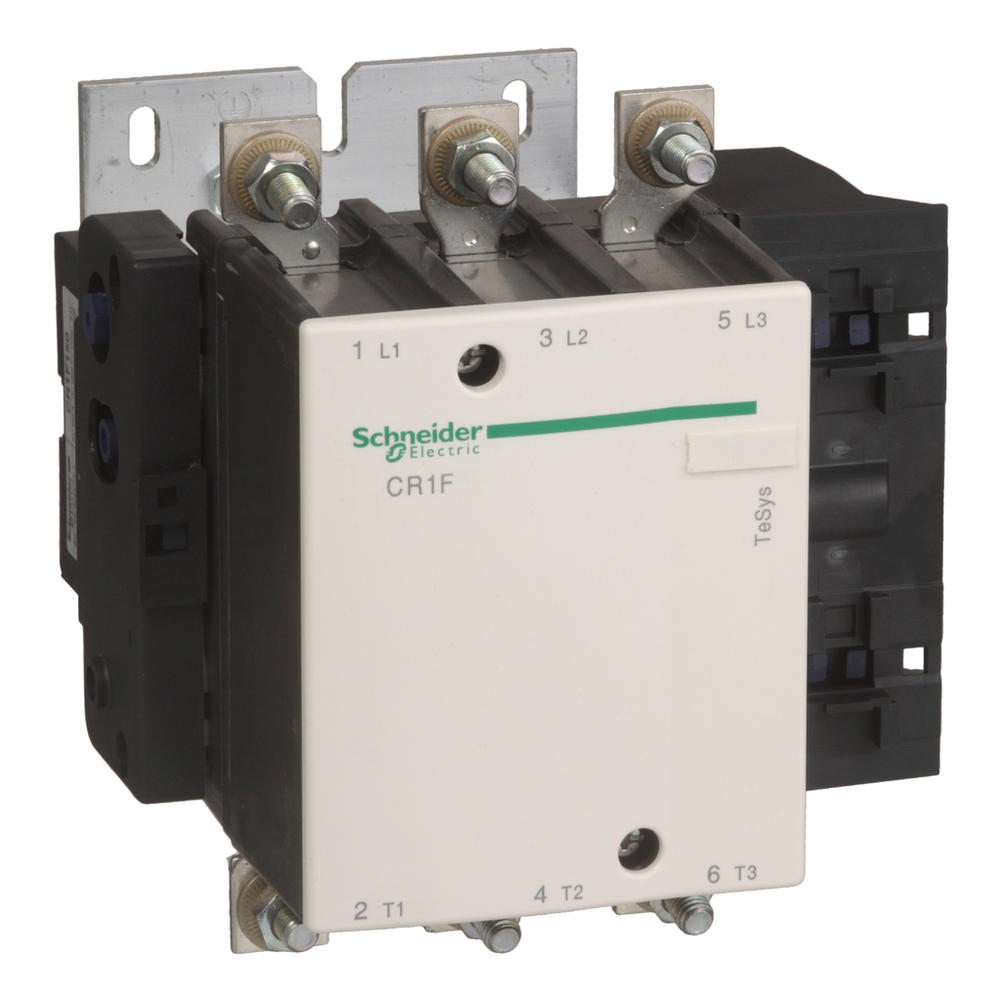

Schneider Electric CR1F265M7
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys F magnetic latching contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4, Green Premium product (RoHS/REACh).Magnetic latching contactor,TeSys F,3P(3NO),AC-3 <=440V 265A,220-230V DC coil
Schneider Electric CR1F265M7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption
- 1800 VA AC 50...400 Hz latching || 12 VA AC 50...400 Hz unlatching || 1800 VA DC latching || 12 VA DC unlatching
- Control Circuit Voltage Limits
- latching 0.85...1.1 Uc || unlatching 0.85...1.1 Uc
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -15-70 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Depth
- 213 mm
- Height
- 203 mm
- Net Weight
- 7.4 kg
- Operating Altitude
- 9842.52 ft (3000 m) without derating
- Protective Treatment
- TC
- Width
- 201.5 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI100418
- Environmental Disclosure
- ENVPEP080208EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Associated Fuse Rating
- 315 A aM <= 440 V || 400 A BS88 <= 440 V || 400 A gG <= 440 V
- Average Impedance
- 0.32 mOhm - Ith 350 A 50 Hz
- Connections - Terminals
- lugs-ring terminals 1 240-240 mm² || connector 1 240-240 mm² || bars 2 32 x 4 mm || power circuit bolted connection
- Contactor Application
- resistive load || motor control
- Control Circuit Type
- AC 50...400 Hz || DC standard
- Device Application
- control
- Device Short Name
- CR1F
- [Icw] Rated Short-Time Withstand Current
- 2200 A 40 °C - 1 s || 2200 A 40 °C - 5 s || 2200 A 40 °C - 10 s || 1230 A 40 °C - 30 s || 950 A 40 °C - 1 min || 620 A 40 °C - 3 min || 480 A 40 °C - 10 min
- [Ie] Rated Operational Current
- 265 A 40 °C) <= 440 V AC AC-3 || 350 A 40 °C) <= 440 V AC AC-1 || 245 A 40 °C) <= 440 V AC AC-4
- Irms Rated Making Capacity
- 2940 A
- Maximum Operating Rate
- 120 cyc/h 40 °C
- Mechanical Durability
- 1 Mcycles
- Motor Power Kw
- 132 kW 400 V AC 50/60 Hz AC-4)
- Operating Time
- 40...75 ms latching || 50...100 ms unlatching
- Pole Contact Composition
- 3 NO
- Poles Description
- 3P
- Power Dissipation Per Pole
- 22 W AC-3 || 39 W AC-1
- Product Certifications
- CB Scheme || UL || CSA || EAC || CE || UKCA
- Product Name
- TeSys F
- Product Or Component Type
- magnetic latching contactor
- Range
- TeSys
- Rated Breaking Capacity
- 2450 A 220...440 V || 2200 A 500 V || 800 A 1000 V || 1700 A 660/690 V
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || JIS C8201-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Tightening Torque
- 35 N.m
- [Uc] Control Circuit Voltage
- 220...230 V AC 50...400 Hz || 220...230 V DC
- [Ue] Rated Operational Voltage
- 1000 V AC 25...200 Hz
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60158-1 || 1000 V IEC 60947-4 || 1000 V BS 775 || 1500 V VDE 0110 group C
- Utilisation Category
- AC-4 || AC-3 || AC-1
