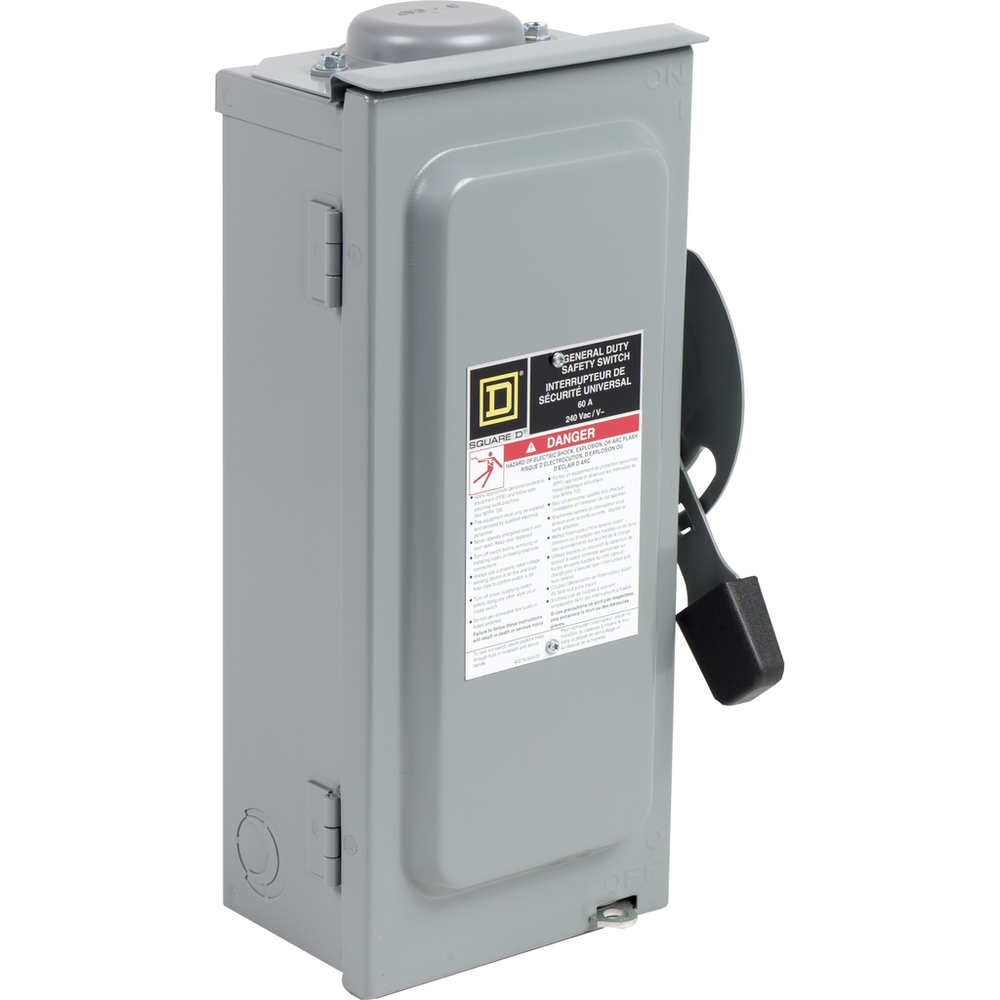

Schneider Electric CD322NRB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminium. This switch is certified to UL standards Dinemsions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.Safety switch, general duty, fusible, 60A, 120/240 VAC, 3 poles, 30 hp, solid neutral, NEMA 3R with bolt on hub
Schneider Electric CD322NRB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 14...AWG 3 copper or aluminium
- Depth
- 4.87 in
- Device Composition
- neutral (factory installed)
- Device Mounting
- surface
- Disconnector Device Type
- fusible disconnect
- Electrical Connection
- lugs
- Height
- 14.88 in
- Number Of Poles
- 3
- Short-Circuit Current
- 100 kA maximum cartridge
- Tightening Torque
- 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Width
- 7.45 in
Contractual warranty
- Warranty
- 18 months
Environment
- Nema Degree Of Protection
- NEMA 3R galvannealed steel
- Product Certifications
- CSA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1304031
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- general duty
