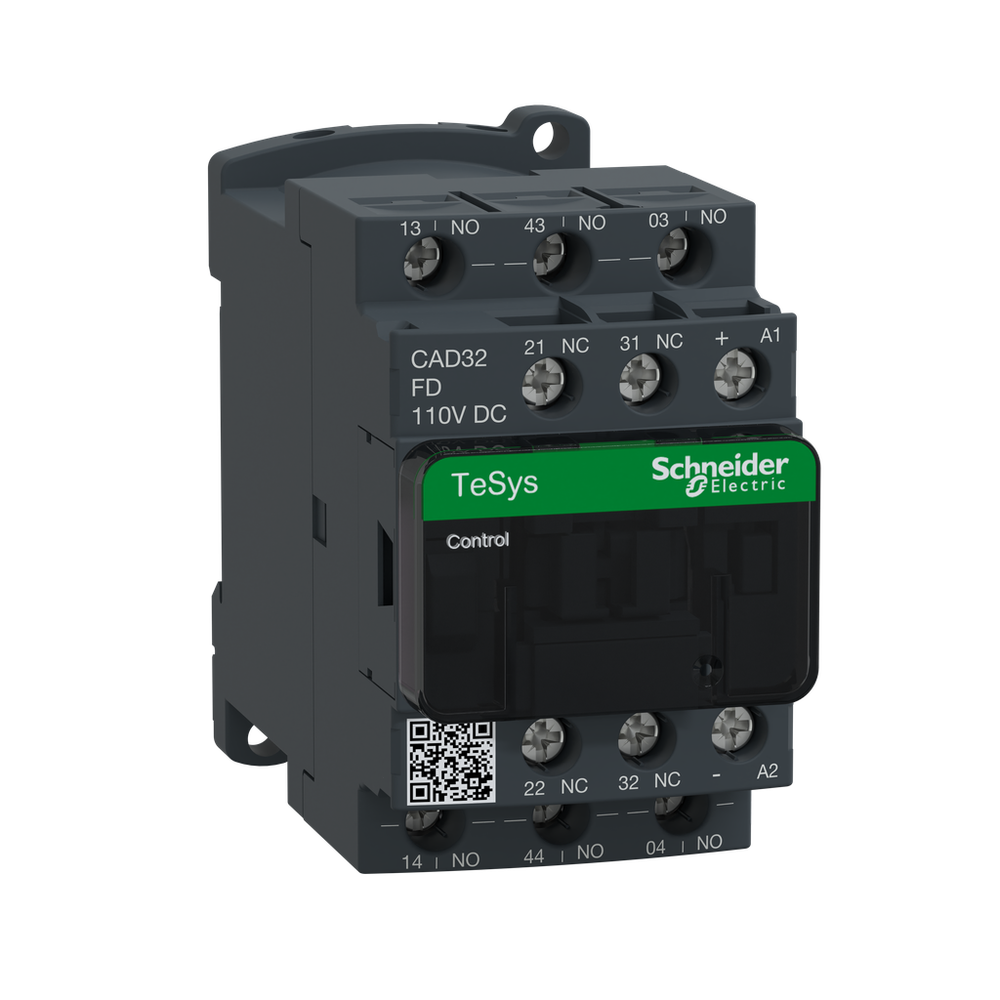

Schneider Electric CAD32FD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 110 V DC standard coil
Schneider Electric CAD32FD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gG IEC 60947-5-1
- Connections - Terminals
- screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end
- Control Circuit Type
- DC standard
- Control Circuit Voltage Limits
- 0.1...0.25 Uc -40-70 °C drop-out DC || 0.7...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC
- Depth
- 93 mm
- Height
- 77 mm
- Hold-In Power Consumption In W
- 5.4-5.4 W 20 °C
- [Icw] Rated Short-Time Withstand Current
- 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
- Inrush Power In W
- 5.4-5.4 W 20 °C)
- Insulation Resistance
- > 10 MOhm
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C
- Maximum Operating Rate
- 180 cyc/mn
- Mechanical Durability
- 30 Mcycles
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Mounting Support
- rail || plate
- Net Weight
- 0.58 kg
- Non-Overlap Time
- 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
- Operating Time
- 53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening || 47...63 ms coil energisation and NC opening || 15...25 ms coil de-energisation and NC closing
- Pole Contact Composition
- 3 NO + 2 NC
- Tightening Torque
- 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
- Time Constant
- 28 ms
- [Uc] Control Circuit Voltage
- 110 V DC
- [Ue] Rated Operational Voltage
- <= 690 V AC 25...400 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage
- 600 V UL || 600 V CSA || 690 V IEC 60947-5-1
- Utilisation Category
- AC-15 || DC-13 || AC-14
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP2X front face VDE 0106
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Protective Treatment
- TH IEC 60068
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1102030EN
- Environmental Disclosure
- ENVPEP110230EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- control circuit
- Device Short Name
- CAD
- Product Name
- TeSys CAD
- Product Or Component Type
- control relay
- Range
- TeSys || TeSys Deca
