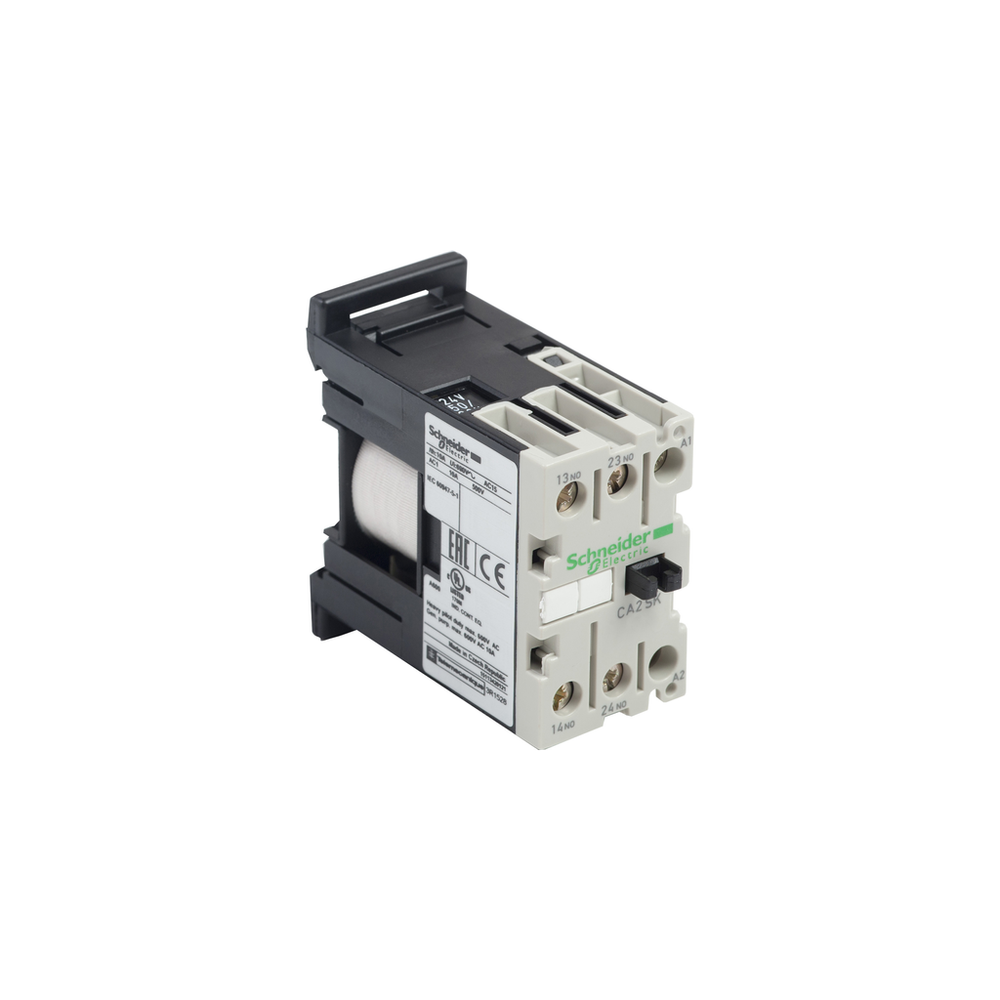

Schneider Electric CA2SK20F7
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).Control relay, TeSys SK, 2NO, <= 690V, 110V AC coil
Schneider Electric CA2SK20F7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gL VDE 0660 || 10 A gL IEC 60947
- Connections - Terminals
- screw clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible without cable end || screw clamp terminals 1 0.35-6 mm²flexible with cable end || screw clamp terminals 2 0.35-1.5 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible without cable end
- Control Circuit Voltage Limits
- drop-out 0.2...0.75 Uc 50 °C) || operational 0.85...1.1 Uc 50 °C)
- Depth
- 55.5 mm
- Heat Dissipation
- 1.4-1.4 W
- Height
- 56 mm
- Hold-In Power Consumption In Va
- 4.2-4.2 VA 20 °C)
- Inrush Power In Va
- 16-16 VA 20 °C)
- [Ith] Conventional Free Air Thermal Current
- 10 A 55 °C
- Maximum Operating Rate
- 1200 cyc/h
- Mechanical Durability
- 10 Mcycles
- Mounting Support
- rail || plate
- Net Weight
- 0.132 kg
- Operating Time
- 6...8 ms coil de-energisation and NO opening || 7...14 ms coil energisation and NO closing
- Tightening Torque
- 0.8 N.m screw clamp terminals pozidriv No 1
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
- Width
- 27 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -50-70 °C
- Ip Degree Of Protection
- IP2X
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Product Certifications
- CB Scheme || cULus || EAC || CE || UKCA
- Protective Treatment
- TC IEC 60068
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1503003EN
- Environmental Disclosure
- ENVPEP1503003EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- control circuit
- Control Circuit Type
- AC 50/60 Hz
- Device Short Name
- CA2SK
- Pole Contact Composition
- 2 NO
- Product Name
- TeSys CASK
- Product Or Component Type
- control relay
- Range
- TeSys
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz
- Utilisation Category
- AC-15 || DC-13
