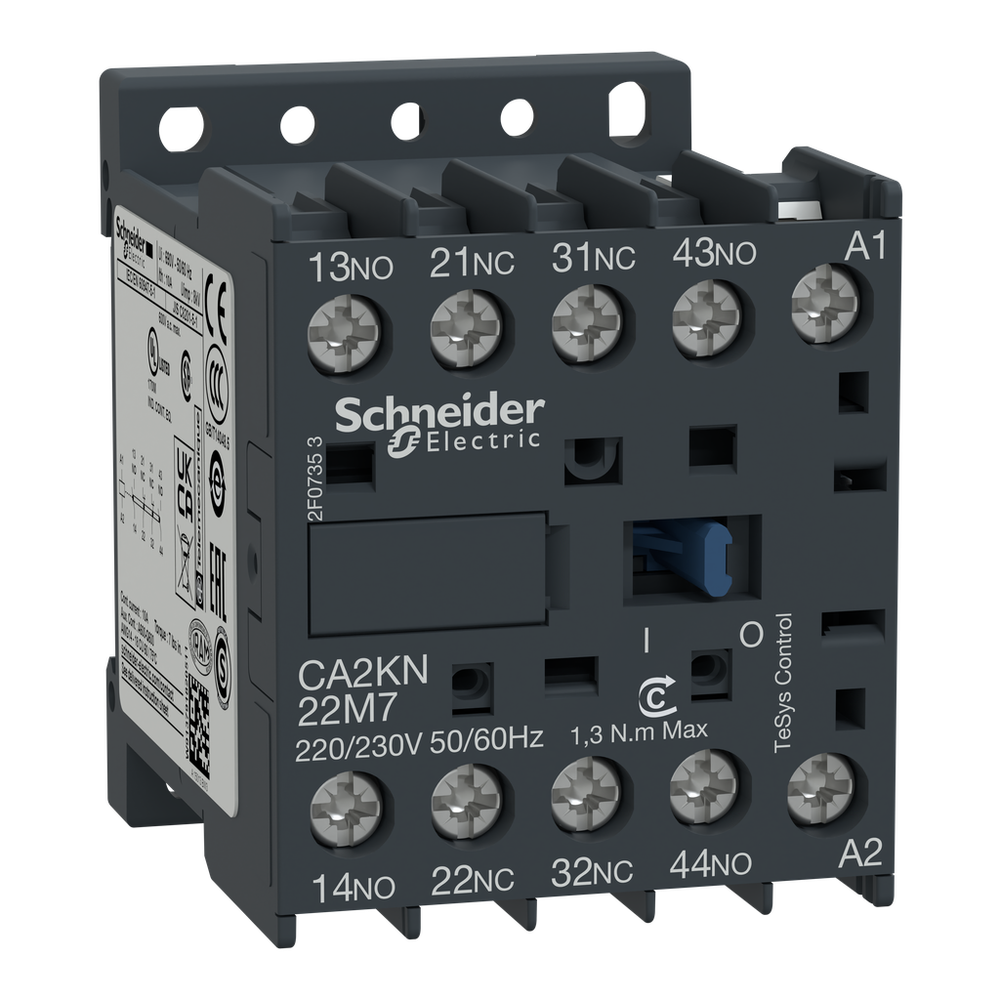

Schneider Electric CA2KN22T7
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Control relay, TeSys K, 2NO+2NC, <= 690V AC 10A, 480V AC coil
Schneider Electric CA2KN22T7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gG <= 690 V IEC 60947 || 10 A gG <= 690 V VDE 0660
- Control Circuit Voltage Limits
- drop-out <= 0.2 Uc 50/60 Hz 50 °C) || operational 0.8...1.15 Uc 50/60 Hz 50 °C)
- Depth
- 57 mm
- Flame Retardance
- class C2 conforming to NF F 16-101 || class C2 conforming to NF F 16-102 || V1 conforming to UL 94
- Height
- 58 mm
- Hold-In Power Consumption In Va
- 4.5-4.5 VA 20 °C)
- Inrush Power In Va
- 30-30 VA 20 °C)
- Insulation Resistance
- > 10 MOhm
- [Ith] Conventional Free Air Thermal Current
- 10 A 50 °C
- Maximum Operating Rate
- 10000 cyc/h 20 °C
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Net Weight
- 0.18 kg
- Non Overlap Distance
- 0.5 m
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts
- Operating Time
- 10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing || 15...25 ms coil de-energisation and NC closing || 5...15 ms coil energisation and NC opening
- Tightening Torque
- 0.8-1.3 N.m screw clamp terminals 1.5-4 mm² Philips M6
- [Ue] Rated Operational Voltage
- <= 690 V AC <= 400 Hz
- [Ui] Rated Insulation Voltage
- 690 V BS 5424 || 690 V IEC 60947 || 750 V VDE 0110 group C || 600 V CSA C22.2 No 14
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-50 °C
- Ambient Air Temperature For Storage
- -50-80 °C
- Heat Dissipation
- 1.3-1.3 W 50/60 Hz
- Immunity To Microbreaks
- 2 ms
- Ip Degree Of Protection
- IP2X conforming to VDE 0106
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Product Certifications
- UL || CSA || UKCA
- Protective Treatment
- TC IEC 60068
- Shock Resistance
- 10 gn control relay open || 15 gn control relay closed
- Standards
- VDE 0660 || NF C 63-140 || IEC 60947 || BS 5424
- Vibration Resistance
- 2 gn 5-300 Hz control relay open || 4 gn 5-300 Hz control relay closed
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI1503003EN
- Environmental Disclosure
- ENVPEP1503003EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Coil Technology
- without integral suppression device
- Coil Type
- standard
- Connections - Terminals
- 1 x 0.34-1.5 mm²flexible with cable end || 1 x 0.34-2.5 mm²flexible with cable end || 1 x 0.75-0.75 mm²flexible without cable end || 1 x 1.5-1.5 mm²solid || 2 x 4-4 mm²flexible without cable end || 2 x 4-4 mm²solid
- Contactor Application
- control circuit
- Control Circuit Type
- AC
- Device Short Name
- CA2K
- Pole Contact Composition
- 2 NO + 2 NC
- Product Name
- TeSys CAK
- Product Or Component Type
- control relay
- Range
- TeSys
- [Uc] Control Circuit Voltage
- 480 V AC 50/60 Hz
- Utilisation Category
- AC-15
