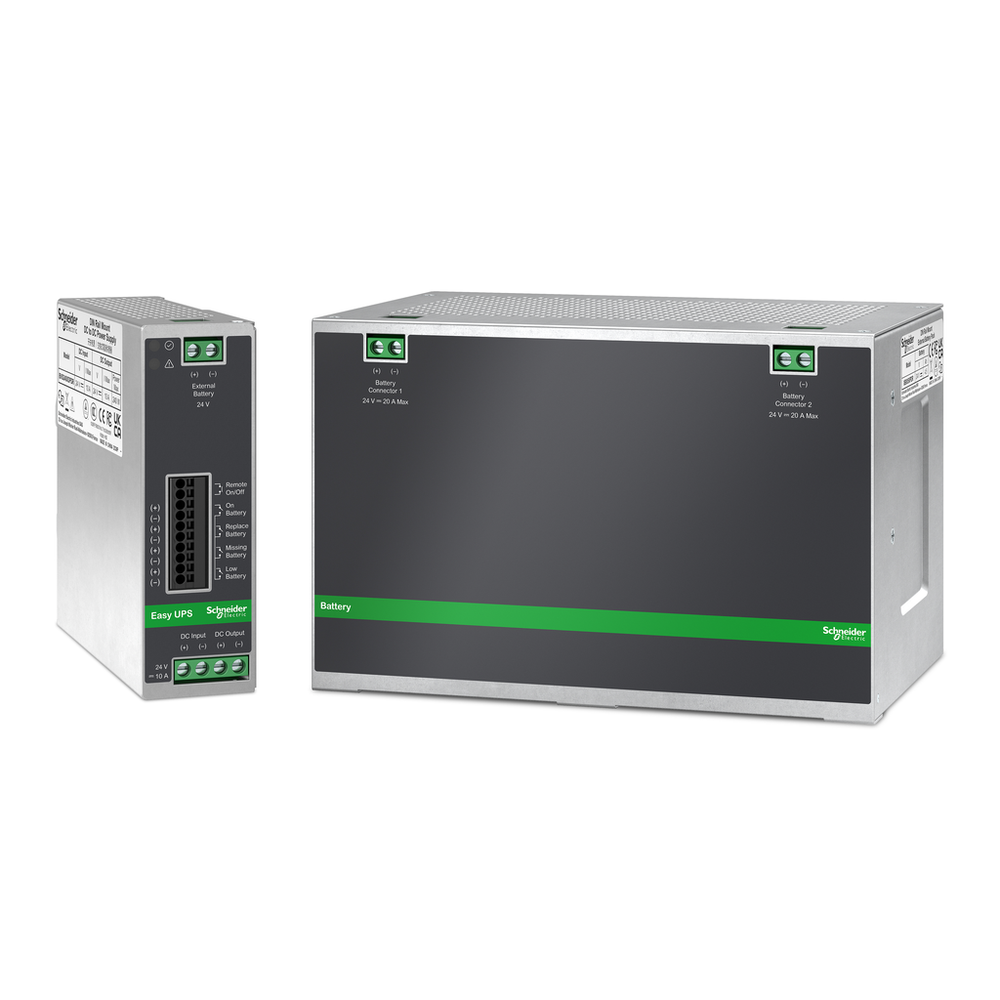

Schneider Electric BVS480XDPDR
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A
Schneider Electric BVS480XDPDR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Batteries & Runtime
- Battery Type
- external battery system
- Battery Voltage
- 24 V
Conformance
- Product Certifications
- CE || TÜV
- Standards
- UL 60950-1 || IEC 62368-1 || CSA-C22.2 No 62368-1-14 || IEC 61010-1
Contractual warranty
- Warranty
- 2 Years repair or replace
Environmental
- Acoustic Level
- 40 dB
- Ambient Air Temperature For Operation
- -15-50 °C
- Ambient Air Temperature For Storage
- -15-70 °C
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Relative Humidity
- 0-95 % non-condensing
- Storage Altitude
- 0-3000 m
- Storage Relative Humidity
- 0-95 % non-condensing
General
- Provided Equipment
- User Manual
Input
- Efficiency At Full Load
- 21.6...28.8 V 24 V DC
- Input Protection Type
- integrated fuse (not interchangeable) || against reverse polarity || protected against short-circuit
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Output
- Efficiency At Full Load
- 95 %
- Maximum Output Current
- 20 A
Overview
- Lead Time
- Usually in Stock
Physical
- Color
- metal grey
- Depth
- 119 mm
- Height
- 129 mm
- Mounting Mode
- DIN Rail Mount
- Mounting Position
- horizontal
- Net Weight
- 0.5 kg
- Width
- 40 mm
Specifications
- Connections - Terminals
- 1 2 pins
- Kw Rating
- 480 W
- Main Input Voltage
- 24 V DC
- Product Or Component Type
- uninterruptible power supply (UPS)
