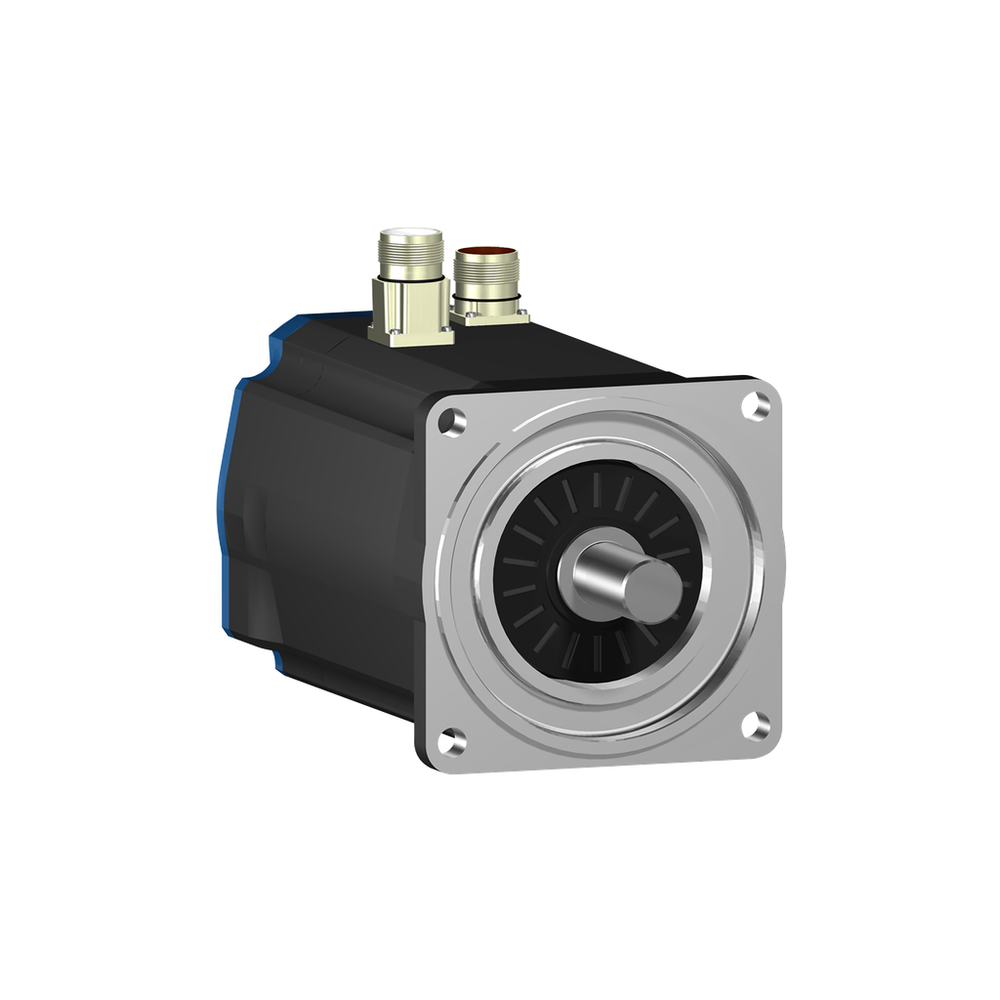

Schneider Electric BSH1404P31F1P
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole AC servo motor features maximum mechanical speed of 4000RPM and keyed shaft end with holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 21.3A and a continuous power of 4.33W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with straight connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 420.5mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 27.8kg. This range is compatible with Lexium 32 and Lexium 05 servo drives. This product is compatible with LXM05AD57N4 at 380V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.AC servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, keyed shaft, with brake, IP65
Schneider Electric BSH1404P31F1P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 104 V/krpm 120 °C
- Brake Pull-In Power
- 26 W
- Centring Collar Depth
- 3.5 mm
- Centring Collar Diameter
- 130 mm
- Circle Diameter Of The Mounting Holes
- 165 mm
- Continuous Power
- 4.33 W
- Continuous Stall Current
- 21.3 A
- Feedback Type
- single turn SinCos Hiperface
- Holding Torque
- 36 N.m holding brake
- Key Width
- 40 mm
- Length
- 420.5 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4
- Maximum Permanent Current
- 95.6 A
- Maximum Radial Force Fr
- 1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm
- Motor Flange Size
- 140 mm
- Mounting Holes Diameter
- 11 mm
- Net Weight
- 27.8 kg
- Number Of Motor Poles
- 10
- Number Of Motor Stacks
- 4
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 05 || Lexium 32
- Rotor Inertia
- 29.2 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 24 mm
- Shaft Length
- 50 mm
- Stator Electrical Time Constant
- 13.93 ms 20 °C
- Stator Inductance
- 3.9 mH 20 °C
- Stator Resistance
- 0.28 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 1.57 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase
- Device Short Name
- BSH
- Electrical Connection
- straight connectors
- Holding Brake
- with
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Maximum Mechanical Speed
- 4000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase
- Nominal Speed
- 2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase
- Nominal Torque
- 19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase
- Peak Stall Torque
- 103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase
- Product Compatibility
- LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn
