Schneider Electric BSH1003P12A1A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

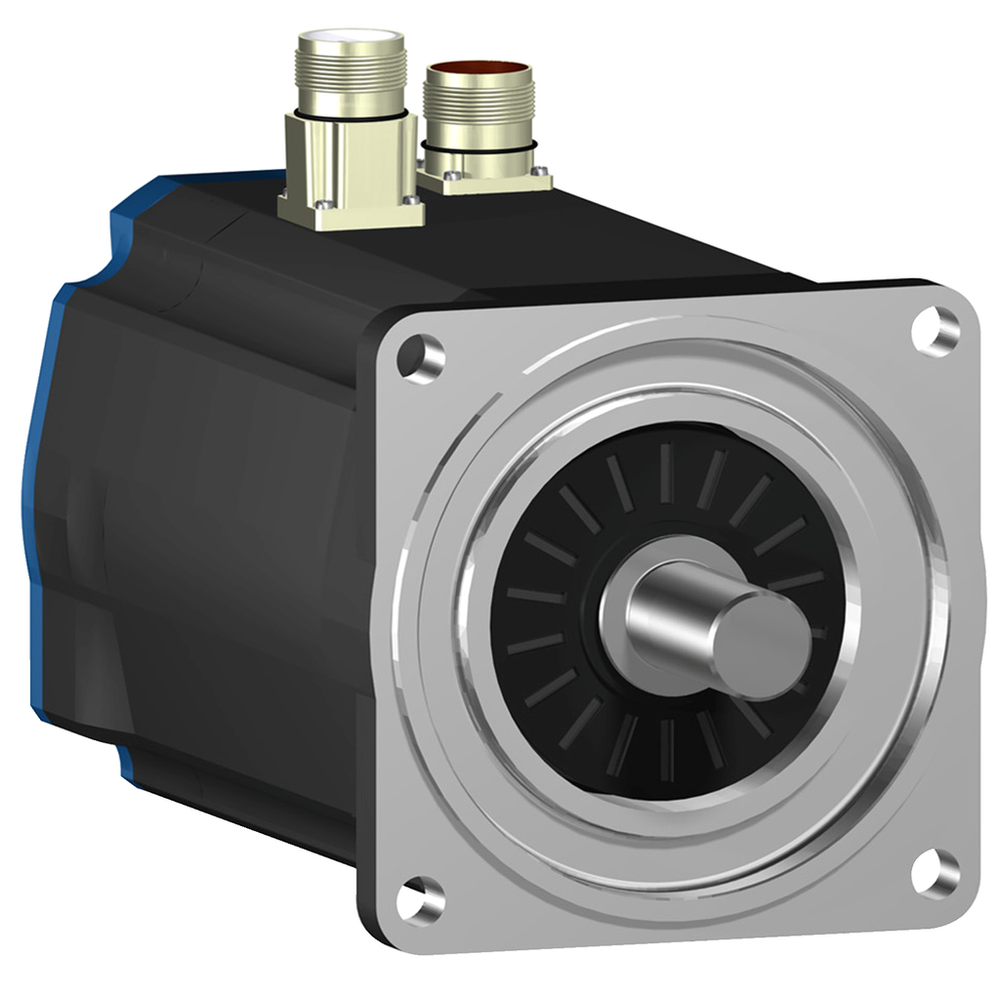

AC servo motor BSH, Lexium 05, 7.8N.m, 2500rpm, keyed shaft, without brake, IP50
Schneider Electric BSH1003P12A1A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 77 V/krpm 120 °C
- Centring Collar Depth
- 3.5 mm
- Centring Collar Diameter
- 95 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 3.14 W
- Continuous Stall Current
- 6.6 A
- Feedback Type
- multiturn SinCos Hiperface
- Key Width
- 30 mm
- Length
- 240.5 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 28.3 A LXM15LD21M3 || 28.3 A LXM05BD42M3X || 28.3 A LXM05BD34N4 || 28.3 A LXM05CD28M2 || 28.3 A LXM05CD42M3X || 28.3 A LXM05CD34N4 || 28.3 A LXM32.D30N4 || 28.3 A LXM15LD28M3 || 28.3 A LXM15LD17N4 || 28.3 A LXM15MD28N4 || 28.3 A LXM15MD40N4 || 28.3 A LXM05AD28M2 || 28.3 A LXM05AD42M3X || 28.3 A LXM05AD34N4 || 28.3 A LXM05BD28M2
- Maximum Permanent Current
- 28.3 A
- Maximum Radial Force Fr
- 1050 N 1000 rpm || 660 N 4000 rpm || 730 N 3000 rpm || 830 N 2000 rpm
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm
- Net Weight
- 7.4 kg
- Number Of Motor Poles
- 8
- Number Of Motor Stacks
- 3
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 32 || Lexium 15 || Lexium 05
- Rotor Inertia
- 3.22 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 19 mm
- Shaft Length
- 40 mm
- Stator Electrical Time Constant
- 6.15 ms 20 °C
- Stator Inductance
- 8.8 mH 20 °C
- Stator Resistance
- 1.43 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 1.22 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 8 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.7 N.m LXM15LD21M3, 230 V, three phase || 6.7 N.m LXM15LD17N4, 230 V, three phase || 6.7 N.m LXM15LD17N4, 400 V, three phase || 6.7 N.m LXM15LD17N4, 480 V, three phase || 7.8 N.m LXM15LD28M3, 230 V, three phase || 7.8 N.m LXM15MD28N4, 400 V, three phase || 7.8 N.m LXM15MD28N4, 480 V, three phase || 7.8 N.m LXM15MD40N4, 400 V, three phase || 7.8 N.m LXM15MD40N4, 480 V, three phase || 7.8 N.m LXM05AD34N4, 380...480 V, three phase || 8 N.m LXM32.D30N4 10 A, 480 V, three phase || 7.8 N.m LXM05AD42M3X, 200...240 V, three phase || 7.8 N.m LXM05CD28M2, 200...240 V, single phase || 7.8 N.m LXM05AD28M2, 200...240 V, single phase || 7.8 N.m LXM05BD28M2, 200...240 V, single phase || 7.8 N.m LXM05BD34N4, 380...480 V, three phase || 7.8 N.m LXM05BD42M3X, 200...240 V, three phase || 7.8 N.m LXM05CD34N4, 380...480 V, three phase || 7.8 N.m LXM05CD42M3X, 200...240 V, three phase
- Device Short Name
- BSH
- Electrical Connection
- straight connectors
- Holding Brake
- without
- Ip Degree Of Protection
- IP50 standard
- Maximum Mechanical Speed
- 6000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380...480 V, three phase || 2000 W LXM15MD28N4, 400 V, three phase || 2000 W LXM15MD40N4, 400 V, three phase || 2200 W LXM15LD17N4, 400 V, three phase || 2200 W LXM15MD28N4, 480 V, three phase || 2200 W LXM15MD40N4, 480 V, three phase || 2600 W LXM32.D30N4 10 A, 480 V, three phase || 2300 W LXM15LD17N4, 480 V, three phase || 1100 W LXM05AD28M2, 200...240 V, single phase || 1100 W LXM05BD28M2, 200...240 V, single phase || 1100 W LXM05CD28M2, 200...240 V, single phase || 1100 W LXM05AD42M3X, 200...240 V, three phase || 1100 W LXM05BD42M3X, 200...240 V, three phase || 1100 W LXM05CD42M3X, 200...240 V, three phase || 1300 W LXM15LD28M3, 230 V, three phase
- Nominal Speed
- 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 2000 rpm LXM15LD28M3, 230 V, three phase || 2500 rpm LXM15LD17N4, 230 V, three phase || 2500 rpm LXM15LD21M3, 230 V, three phase || 3000 rpm LXM05AD34N4, 380...480 V, three phase || 3000 rpm LXM05BD34N4, 380...480 V, three phase || 3000 rpm LXM05CD34N4, 380...480 V, three phase || 4000 rpm LXM15MD28N4, 400 V, three phase || 4000 rpm LXM15MD40N4, 400 V, three phase || 4500 rpm LXM15MD28N4, 480 V, three phase || 4000 rpm LXM32.D30N4 10 A, 480 V, three phase || 4500 rpm LXM15MD40N4, 480 V, three phase || 4500 rpm LXM15LD17N4, 400 V, three phase || 6000 rpm LXM15LD17N4, 480 V, three phase || 1500 rpm LXM05AD28M2, 200...240 V, single phase || 1500 rpm LXM05BD28M2, 200...240 V, single phase || 1500 rpm LXM05CD28M2, 200...240 V, single phase || 1500 rpm LXM05AD42M3X, 200...240 V, three phase || 1500 rpm LXM05BD42M3X, 200...240 V, three phase
- Nominal Torque
- 6.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 5 N.m LXM15MD28N4, 400 V, three phase || 5 N.m LXM15MD40N4, 400 V, three phase || 5.7 N.m LXM05AD34N4, 380...480 V, three phase || 5.7 N.m LXM05BD34N4, 380...480 V, three phase || 5.7 N.m LXM05CD34N4, 380...480 V, three phase || 6 N.m LXM15LD17N4, 230 V, three phase || 6 N.m LXM15LD21M3, 230 V, three phase || 6.3 N.m LXM15LD28M3, 230 V, three phase || 6.73 N.m LXM05AD42M3X, 200...240 V, three phase || 6.73 N.m LXM05BD42M3X, 200...240 V, three phase || 6.3 N.m LXM32.D30N4 10 A, 480 V, three phase || 6.73 N.m LXM05CD42M3X, 200...240 V, three phase || 3.7 N.m LXM15LD17N4, 480 V, three phase || 6.73 N.m LXM05AD28M2, 200...240 V, single phase || 6.73 N.m LXM05BD28M2, 200...240 V, single phase || 6.73 N.m LXM05CD28M2, 200...240 V, single phase || 4.6 N.m LXM15MD28N4, 480 V, three phase || 4.6 N.m LXM15MD40N4, 480 V, three phase || 4.7 N.m LXM15LD17N4, 400 V, three phase
- Peak Stall Torque
- 28.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 19.69 N.m LXM15LD28M3, 230 V, three phase || 19.69 N.m LXM15MD28N4, 400 V, three phase || 19.69 N.m LXM15MD28N4, 480 V, three phase || 23.17 N.m LXM15MD40N4, 400 V, three phase || 23.17 N.m LXM15MD40N4, 480 V, three phase || 23.01 N.m LXM05AD34N4, 380...480 V, three phase || 23.17 N.m LXM05AD42M3X, 200...240 V, three phase || 23.01 N.m LXM05BD34N4, 380...480 V, three phase || 23.17 N.m LXM05BD42M3X, 200...240 V, three phase || 23.01 N.m LXM05CD34N4, 380...480 V, three phase || 28.3 N.m LXM32.D30N4 10 A, 480 V, three phase || 23.17 N.m LXM05CD42M3X, 200...240 V, three phase || 19.69 N.m LXM05AD28M2, 200...240 V, single phase || 19.69 N.m LXM05BD28M2, 200...240 V, single phase || 19.69 N.m LXM05CD28M2, 200...240 V, single phase || 15.5 N.m LXM15LD21M3, 230 V, three phase || 12.5 N.m LXM15LD17N4, 230 V, three phase || 12.5 N.m LXM15LD17N4, 400 V, three phase || 12.5 N.m LXM15LD17N4, 480 V, three phase
- Product Compatibility
- LXM05AD28M2 200...240 V single phase || LXM15LD17N4 480 V three phase || LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three phase || LXM15MD28N4 480 V three phase || LXM15MD40N4 400 V three phase || LXM15MD40N4 480 V three phase || LXM32.D30N4 400 V three phase || LXM05BD28M2 200...240 V single phase || LXM32.D30N4 480 V three phase || LXM05CD28M2 200...240 V single phase || LXM15LD21M3 230 V three phase || LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD17N4 230 V three phase || LXM15LD17N4 400 V three phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
Reviews
What our customers say
BBB 4.7
Rating they have quick great service and quick shipping!! would recommend doing business over and over!!
January 7 on
Great price and speedy delivery. I am certain, based on my first statement that if needed, customer support will be excellent
December 31 on
Great customer service, fast shipping. Nice to deal with a company that shows they care about their customers.
December 5 on
I got the part and it was exactly what i needed to get my dust collector up and running again! It was also at very reasonable price. Thanks!
December 4 on
Another great purchase from Williams Automation. You will have peace of mind knowing your getting authentic parts from Williams Automation. Very easy to work with and great customer service. Plus you get at a competitive price and not three times what it should be.
November 6 on
Exceptional customer service! They had the elusive part I required readily available and responded promptly to all my emails.
November 2 on
Great customer service. Had the hard to find parts I needed in stock. All emails answered promptly.
October 9 on
Had what I needed in stock, shipped fast and arrived within the time frame indicated. It was packaged securely.
August 28 on
Perfect purchase! The whole process was great, including the packaging and shipping. Finally a company who cares!
August 13 on
Great service and Best prices ! Very organized company and helpful too. Will definitely buy again
August 10 on
