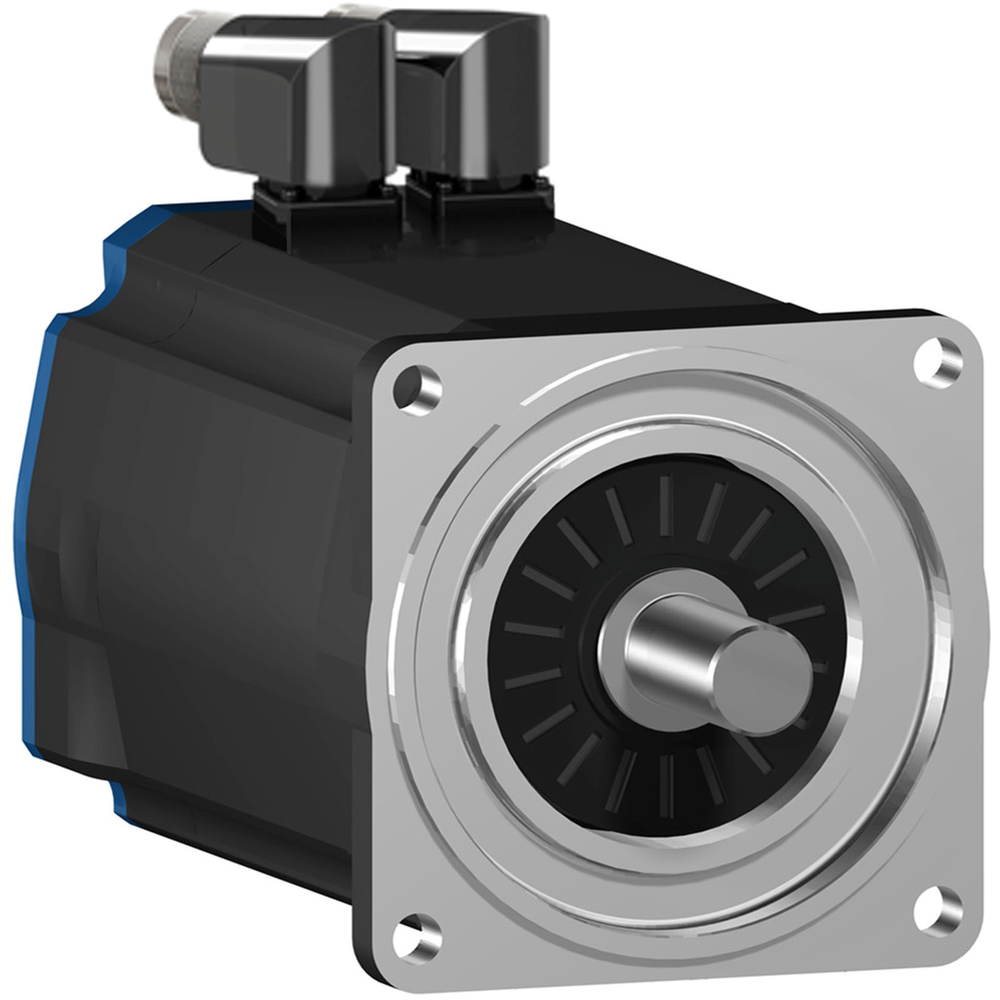

Schneider Electric BSH1002T11F2A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AC servo motor BSH, Lexium 05, 5.5N.m, 4000rpm, keyed shaft, with brake, IP50
Schneider Electric BSH1002T11F2A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 37 V/krpm 120 °C
- Brake Pull-In Power
- 18 W
- Centring Collar Depth
- 3.5 mm
- Centring Collar Diameter
- 95 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 2.51 W
- Continuous Stall Current
- 9.9 A
- Feedback Type
- single turn SinCos Hiperface
- Holding Torque
- 9 N.m holding brake
- Key Width
- 30 mm
- Length
- 235.5 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 31.2 A LXM15LD28M3 || 35.4 A LXM05AD42M3X || 35.4 A LXM05BD42M3X || 35.4 A LXM05CD42M3X || 30 A LXM32.D30M2
- Maximum Permanent Current
- 35.4 A
- Maximum Radial Force Fr
- 620 N 4000 rpm || 690 N 3000 rpm || 790 N 2000 rpm || 990 N 1000 rpm
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm
- Net Weight
- 6.3 kg
- Number Of Motor Poles
- 8
- Number Of Motor Stacks
- 2
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 15 || Lexium 32 || Lexium 05
- Rotor Inertia
- 2.928 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 19 mm
- Shaft Length
- 40 mm
- Stator Electrical Time Constant
- 5.36 ms 20 °C
- Stator Inductance
- 3 mH 20 °C
- Stator Resistance
- 0.56 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 0.59 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 5.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 5.5 N.m LXM15LD28M3, 230 V, three phase || 5.5 N.m LXM05AD42M3X, 200...240 V, three phase || 5.5 N.m LXM05BD42M3X, 200...240 V, three phase || 5.5 N.m LXM05CD42M3X, 200...240 V, three phase
- Device Short Name
- BSH
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- with
- Ip Degree Of Protection
- IP50 standard
- Maximum Mechanical Speed
- 6000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 1500 W LXM32.D30M2 10 A, 230 V, single phase || 1400 W LXM05AD42M3X, 200...240 V, three phase || 1400 W LXM05BD42M3X, 200...240 V, three phase || 1400 W LXM05CD42M3X, 200...240 V, three phase || 1700 W LXM15LD28M3, 230 V, three phase
- Nominal Speed
- 4000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase || 4000 rpm LXM15LD28M3, 230 V, three phase
- Nominal Torque
- 3.7 N.m LXM32.D30M2 10 A, 230 V, single phase || 4 N.m LXM15LD28M3, 230 V, three phase || 4.4 N.m LXM05AD42M3X, 200...240 V, three phase || 4.4 N.m LXM05BD42M3X, 200...240 V, three phase || 4.4 N.m LXM05CD42M3X, 200...240 V, three phase
- Peak Stall Torque
- 16.4 N.m LXM32.D30M2 10 A, 230 V, single phase || 11.59 N.m LXM15LD28M3, 230 V, three phase || 16 N.m LXM05AD42M3X, 200...240 V, three phase || 16 N.m LXM05BD42M3X, 200...240 V, three phase || 16 N.m LXM05CD42M3X, 200...240 V, three phase
- Product Compatibility
- LXM32.D30M2 230 V single phase || LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn
