Schneider Electric BSH1001T31F2A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

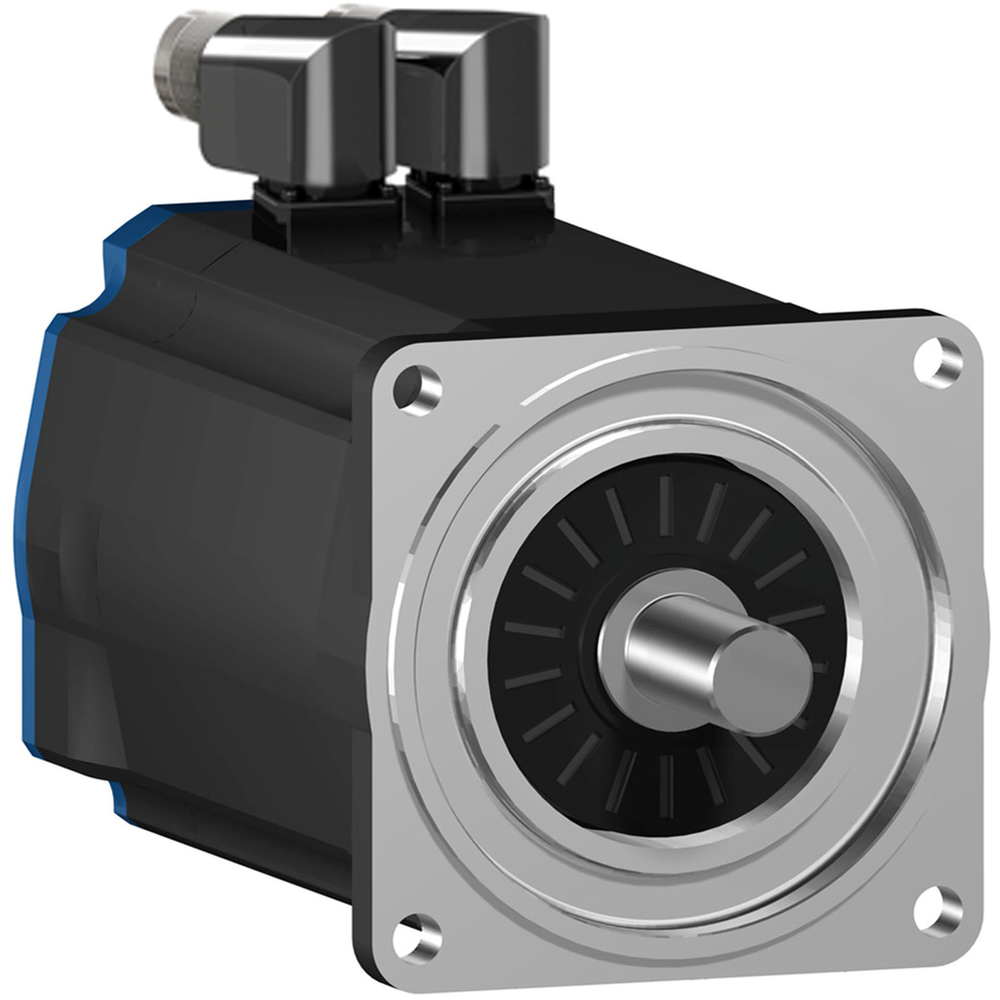

AC servo motor BSH, Lexium 05, 3.39N.m, 4000rpm, keyed shaft, with brake, IP65
Schneider Electric BSH1001T31F2A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 29 V/krpm 120 °C
- Brake Pull-In Power
- 18 W
- Centring Collar Depth
- 3.5 mm
- Centring Collar Diameter
- 95 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 1.6 W
- Continuous Stall Current
- 7.3 A
- Feedback Type
- single turn SinCos Hiperface
- Holding Torque
- 9 N.m holding brake
- Key Width
- 30 mm
- Length
- 199.5 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 18 A LXM32.D18M2 230 V || 25.1 A LXM05CD28F1 || 25.1 A LXM05CD28M2 || 25.1 A LXM05CD42M3X || 15 A LXM32.D30M2 115 V || 23 A LXM15LD28M3 || 25.1 A LXM05AD28F1 || 25.1 A LXM05AD28M2 || 25.1 A LXM05AD42M3X || 25.1 A LXM05BD28F1 || 25.1 A LXM05BD28M2 || 25.1 A LXM05BD42M3X
- Maximum Permanent Current
- 25.1 A
- Maximum Radial Force Fr
- 530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm
- Net Weight
- 4.8 kg
- Number Of Motor Poles
- 8
- Number Of Motor Stacks
- 1
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 15 || Lexium 05 || Lexium 32
- Rotor Inertia
- 2.018 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 19 mm
- Shaft Length
- 40 mm
- Stator Electrical Time Constant
- 4.6 ms 20 °C
- Stator Inductance
- 4 mH 20 °C
- Stator Resistance
- 0.87 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 0.45 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 3.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 3.4 N.m LXM05CD28M2, 200...240 V, single phase || 3.4 N.m LXM05CD42M3X, 200...240 V, three phase || 2.7 N.m LXM32.D18M2 6 A, 230 V, single phase || 3.39 N.m LXM15LD28M3, 230 V, three phase || 3.4 N.m LXM05AD28F1, 110...120 V, single phase || 3.4 N.m LXM05AD28M2, 200...240 V, single phase || 3.4 N.m LXM05AD42M3X, 200...240 V, three phase || 3.4 N.m LXM05BD28F1, 110...120 V, single phase || 3.4 N.m LXM05BD28M2, 200...240 V, single phase || 3.4 N.m LXM05BD42M3X, 200...240 V, three phase || 3.4 N.m LXM05CD28F1, 110...120 V, single phase
- Device Short Name
- BSH
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- with
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Maximum Mechanical Speed
- 6000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 700 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM05AD42M3X, 200...240 V, three phase || 900 W LXM05BD42M3X, 200...240 V, three phase || 900 W LXM05CD42M3X, 200...240 V, three phase || 900 W LXM32.D18M2 6 A, 230 V, single phase || 500 W LXM05AD28F1, 110...120 V, single phase || 500 W LXM05BD28F1, 110...120 V, single phase || 500 W LXM05CD28F1, 110...120 V, single phase || 900 W LXM05AD28M2, 200...240 V, single phase || 900 W LXM05BD28M2, 200...240 V, single phase || 900 W LXM05CD28M2, 200...240 V, single phase || 1150 W LXM15LD28M3, 230 V, three phase
- Nominal Speed
- 2500 rpm LXM32.D30M2 10 A, 115 V, single phase || 1500 rpm LXM05BD28F1, 110...120 V, single phase || 1500 rpm LXM05CD28F1, 110...120 V, single phase || 4000 rpm LXM15LD28M3, 230 V, three phase || 3000 rpm LXM05AD28M2, 200...240 V, single phase || 3000 rpm LXM05BD28M2, 200...240 V, single phase || 3000 rpm LXM05CD28M2, 200...240 V, single phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase || 4000 rpm LXM32.D18M2 6 A, 230 V, single phase || 1500 rpm LXM05AD28F1, 110...120 V, single phase
- Nominal Torque
- 2.75 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.9 N.m LXM05AD42M3X, 200...240 V, three phase || 2.9 N.m LXM05BD42M3X, 200...240 V, three phase || 2.9 N.m LXM05CD42M3X, 200...240 V, three phase || 2.9 N.m LXM05AD28M2, 200...240 V, single phase || 2.9 N.m LXM05BD28M2, 200...240 V, single phase || 2.9 N.m LXM05CD28M2, 200...240 V, single phase || 3.16 N.m LXM05AD28F1, 110...120 V, single phase || 3.16 N.m LXM05BD28F1, 110...120 V, single phase || 3.16 N.m LXM05CD28F1, 110...120 V, single phase || 2.2 N.m LXM32.D18M2 6 A, 230 V, single phase || 2.75 N.m LXM15LD28M3, 230 V, three phase
- Peak Stall Torque
- 6.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 8.5 N.m LXM05AD42M3X, 200...240 V, three phase || 8.5 N.m LXM05BD42M3X, 200...240 V, three phase || 8.5 N.m LXM05CD42M3X, 200...240 V, three phase || 8.5 N.m LXM05AD28F1, 110...120 V, single phase || 8.5 N.m LXM05AD28M2, 200...240 V, single phase || 8.5 N.m LXM05BD28F1, 110...120 V, single phase || 8.5 N.m LXM05BD28M2, 200...240 V, single phase || 8.5 N.m LXM05CD28F1, 110...120 V, single phase || 8.5 N.m LXM05CD28M2, 200...240 V, single phase || 7.5 N.m LXM32.D18M2 6 A, 230 V, single phase || 8.5 N.m LXM15LD28M3, 230 V, three phase
- Product Compatibility
- LXM05AD28F1 110...120 V single phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase || LXM05AD28M2 200...240 V single phase || LXM05BD28F1 110...120 V single phase || LXM05BD28M2 200...240 V single phase || LXM05CD28F1 110...120 V single phase || LXM05CD28M2 200...240 V single phase || LXM32.D30M2 115 V single phase || LXM32.D18M2 230 V single phase || LXM05AD42M3X 200...240 V three phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn
