Schneider Electric BSH0703P11A1A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

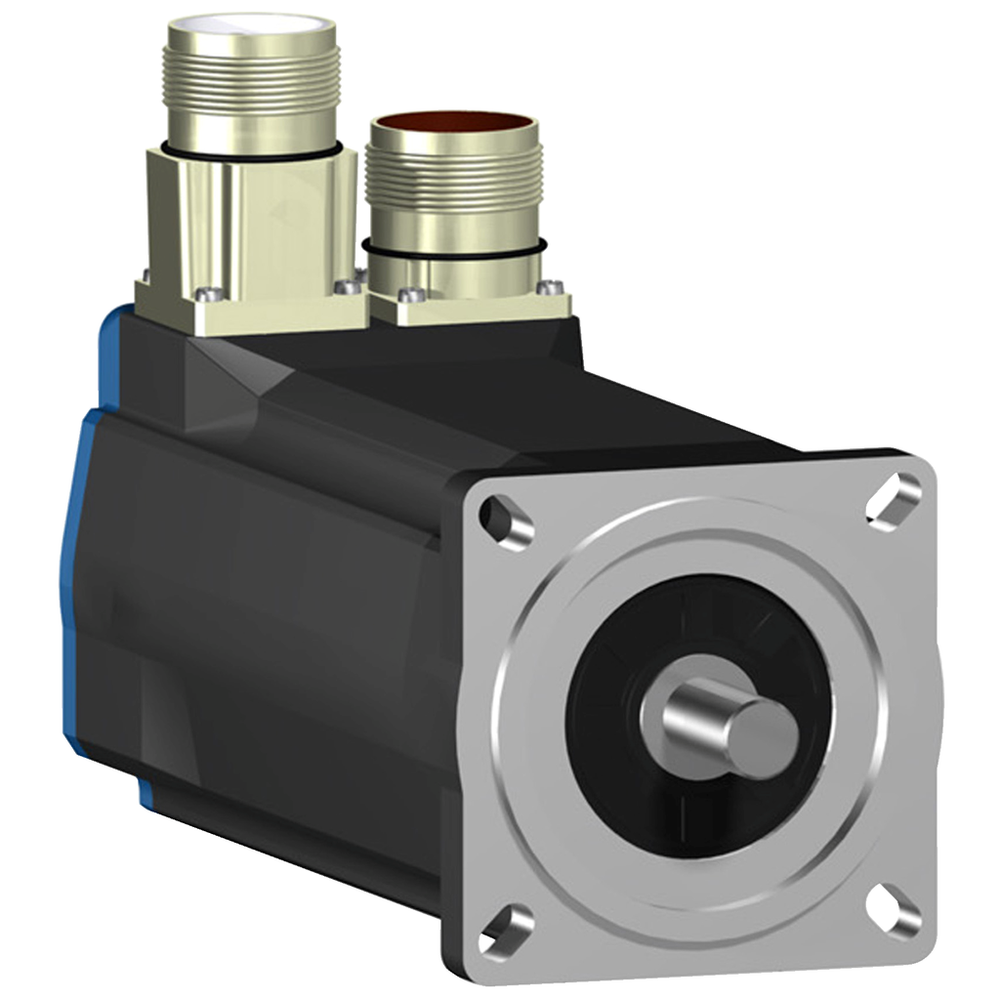

AC servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, keyed shaft, without brake, IP50
Schneider Electric BSH0703P11A1A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 49 V/krpm 120 °C
- Centring Collar Depth
- 2.5 mm
- Centring Collar Diameter
- 60 mm
- Circle Diameter Of The Mounting Holes
- 82 mm
- Continuous Power
- 1.7 W
- Continuous Stall Current
- 4.1 A
- Feedback Type
- single turn SinCos Hiperface
- Key Width
- 20 mm
- Length
- 220 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 15.2 A LXM15LD13M3 || 17 A LXM05BD17M2 || 17 A LXM05BD28M2 || 17 A LXM05BD17M3X || 17 A LXM05BD22N4 || 17 A LXM05CD17M2 || 17 A LXM05CD28M2 || 17 A LXM05CD17M3X || 17 A LXM05CD22N4 || 17 A LXM32.D18N4 || 15.2 A LXM15LD21M3 || 15.2 A LXM15LD17N4 || 15.2 A LXM15LU60N4 || 15.2 A LXM15LD10N4 || 17 A LXM05AD17M2 || 17 A LXM05AD28M2 || 17 A LXM05AD17M3X || 17 A LXM05AD22N4
- Maximum Permanent Current
- 17 A
- Maximum Radial Force Fr
- 400 N 6000 rpm || 430 N 5000 rpm || 460 N 4000 rpm || 510 N 3000 rpm || 580 N 2000 rpm || 730 N 1000 rpm
- Motor Flange Size
- 70 mm
- Mounting Holes Diameter
- 5.5 mm
- Net Weight
- 3.62 kg
- Number Of Motor Poles
- 6
- Number Of Motor Stacks
- 3
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 32 || Lexium 05 || Lexium 15
- Rotor Inertia
- 0.58 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 14 mm
- Shaft Length
- 30 mm
- Stator Electrical Time Constant
- 4.82 ms 20 °C
- Stator Inductance
- 13 mH 20 °C
- Stator Resistance
- 2.7 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 0.78 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 2.83 N.m LXM15LD21M3, 230 V, single phase || 2.83 N.m LXM15LD17N4, 400 V, three phase || 2.83 N.m LXM15LD17N4, 480 V, three phase || 2.83 N.m LXM15LD21M3, 230 V, three phase || 2.8 N.m LXM05AD17M2, 200...240 V, single phase || 2.8 N.m LXM05AD17M3X, 200...240 V, three phase || 2.8 N.m LXM05AD22N4, 380...480 V, three phase || 2.8 N.m LXM05AD28M2, 200...240 V, single phase || 2.8 N.m LXM05BD17M2, 200...240 V, single phase || 2.8 N.m LXM05BD17M3X, 200...240 V, three phase || 2.8 N.m LXM05BD22N4, 380...480 V, three phase || 1.1 N.m LXM15LU60N4, 480 V, three phase || 2.8 N.m LXM05BD28M2, 200...240 V, single phase || 2.8 N.m LXM05CD17M2, 200...240 V, single phase || 2.8 N.m LXM05CD17M3X, 200...240 V, three phase || 2.8 N.m LXM05CD22N4, 380...480 V, three phase || 2.8 N.m LXM05CD28M2, 200...240 V, single phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase || 1.1 N.m LXM15LU60N4, 400 V, three phase || 1.5 N.m LXM15LU60N4, 230 V, three phase || 2.23 N.m LXM15LD13M3, 230 V, three phase || 2.4 N.m LXM15LD10N4, 230 V, three phase || 2.4 N.m LXM15LD10N4, 400 V, three phase || 2.4 N.m LXM15LD10N4, 480 V, three phase || 2.83 N.m LXM15LD17N4, 230 V, three phase
- Device Short Name
- BSH
- Electrical Connection
- straight connectors
- Holding Brake
- without
- Ip Degree Of Protection
- IP50 standard
- Maximum Mechanical Speed
- 8000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 750 W LXM05AD17M2, 200...240 V, single phase || 1400 W LXM15LD17N4, 480 V, three phase || 1500 W LXM15LD10N4, 480 V, three phase || 350 W LXM15LU60N4, 230 V, three phase || 700 W LXM15LD13M3, 230 V, three phase || 700 W LXM15LU60N4, 400 V, three phase || 750 W LXM05AD17M3X, 200...240 V, three phase || 750 W LXM05AD22N4, 380...480 V, three phase || 750 W LXM05BD17M3X, 200...240 V, three phase || 750 W LXM05BD22N4, 380...480 V, three phase || 750 W LXM05CD17M3X, 200...240 V, three phase || 750 W LXM05AD28M2, 200...240 V, single phase || 750 W LXM05CD22N4, 380...480 V, three phase || 750 W LXM15LD10N4, 230 V, three phase || 750 W LXM15LD17N4, 230 V, three phase || 750 W LXM15LD21M3, 230 V, three phase || 950 W LXM15LU60N4, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase || 750 W LXM05BD17M2, 200...240 V, single phase || 750 W LXM05BD28M2, 200...240 V, single phase || 750 W LXM05CD17M2, 200...240 V, single phase || 750 W LXM05CD28M2, 200...240 V, single phase || 750 W LXM15LD21M3, 230 V, single phase || 1250 W LXM15LD10N4, 400 V, three phase || 1300 W LXM15LD17N4, 400 V, three phase
- Nominal Speed
- 3000 rpm LXM15LD13M3, 230 V, three phase || 8000 rpm LXM15LU60N4, 480 V, three phase || 3000 rpm LXM15LD10N4, 230 V, three phase || 6000 rpm LXM15LD10N4, 400 V, three phase || 3000 rpm LXM05AD28M2, 200...240 V, single phase || 3000 rpm LXM05BD28M2, 200...240 V, single phase || 3000 rpm LXM05CD28M2, 200...240 V, single phase || 3000 rpm LXM15LD21M3, 230 V, single phase || 3000 rpm LXM05AD22N4, 380...480 V, three phase || 3000 rpm LXM05BD22N4, 380...480 V, three phase || 3000 rpm LXM05CD22N4, 380...480 V, three phase || 3000 rpm LXM05AD17M2, 200...240 V, single phase || 3000 rpm LXM15LD17N4, 230 V, three phase || 3000 rpm LXM15LD21M3, 230 V, three phase || 6000 rpm LXM15LD17N4, 400 V, three phase || 6000 rpm LXM15LU60N4, 400 V, three phase || 7000 rpm LXM15LD17N4, 480 V, three phase || 5000 rpm LXM32.D18N4 6 A, 400 V, three phase || 5000 rpm LXM32.D18N4 6 A, 480 V, three phase || 3000 rpm LXM05BD17M2, 200...240 V, single phase || 3000 rpm LXM05CD17M2, 200...240 V, single phase || 3000 rpm LXM05AD17M3X, 200...240 V, three phase || 3000 rpm LXM05BD17M3X, 200...240 V, three phase || 3000 rpm LXM05CD17M3X, 200...240 V, three phase || 3000 rpm LXM15LU60N4, 230 V, three phase || 8000 rpm LXM15LD10N4, 480 V, three phase
- Nominal Torque
- 2.4 N.m LXM05AD17M2, 200...240 V, single phase || 1.12 N.m LXM15LU60N4, 480 V, three phase || 1.8 N.m LXM15LD10N4, 480 V, three phase || 1.96 N.m LXM15LD17N4, 480 V, three phase || 2 N.m LXM15LD10N4, 400 V, three phase || 2 N.m LXM15LD17N4, 400 V, three phase || 2.23 N.m LXM15LD13M3, 230 V, three phase || 2.4 N.m LXM05AD17M3X, 200...240 V, three phase || 2.4 N.m LXM05AD22N4, 380...480 V, three phase || 2.4 N.m LXM05BD17M3X, 200...240 V, three phase || 2.4 N.m LXM05BD22N4, 380...480 V, three phase || 2.4 N.m LXM05AD28M2, 200...240 V, single phase || 2.4 N.m LXM05CD17M3X, 200...240 V, three phase || 2.4 N.m LXM05CD22N4, 380...480 V, three phase || 2.4 N.m LXM15LD10N4, 230 V, three phase || 2.4 N.m LXM15LD17N4, 230 V, three phase || 2.4 N.m LXM15LD21M3, 230 V, three phase || 2.44 N.m LXM32.D18N4 6 A, 400 V, three phase || 2.44 N.m LXM32.D18N4 6 A, 480 V, three phase || 2.4 N.m LXM05BD17M2, 200...240 V, single phase || 2.4 N.m LXM05BD28M2, 200...240 V, single phase || 2.4 N.m LXM05CD17M2, 200...240 V, single phase || 2.4 N.m LXM05CD28M2, 200...240 V, single phase || 2.4 N.m LXM15LD21M3, 230 V, single phase || 1.12 N.m LXM15LU60N4, 230 V, three phase || 1.12 N.m LXM15LU60N4, 400 V, three phase
- Peak Stall Torque
- 5.99 N.m LXM15LD21M3, 230 V, single phase || 3.3 N.m LXM15LU60N4, 230 V, three phase || 6 N.m LXM15LD13M3, 230 V, three phase || 5.3 N.m LXM15LD10N4, 230 V, three phase || 5.3 N.m LXM15LD10N4, 400 V, three phase || 5.3 N.m LXM15LD10N4, 480 V, three phase || 7.71 N.m LXM15LD17N4, 230 V, three phase || 7.71 N.m LXM15LD17N4, 400 V, three phase || 7.71 N.m LXM15LD17N4, 480 V, three phase || 9.28 N.m LXM15LD21M3, 230 V, three phase || 7.16 N.m LXM05AD17M3X, 200...240 V, three phase || 7.16 N.m LXM05AD17M2, 200...240 V, single phase || 8.75 N.m LXM05AD22N4, 380...480 V, three phase || 7.16 N.m LXM05BD17M3X, 200...240 V, three phase || 8.75 N.m LXM05BD22N4, 380...480 V, three phase || 7.16 N.m LXM05CD17M3X, 200...240 V, three phase || 8.75 N.m LXM05CD22N4, 380...480 V, three phase || 11.3 N.m LXM32.D18N4 6 A, 400 V, three phase || 11.3 N.m LXM32.D18N4 6 A, 480 V, three phase || 10.3 N.m LXM05AD28M2, 200...240 V, single phase || 7.16 N.m LXM05BD17M2, 200...240 V, single phase || 10.3 N.m LXM05BD28M2, 200...240 V, single phase || 7.16 N.m LXM05CD17M2, 200...240 V, single phase || 10.3 N.m LXM05CD28M2, 200...240 V, single phase || 3.3 N.m LXM15LU60N4, 480 V, three phase || 3.3 N.m LXM15LU60N4, 400 V, three phase
- Product Compatibility
- LXM05AD17M2 200...240 V single phase || LXM15LU60N4 400 V three phase || LXM15LU60N4 480 V three phase || LXM15LD10N4 400 V three phase || LXM05AD17M3X 200...240 V three phase || LXM05BD17M3X 200...240 V three phase || LXM05CD17M3X 200...240 V three phase || LXM15LD10N4 230 V three phase || LXM15LD10N4 480 V three phase || LXM15LD21M3 230 V three phase || LXM15LD17N4 230 V three phase || LXM05AD28M2 200...240 V single phase || LXM05AD22N4 380...480 V three phase || LXM05BD22N4 380...480 V three phase || LXM05CD22N4 380...480 V three phase || LXM15LD17N4 400 V three phase || LXM15LD17N4 480 V three phase || LXM32.D18N4 400 V three phase || LXM32.D18N4 480 V three phase || LXM05BD17M2 200...240 V single phase || LXM05BD28M2 200...240 V single phase || LXM05CD17M2 200...240 V single phase || LXM05CD28M2 200...240 V single phase || LXM15LD21M3 230 V single phase || LXM15LU60N4 230 V three phase || LXM15LD13M3 230 V three phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn
