Schneider Electric BSH0551P31A2A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

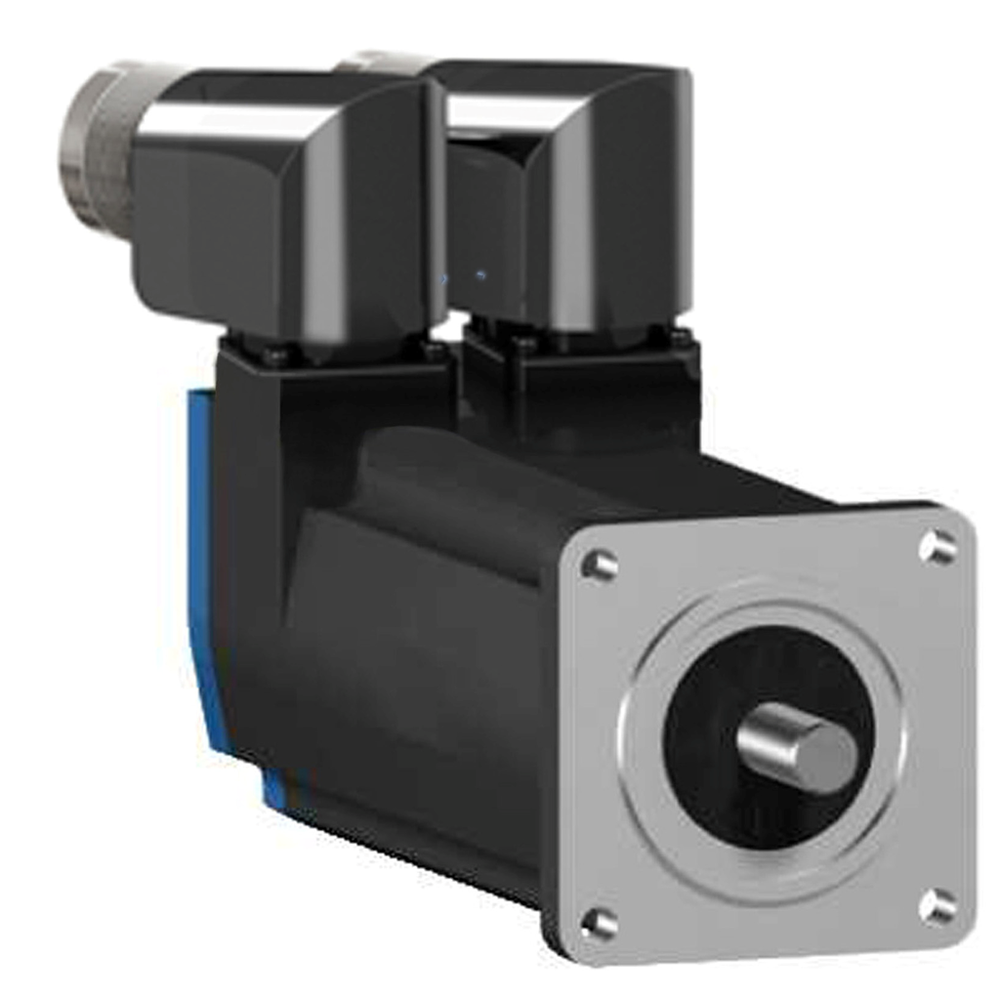

AC servo motor BSH, Lexium 15, 0.5N.m, 4000rpm, keyed shaft, without brake, IP65
Schneider Electric BSH0551P31A2A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 40 V/krpm 120 °C
- Centring Collar Depth
- 2 mm
- Centring Collar Diameter
- 40 mm
- Circle Diameter Of The Mounting Holes
- 63 mm
- Continuous Power
- 0.45 W
- Continuous Stall Current
- 0.73 A
- Feedback Type
- single turn SinCos Hiperface
- Key Width
- 12 mm
- Length
- 132.5 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 3.5 A LXM15LD13M3 || 3.5 A LXM15LU60N4 || 2.9 A LXM32.U60N4
- Maximum Permanent Current
- 2.9 A
- Maximum Radial Force Fr
- 170 N 8000 rpm || 180 N 7000 rpm || 190 N 6000 rpm || 200 N 5000 rpm || 220 N 4000 rpm || 240 N 3000 rpm || 270 N 2000 rpm || 340 N 1000 rpm
- Motor Flange Size
- 55 mm
- Mounting Holes Diameter
- 5.5 mm
- Net Weight
- 1.2 kg
- Number Of Motor Poles
- 6
- Number Of Motor Stacks
- 1
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 15 || Lexium 32
- Rotor Inertia
- 0.059 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 9 mm
- Shaft Length
- 20 mm
- Stator Electrical Time Constant
- 1.09 ms 20 °C
- Stator Inductance
- 71.5 mH 20 °C
- Stator Resistance
- 41.8 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 0.7 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 0.5 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.5 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.5 N.m LXM15LD13M3, 230 V, single phase || 0.5 N.m LXM15LU60N4, 230 V, three phase
- Device Short Name
- BSH
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Maximum Mechanical Speed
- 9000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 300 W LXM32.U60N4 1.5 A, 400 V, three phase || 300 W LXM32.U60N4 1.5 A, 480 V, three phase || 170 W LXM15LD13M3, 230 V, single phase || 170 W LXM15LU60N4, 230 V, three phase
- Nominal Speed
- 6000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 6000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 4000 rpm LXM15LD13M3, 230 V, single phase || 4000 rpm LXM15LU60N4, 230 V, three phase
- Nominal Torque
- 0.48 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.48 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.46 N.m LXM15LD13M3, 230 V, single phase || 0.46 N.m LXM15LU60N4, 230 V, three phase
- Peak Stall Torque
- 1.5 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.5 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.4 N.m LXM15LD13M3, 230 V, single phase || 1.4 N.m LXM15LU60N4, 230 V, three phase
- Product Compatibility
- LXM15LD13M3 230 V single phase || LXM15LU60N4 230 V three phase || LXM32.U60N4 400 V three phase || LXM32.U60N4 480 V three phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn
