Schneider Electric BSH0401P17A2A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

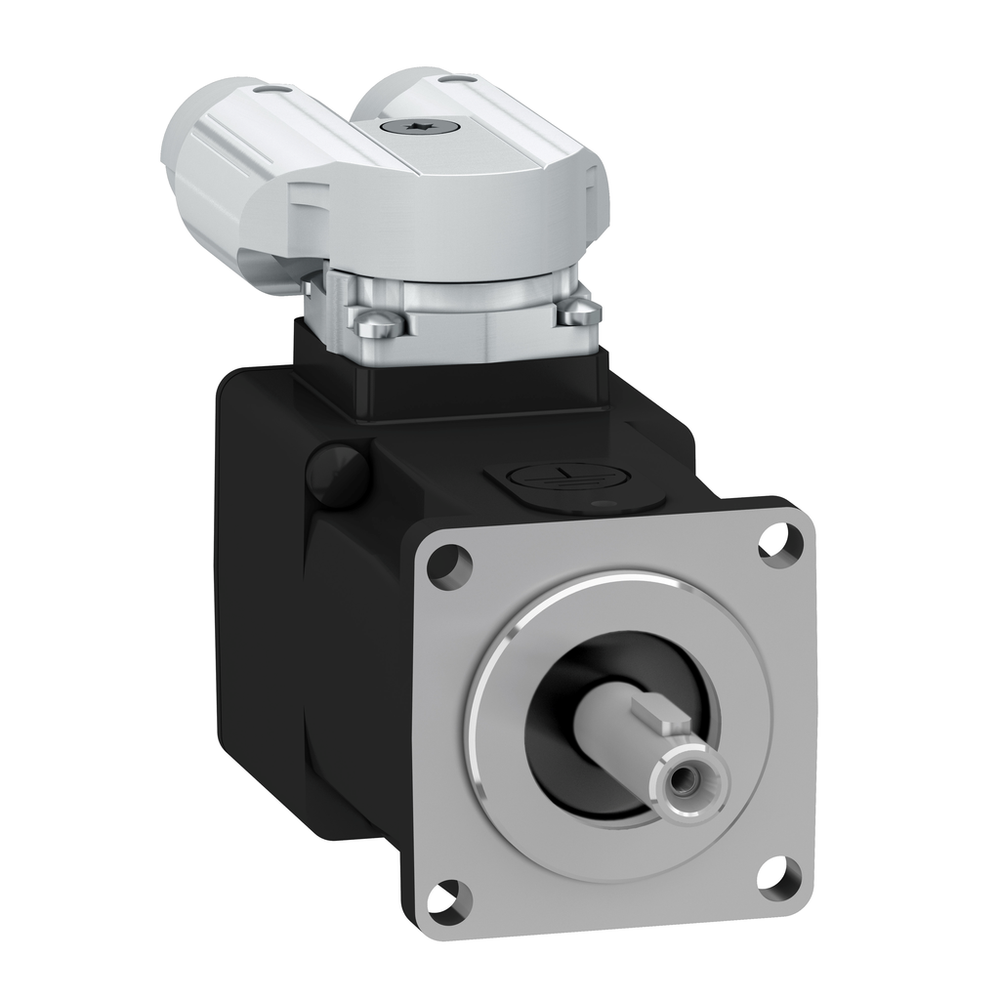

AC servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, keyed shaft, without brake, IP50
Schneider Electric BSH0401P17A2A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 13.6 V/krpm 20 °C
- Centring Collar Depth
- 2.5 mm
- Centring Collar Diameter
- 30 mm
- Circle Diameter Of The Mounting Holes
- 46 mm
- Continuous Power
- 220 W
- Continuous Stall Current
- 1.12 A
- Feedback Type
- multiturn SinCos Hiperface
- Key Width
- 12 mm
- Length
- 73.4 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 4.7 A LXM32.U60N4 480 V || 4.7 A LXM32.U60N4 400 V || 4.7 A LXM32.U45M2 230 V
- Maximum Permanent Current
- 1.12 A
- Motor Flange Size
- 40 mm
- Mounting Holes Diameter
- 4.5 mm
- Net Weight
- 0.4 kg
- Number Of Motor Poles
- 10
- Number Of Motor Stacks
- 1
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 32
- Rotor Inertia
- 0.0232 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 8 mm
- Shaft Length
- 25 mm
- Stator Electrical Time Constant
- 0.85 ms 20 °C
- Stator Inductance
- 14.6 mH 20 °C
- Stator Resistance
- 17.2 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Torque Constant
- 0.19 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 400 V
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Device Short Name
- BSH
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Ip Degree Of Protection
- IP50 standard
- Maximum Mechanical Speed
- 10000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 166 W LXM32.U60N4 1.5 A, 480 V, three phase || 166 W LXM32.U60N4 1.5 A, 400 V, three phase || 77 W LXM32.U45M2 1.5 A, 230 V, single phase
- Nominal Speed
- 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
- Nominal Torque
- 0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Peak Stall Torque
- 0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 32768 points/turn x 4096 turns
