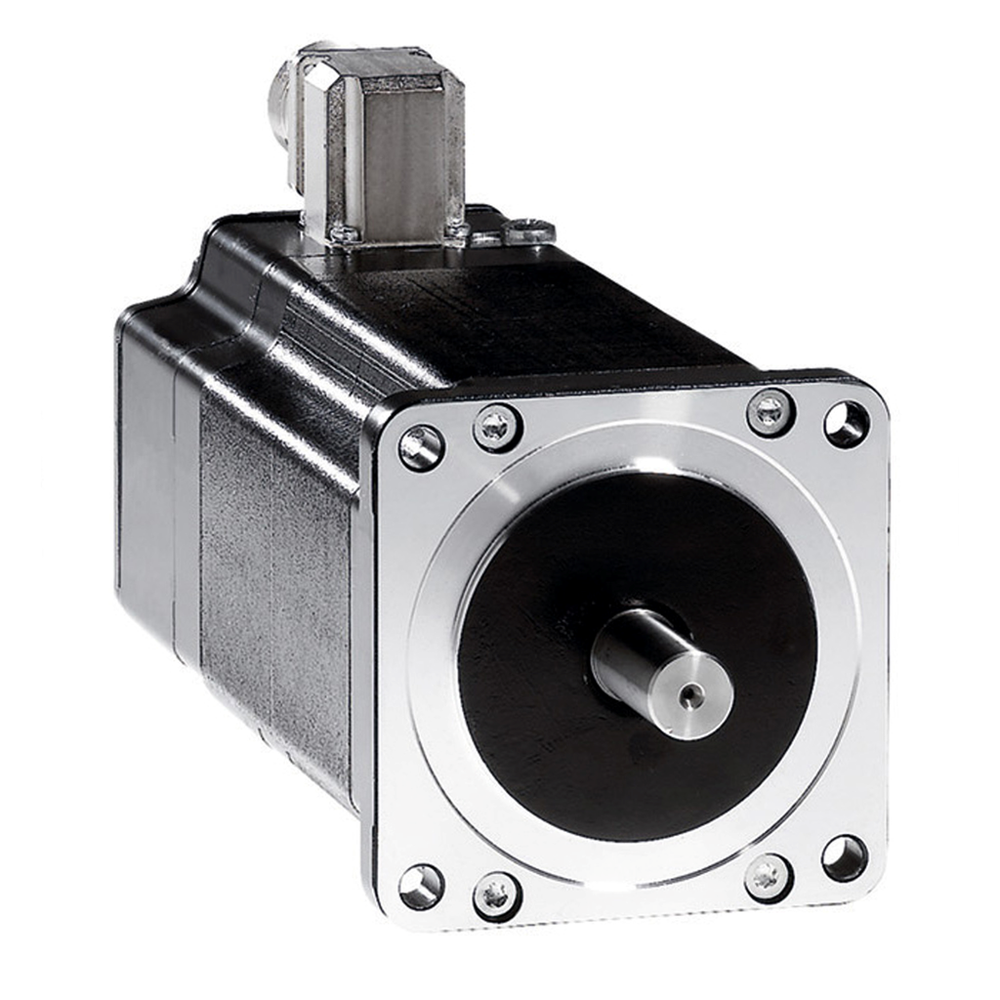

Schneider Electric BRS39BW461FCA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
3-phase stepper motor - 6.78 Nm - shaft Ø 14 mm - L=128 mm - with brake - conn
Schneider Electric BRS39BW461FCA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Error
- +/- 6 arc min
- Angular Acceleration
- 200000 rad/s²
- Centring Collar Depth
- 2 mm
- Circle Diameter Of The Mounting Holes
- 98.99 mm
- Continuous Stall Torque
- 5.78 N.m
- Electrical Connection
- connector
- Feedback Type
- single turn encoder
- Holding Brake
- with
- Holding Torque
- 6.78 N.m
- Line Rated Current
- 2.25 A
- Maximum Axial Force Fa
- 175 N tensile force) || 30 N force pressure)
- Maximum Radial Force Fr
- 110 N first shaft end) || 50 N second shaft end)
- Maximum Starting Frequency
- 5.3 kHz
- Mounting Holes Diameter
- 6.5 mm
- Net Weight
- 4.3 kg
- Nominal Torque
- 6 N.m
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 5.78 N.m
- Resistance
- 6.5 Ohm winding)
- Resolution
- 1000 points/turn || 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
- Rotor Inertia
- 3.3 kg.cm²
- Second Shaft
- without second shaft end
- Service Life In Hours
- 20000 h bearing)
- Shaft Diameter
- 14 mm
- Shaft End
- untapped
- Shaft Length
- 30 mm
- Speed Feedback Resolution
- 10000 points/turn
- Time Constant
- 10 ms
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-40 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP56 EN/IEC 60034-5
- Operating Altitude
- <= 3280.84 ft (1000 m) without power derating
- Relative Humidity
- 15-85 % without condensation
- Standards
- EN 50347 || IEC 60072-1
- Temperature Class
- F winding IEC/EN 60034-1
- Type Of Cooling
- natural convection
- Vibration Resistance
- 20 m/s² maximum || A EN/IEC 60034-14
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111101EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Centring Collar Diameter
- 60 mm
- Device Short Name
- BRS3
- Length
- 171 mm
- Maximum Mechanical Speed
- 3000 rpm
- Motor Flange Size
- 85 mm
- Motor Type
- 3-phase stepper motor
- Mounting Support
- flange
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion control motor
- Range Compatibility
- Lexium SD3
- Supply Voltage Limits
- 230-230 V AC || 325-325 V DC
