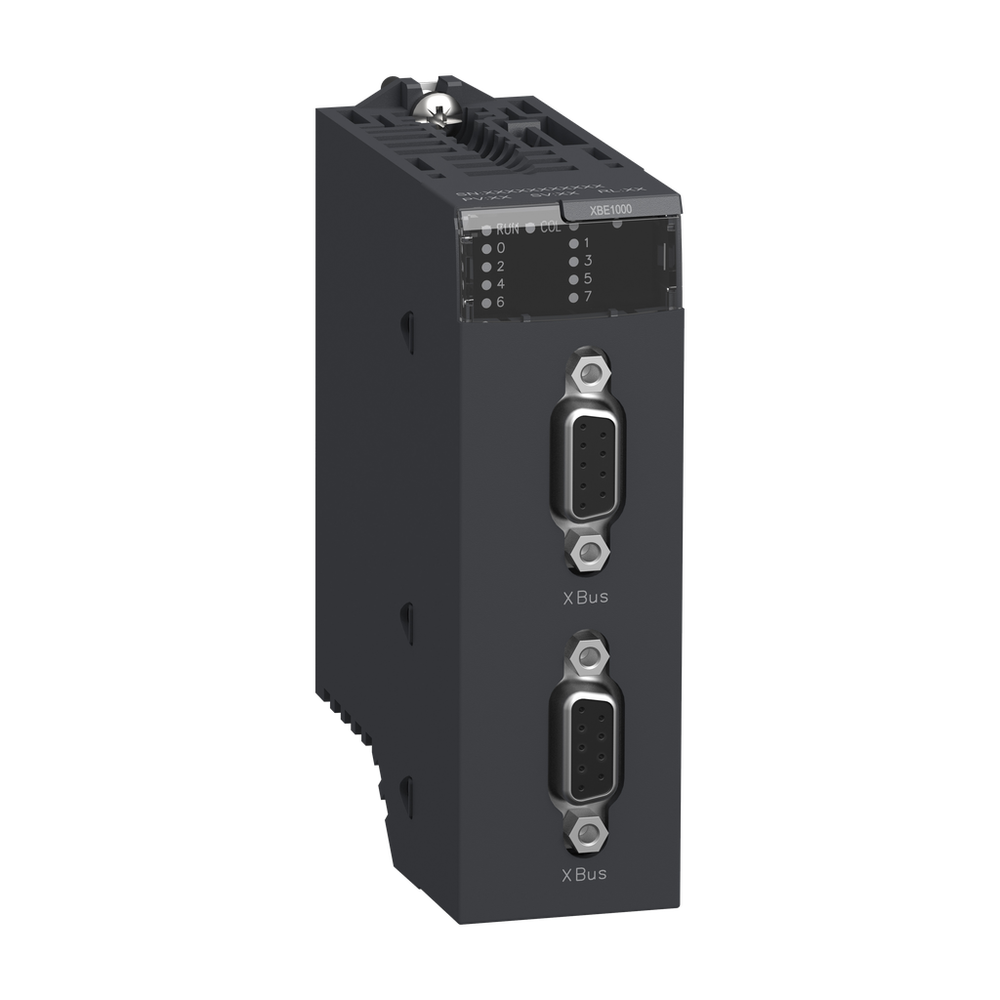

Schneider Electric BMXXBE1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).backplane expander, Modicon M340, for multiracks configuration
Schneider Electric BMXXBE1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 160 mA 24 V DC || 22 mA 3.3 V DC
- Electrical Connection
- 2 female connectors SUB-D 9
- Local Signalling
- 1 LED green operating status (RUN) bus || 1 LED red collision error (COL) rack || 4 LEDs green rack adresses status
- Module Format
- standard
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy
- Protective Treatment
- TC
- Relative Humidity
- 10-95 % without condensation
- Standards
- EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Accessory / Separate Part Category
- extension accessory
- Accessory / Separate Part Designation
- backplane expander
- Accessory / Separate Part Destination
- for multiracks configuration
- Accessory / Separate Part Type
- backplane
- Product Compatibility
- BMXXBP0600 || BMXXBP0400 || BMXXBP0800 || BMXXBP1200
- Range Of Product
- Modicon M340 automation platform
