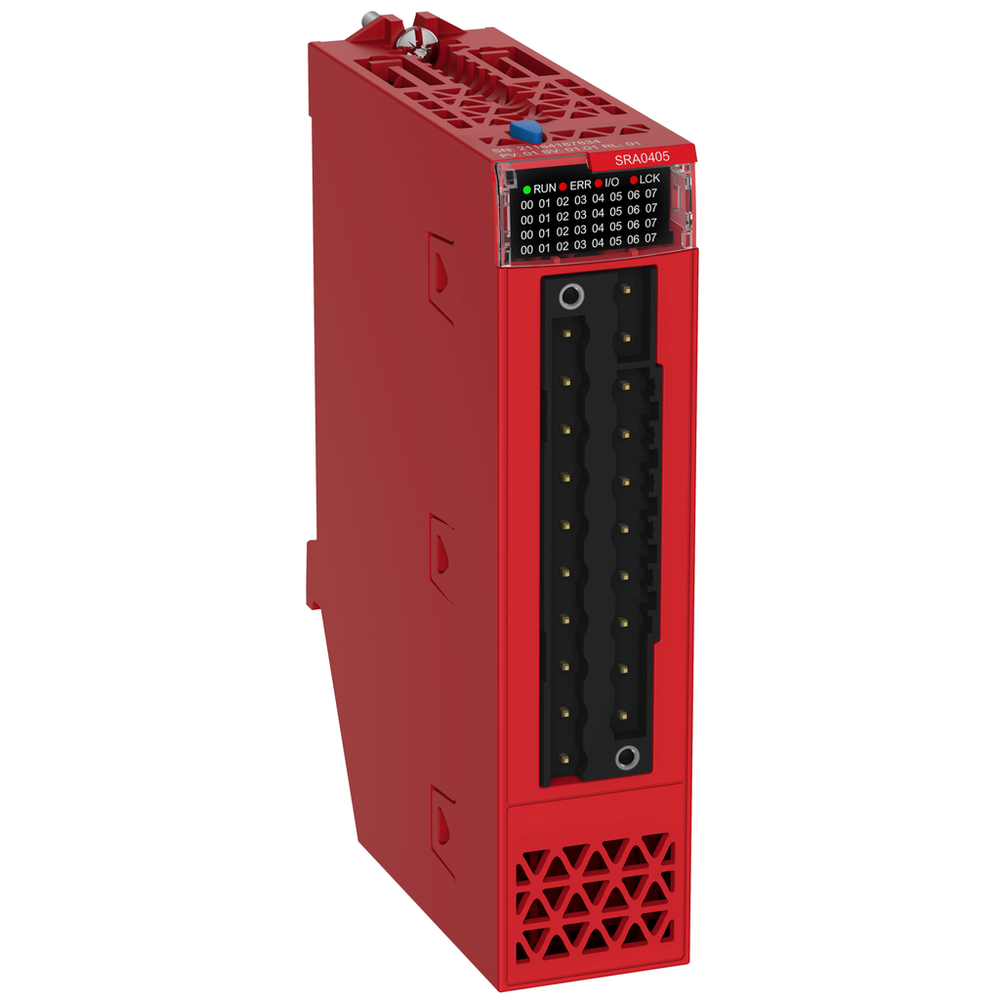

Schneider Electric BMXSRA0405
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 4 discrete relay outputs. It offers discrete output voltage ranges from 24V AC to 240V AC, 10V AC to 264V AC and 12V DC to 24V DC, 10V DC to 34V DC. It is an IP20 rated product. It weighs 0.145kg. It is to be used with BMXFTB2020 spring type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.safety relay output module, Modicon X80, 4 isolated outputs, 24 to 230V AC, 24V DC
Schneider Electric BMXSRA0405 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Durability
- AC-15 80000 cycles 250 VA 250 V -25-60 °C || AC-15 80000 cycles 500 VA 250 V -25-60 °C || AC-15 80000 cycles 750 VA 250 V -25-60 °C || AC-12 250000 cycles 250 VA 250 V -25-60 °C || AC-12 70000 cycles 500 VA 250 V -25-60 °C || AC-12 30000 cycles 1000 VA 250 V -25-60 °C || DC-13 80000 cycles 24 VA 24 V -25-60 °C || DC-13 50000 cycles 48 VA 24 V -25-60 °C || DC-13 30000 cycles 96 VA 24 V -25-60 °C || DC-12 1000000 cycles 24 VA 24 V -25-60 °C || DC-12 500000 cycles 48 VA 24 V -25-60 °C || DC-12 300000 cycles 120 VA 24 V -25-60 °C
- Insulation Resistance
- > 10 MOhm 500 V DC
- [Ith] Conventional Free Air Thermal Current
- 5 A
- Maximum Switching Voltage
- 230 V AC
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Current
- 10 mA 5 V DC
- Mtbf Reliability
- 624000 H
- Net Weight
- 0.145 kg
- Output Overload Protection
- use 1 fast blow fuse per channel or group of channel
- Output Overvoltage Protection
- use discharge diode on each output DC || use RC circuit on each output AC || use ZNO surge limiter on each output AC
- Output Short-Circuit Protection
- use 1 fast blow fuse per channel or group of channel
- Power Dissipation In W
- 3.9 W
- Protection Type
- external short-circuit protection || overvoltage protection, inductive AC || overvoltage protection, inductive DC || external overload protection
- Response Time On Output
- 12 ms activation || 6 ms deactivation
- Status Led
- 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
- Switching Frequency
- <= 50 Hz
- Typical Current Consumption
- 240 mA 3.3 V DC || 130 mA 24 V DC
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 2000 V AC 50/60 Hz 1 min
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 15 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Number
- 4 EN/IEC 61131-2
- Discrete Output Type
- relay
- Discrete Output Voltage
- 24...240 V 10...264 V AC || 12...24 V 10...34 V DC
- Product Or Component Type
- discrete output module
- Range Of Product
- Modicon X80
