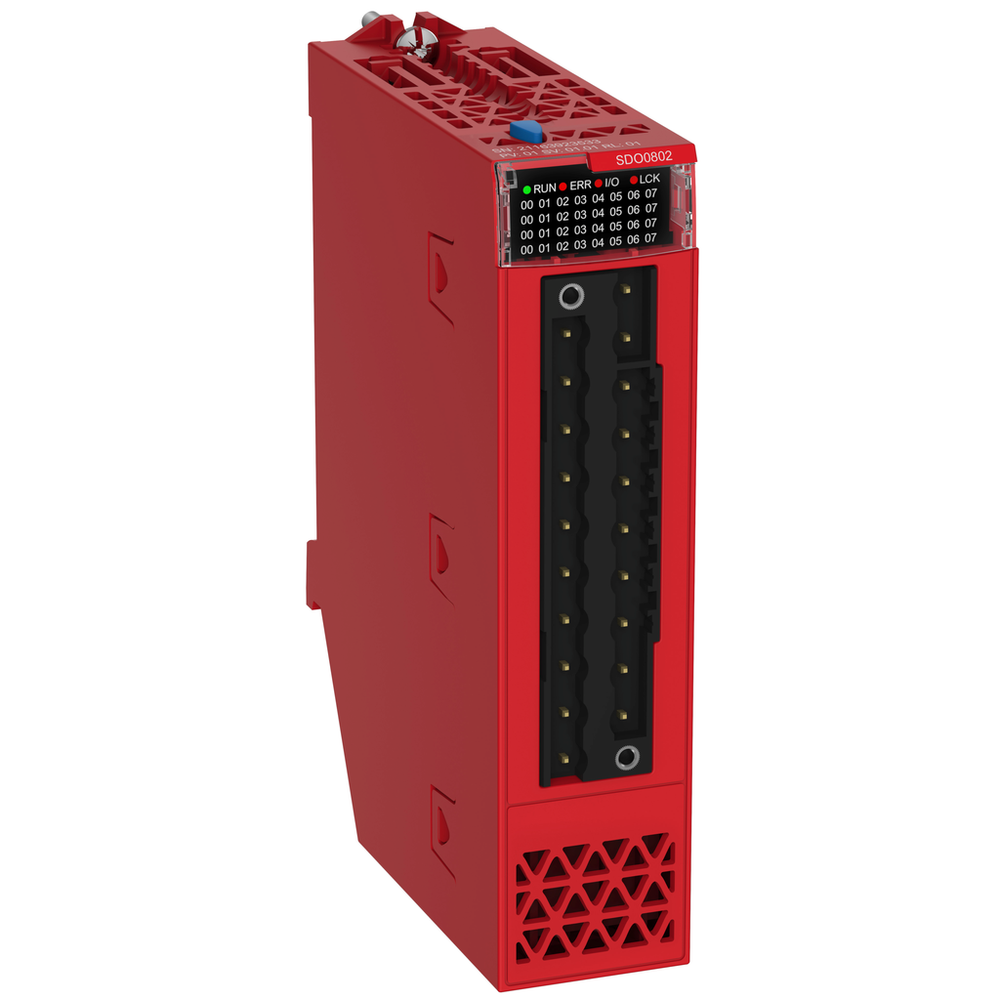

Schneider Electric BMXSDO0802
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 8 positive discrete output logic. It offers discrete output voltage ranges from 19V DC to 30V DC, 24V DC with solid state and not isolated discrete output. It is an IP20 rated product. It weighs 0.12kg. It is to be used with BMXFTB2010 screw clamp type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Schneider Electric BMXSDO0802 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Per Channel
- 0.625 A
- Insulation Resistance
- > 10 MOhm 500 V DC
- Load Impedance Ohmic
- >= 48 Ohm
- Maximum Current Per Module
- 10 A
- Maximum Leakage Current
- 0.5 mA at state 0
- Maximum Tungsten Load
- 6 W
- Maximum Voltage Drop
- <1.2 V at state 1
- Mtbf Reliability
- 383000 H
- Net Weight
- 0.12 kg
- Output Overload Protection
- with current limiter || with electronic circuit breaker 1.5 In < Id < 2 In
- Output Overvoltage Protection
- with transil diode
- Output Short-Circuit Protection
- with 2 A external fuse
- Paralleling Of Outputs
- yes : 2 maximum
- Power Dissipation In W
- 4.4 W
- Protection Type
- reverse polarity protection || overload protection || overvoltage protection || short-circuit protection
- Response Time On Output
- 1.2 ms
- Reverse Polarity Protection
- reverse mounted diode
- Status Led
- 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
- Switching Frequency
- 0.5/LI² Hz
- Typical Current Consumption
- 264 mA 3.3 V DC || 15 mA 24 V
- Voltage Detection Threshold
- < 14 V DC sensor fault || > 18 V DC sensor OK
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 15 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Current
- 0.5 A
- Discrete Output Logic
- positive
- Discrete Output Number
- 8 EN/IEC 61131-2
- Discrete Output Type
- solid state || not isolated
- Discrete Output Voltage
- 24 V 19...30 V DC
- Output Compatibility
- not IEC 61131-2 DC input || IEC 61131-2 type 3 DC input
- Product Or Component Type
- discrete output module
- Range Of Product
- Modicon X80
