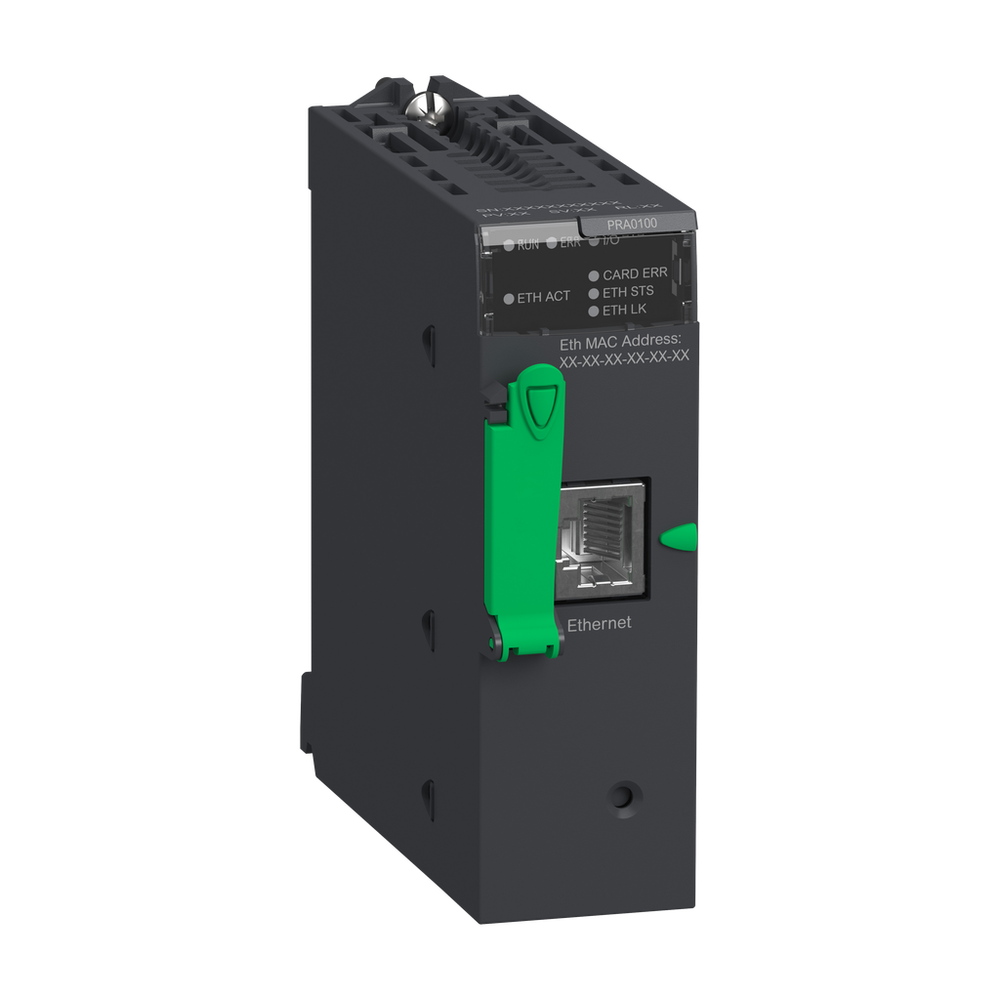

Schneider Electric BMXPRA0100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet
Schneider Electric BMXPRA0100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Application Structure
- 1 master task
- Average Consumption In Ma
- 95 mA
- Communication Port Protocol
- Modbus TCP
- Integrated Connection Type
- Ethernet/IP device network
- Local Signalling
- for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for external fault (I/O) 1 LED (red) || for activity on Ethernet network (ETH ACT) 1 LED (green) || for memory card fault (CARD ERR) 1 LED (red) || for Ethernet link diagnostics (STS) 1 LED (green) || for Ethernet network status (link) 1 LED (green)
- Marking
- CE
- Maximum Altitude Transport
- 3000 m
- Memory Capacity
- 448 kB internal || 96 kB removable
- Module Format
- standard
- Number Of Port
- 1
- Power Dissipation In W
- 2.3 W
- Product Compatibility
- 0-1024 discrete I/O module || 0-256 analog I/O module || 0-2 Ethernet module
- Realtime Clock
- with
- Relative Humidity
- 95-95 % without condensation
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- peripheral remote I/O adaptor
- Range Of Product
- Modicon X80
