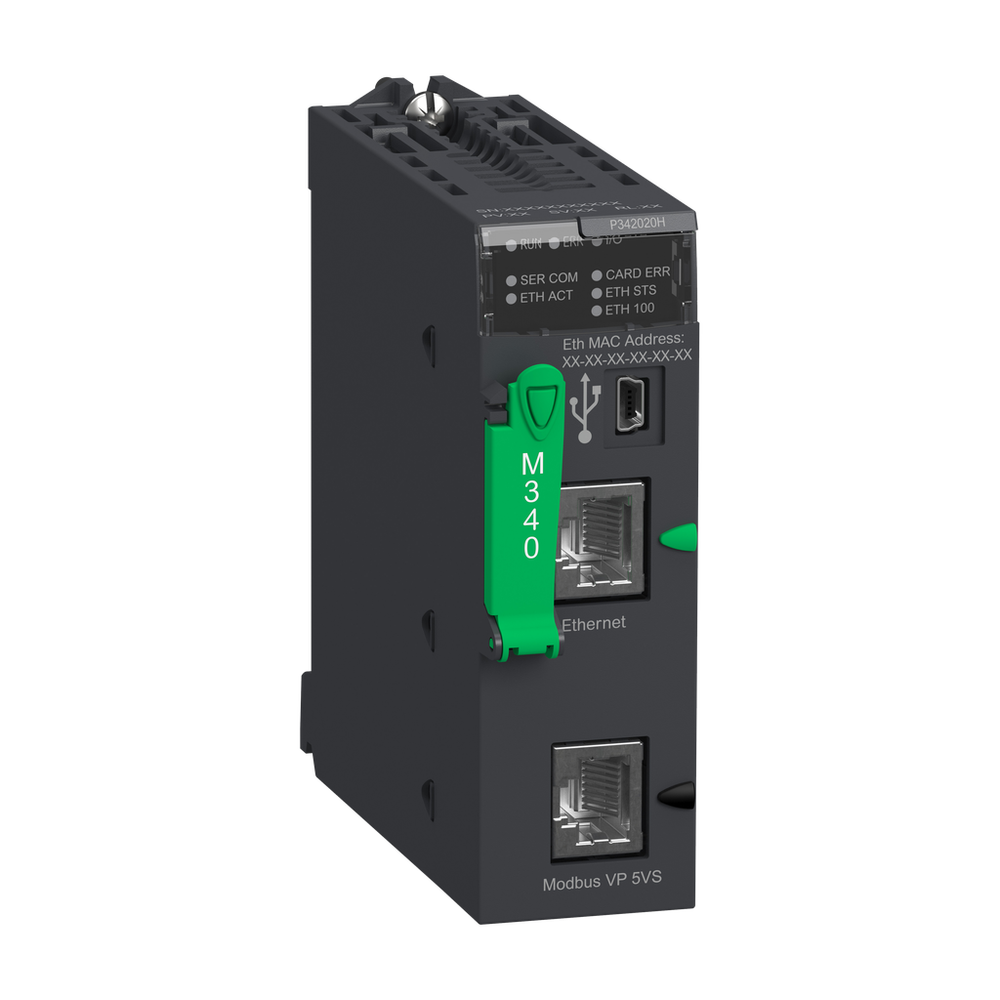

Schneider Electric BMXP342020H
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 92mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 256kb data, 4096kb, 3584kb program internal RAM. It weighs 0.205kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus, Ethernet, for severe environment
Schneider Electric BMXP342020H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Application Structure
- 64 event tasks || 1 periodic fast task || no auxiliary task || 1 cyclic/periodic master task
- Bus Length
- 0-10 m serial link non isolated character mode segment || 0-10 m serial link non isolated Modbus segment || 0-1000 m serial link isolated character mode segment || 0-1000 m serial link isolated Modbus segment || 0-15 m character mode point-to-point || 0-15 m Modbus point-to-point
- Communication Module Processor Capacity
- 2 Ethernet communication module || 4 AS-Interface module
- Communication Service
- bandwidth management, Ethernet TCP/IP || Data Editor, Ethernet TCP/IP || Modbus TCP messaging, Ethernet TCP/IP || Rack Viewer, Ethernet TCP/IP || SNMP network administrator, Ethernet TCP/IP
- Control Channels
- programmable loops
- Control Parameter
- one CRC on each frame (RTU) Modbus || one LRC on each frame (ASCII) character mode || one LRC on each frame (ASCII) Modbus
- Current Consumption
- 95 mA 24 V DC
- Default Size Of Object Areas
- 1024 %MWi internal words located internal data || 256 %KWi constant words located internal data || 512 %Mi located internal bits
- Execution Time Per Instruction
- 0.12 µs Boolean || 0.17 µs double-length words || 0.25 µs single-length words || 1.16 µs floating points
- Integrated Connection Type
- non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex || non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || USB port 12 Mbit/s || Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
- Marking
- CE
- Maximum Size Of Object Areas
- 256 kB unlocated internal data || 32634 %Mi located internal bits
- Maximum Tap Links Length
- <15 m serial link non isolated character mode segment || <15 m serial link non isolated Modbus segment || <40 m serial link isolated character mode segment || <40 m serial link isolated Modbus segment
- Memory Description
- supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data || internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols || supplied memory card (BMXRMS008MP) activation of standard web server, class B10
- Net Weight
- 0.205 kg
- Number Of Addresses
- 0-248 character mode || 0-248 Modbus
- Number Of Devices
- 2 point-to-point character mode || 2 point-to-point Modbus
- Number Of Devices Per Segment
- 0-32 character mode) || 0-32 Modbus)
- Number Of Instructions Per Ms
- 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 8.1 Kinst/ms 100 % Boolean
- Port Ethernet
- 10BASE-T/100BASE-TX
- Requests
- 1 K data bytes per request character mode || 252 data bytes per RTU request Modbus || 504 data bytes per ASCII request Modbus
- Status Led
- 1 LED (Green) activity on Ethernet network (ETH ACT) || 1 LED (Green) processor running (RUN) || 1 LED (Green) status of Ethernet network (ETH STS) || 1 LED (Red) data rate (ETH 100) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Red) memory card fault (CARD ERR) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Yellow) activity on Modbus (SER COM)
- Supply
- internal power supply via rack
- System Overhead
- 0.13 ms fast task || 0.7 ms master task
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Protective Treatment
- conformal coating
- Relative Humidity
- 10-95 % without condensation
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue I/O Processor Capacity
- 256 I/O multi-rack configuration || 66 I/O single-rack configuration
- Concept
- Transparent Ready || CANopen
- Discrete I/O Processor Capacity
- 1024 I/O multi-rack configuration || 704 I/O single-rack configuration
- Monitoring
- diagnostic counters Modbus || event counters Modbus
- Number Of Application Specific Channel
- 36
- Number Of Racks
- 4
- Number Of Slots
- 11
- Product Or Component Type
- processor module
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon M340 automation platform
